Rotated Hub Doubling Illustrated

Discussion in 'US Coins Forum' started by justafarmer, Dec 19, 2017.

  1. justafarmer

    justafarmer Senior Member

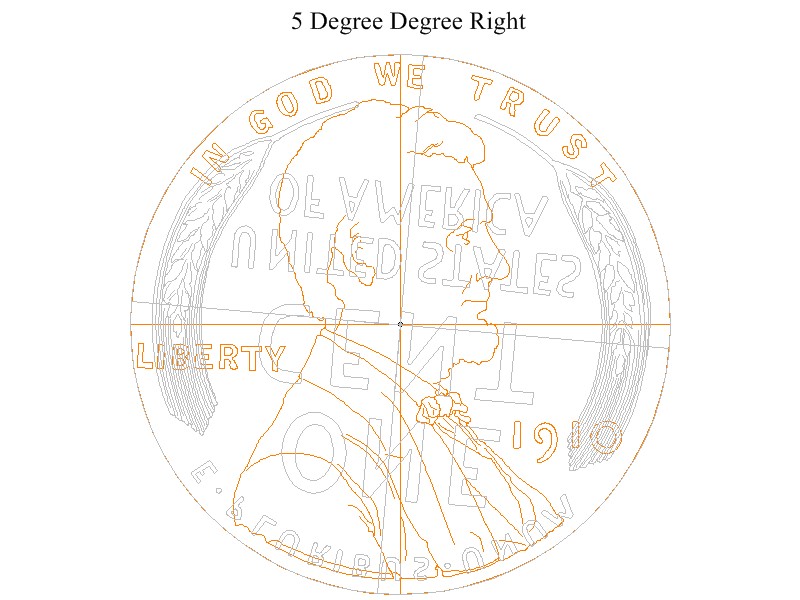

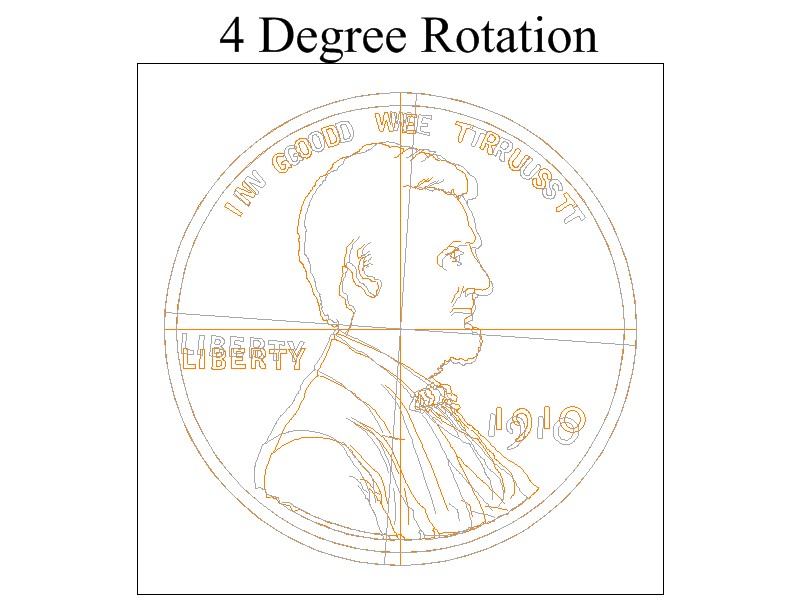

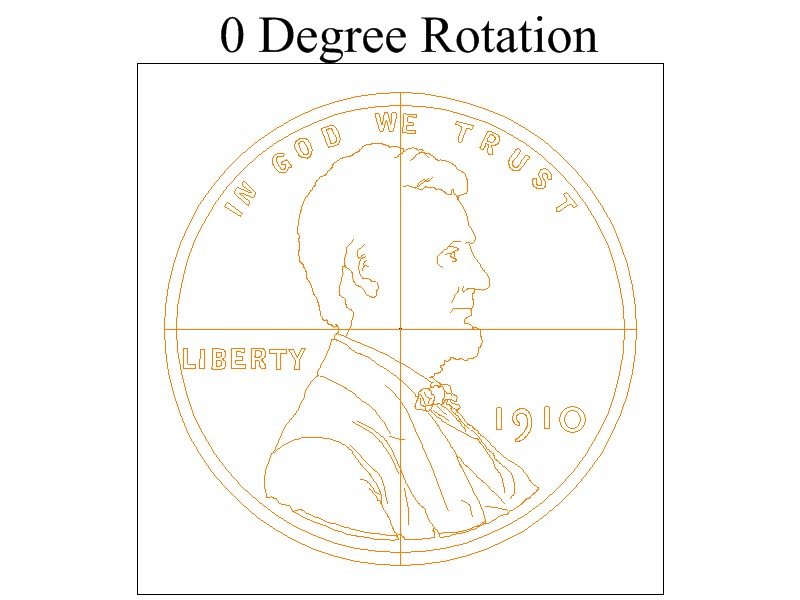

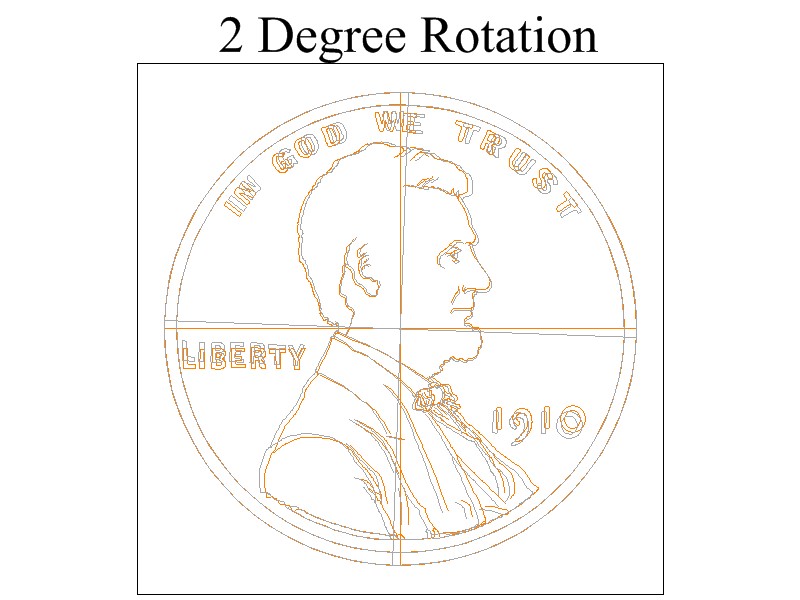

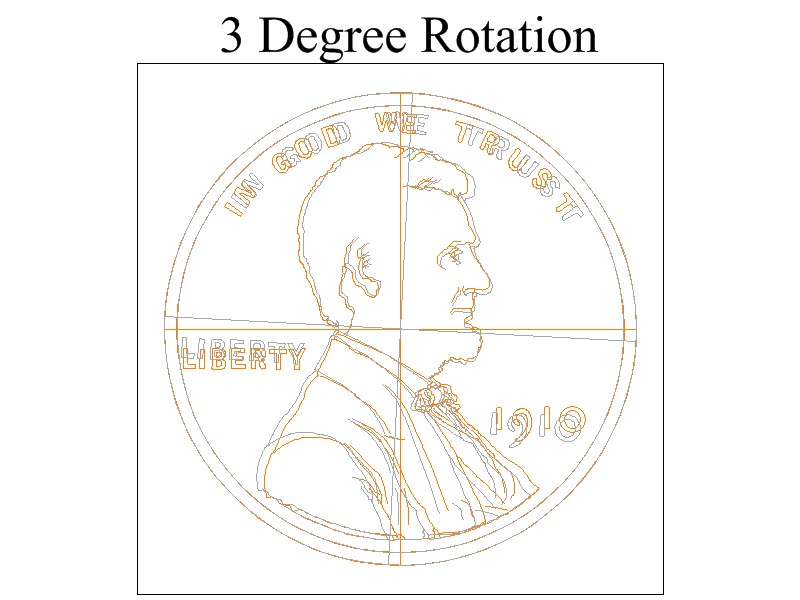

    The following images illustrate rotated Hub doubling with a centered pivot point with 1 Degree to 5 Degree rotation. 0 Degree.JPG 1 Degee.JPG 2 Degree.JPG 3 Degree.JPG 4 Degree.JPG 5 Degree.JPG

  2. Avatar

    Guest User Guest



    to hide this ad.
  3. alurid

    alurid Well-Known Member

    That 2 degrees reminded me of the 1969-S LMC, and the "55".

  4. physics-fan3.14

    physics-fan3.14 You got any more of them.... prooflikes?

    It would be a very interesting excercise to repeat this experiment for each of the different types of hub doubling. You show rotated hub doubling (around the center) here. Could you show us other types, and maybe explain the differences?

  5. justafarmer

    justafarmer Senior Member

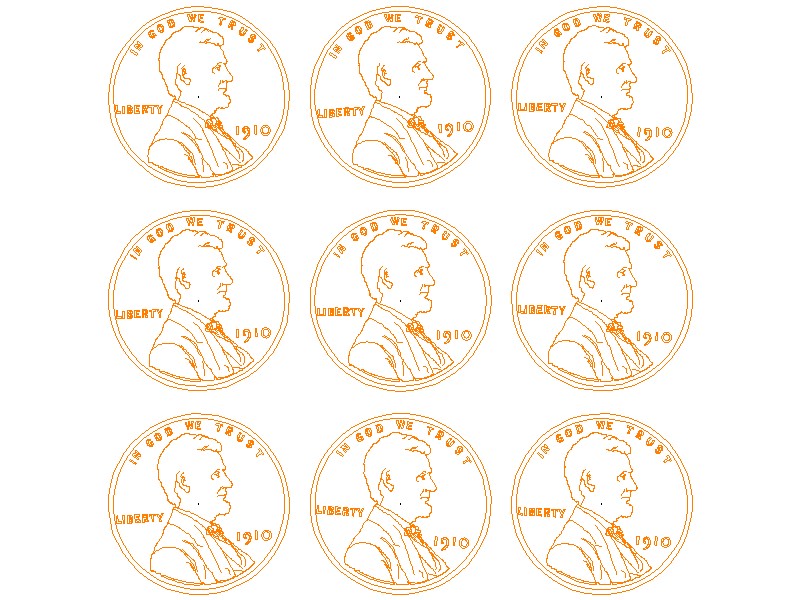

    Just a little test - that has no wrong answer. Which obverse in the following image is square? The one that best depicts the coin's design at the 12 o'clock position? Square.JPG

  6. paddyman98

    paddyman98 I'm a professional expert in specializing! Supporter

    Top right corner is square.

    Dynoking likes this.
  7. justafarmer

    justafarmer Senior Member

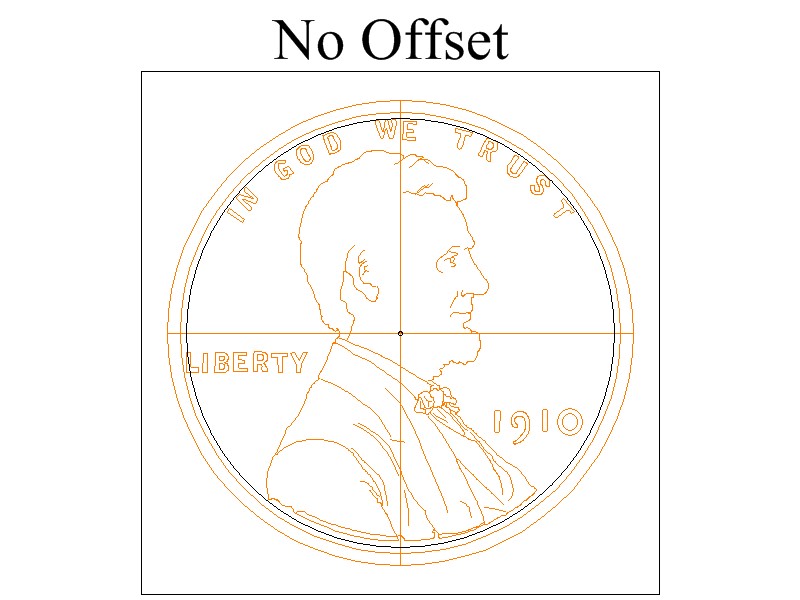

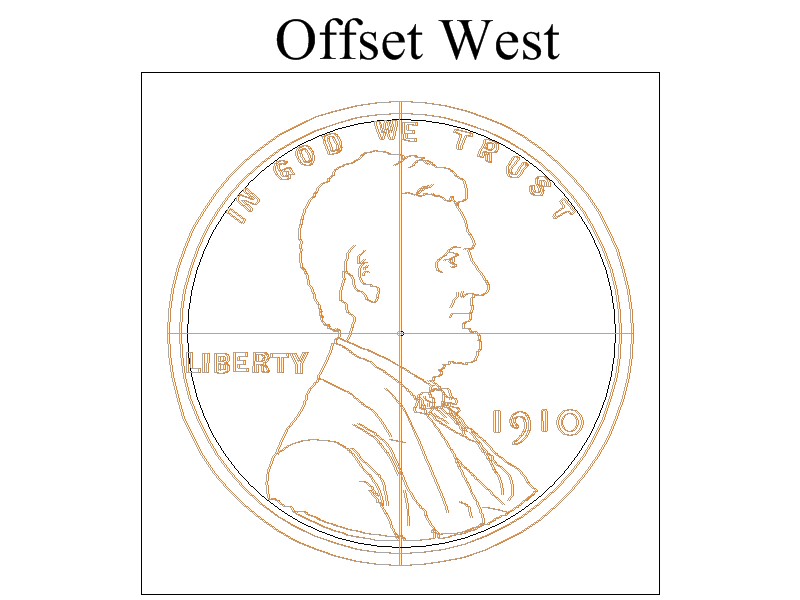

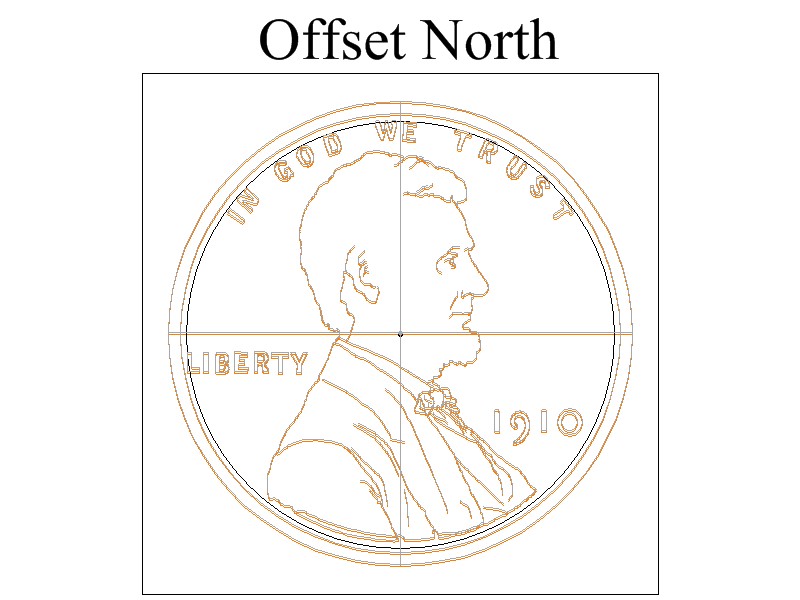

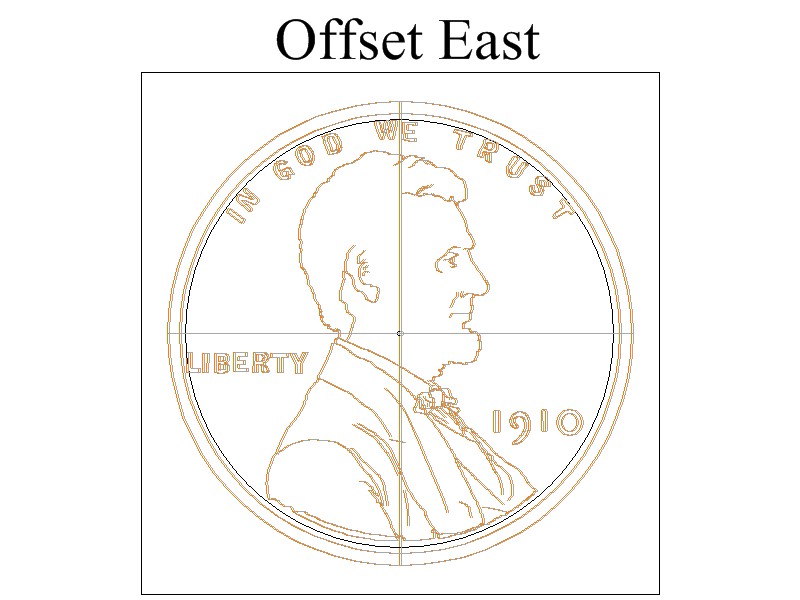

    Don't know if I can illustrate all use 2-D drawings. Following are images illustrating offset hub doubling with the offset equal to 1% of the radius of the black circle. No Offset.JPG Offset North.JPG Offset South.JPG Offset East.JPG Offset West.JPG

  8. justafarmer

    justafarmer Senior Member

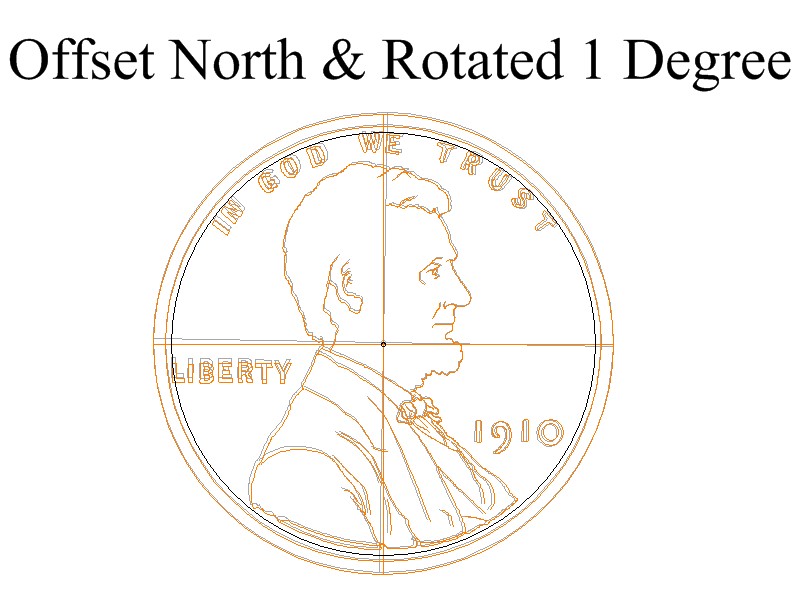

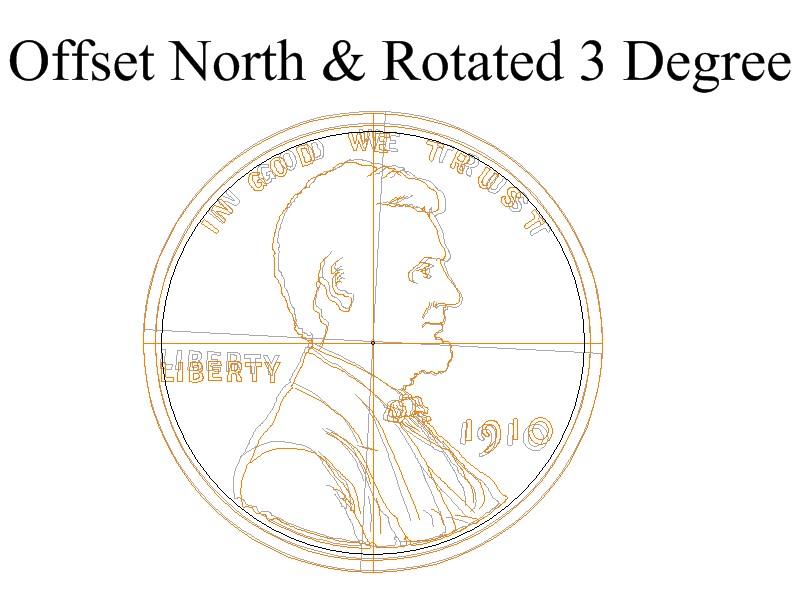

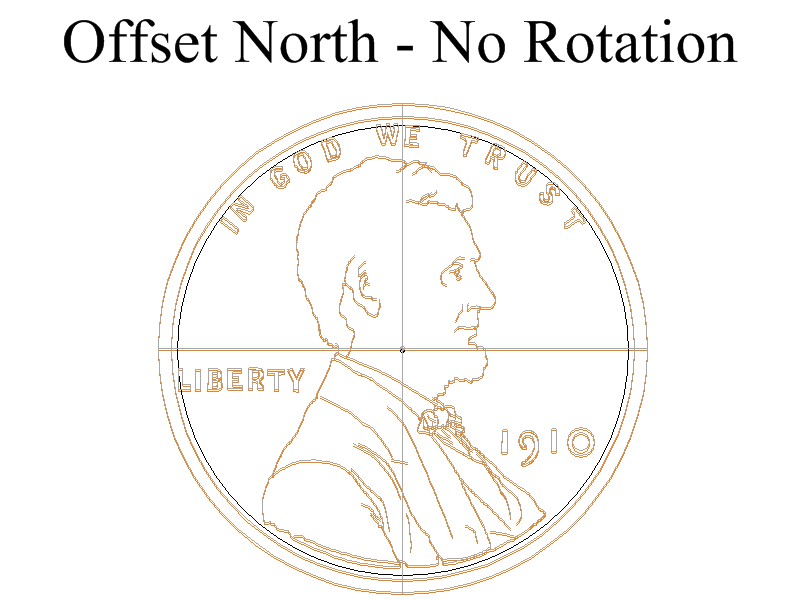

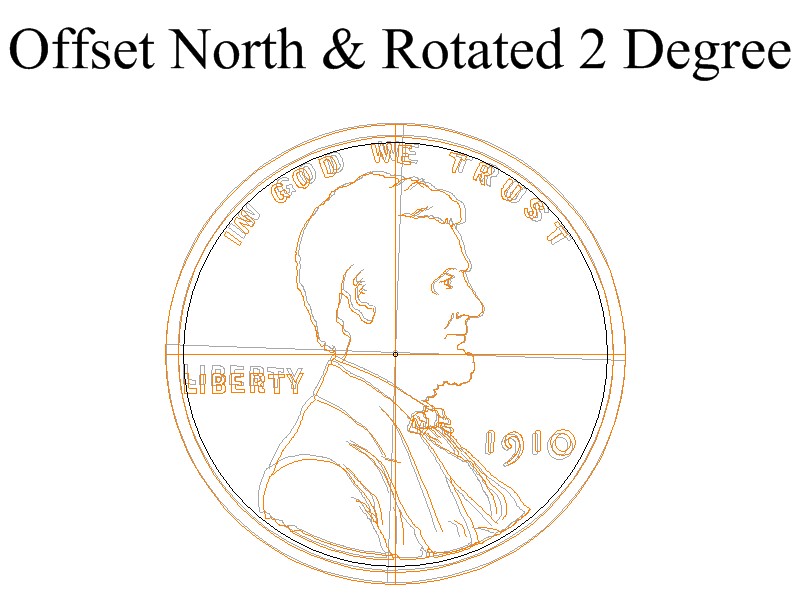

    A combination of offset and rotated hub doubling Offset rotated 0 degree.JPG Offset rotated 1 degree.JPG Offset rotated 2 degree.JPG Offset rotated 3 Degree.JPG .

  9. justafarmer

    justafarmer Senior Member

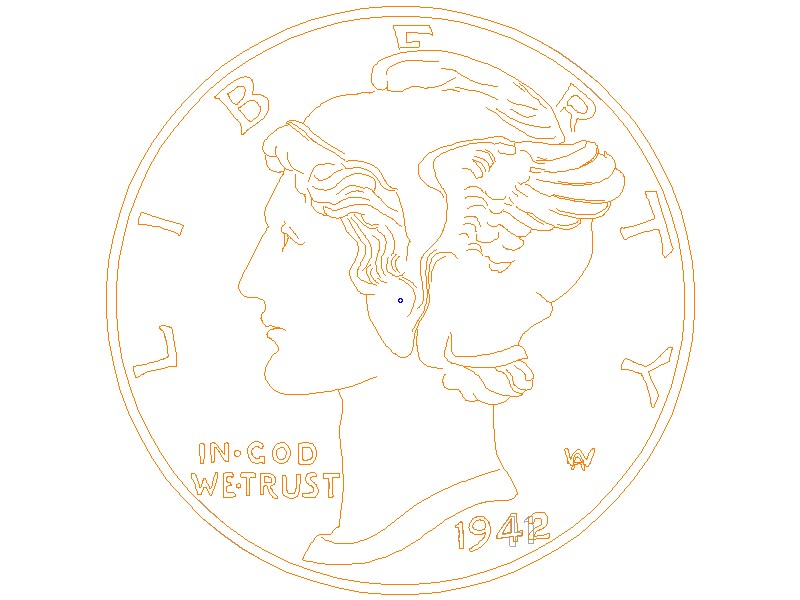

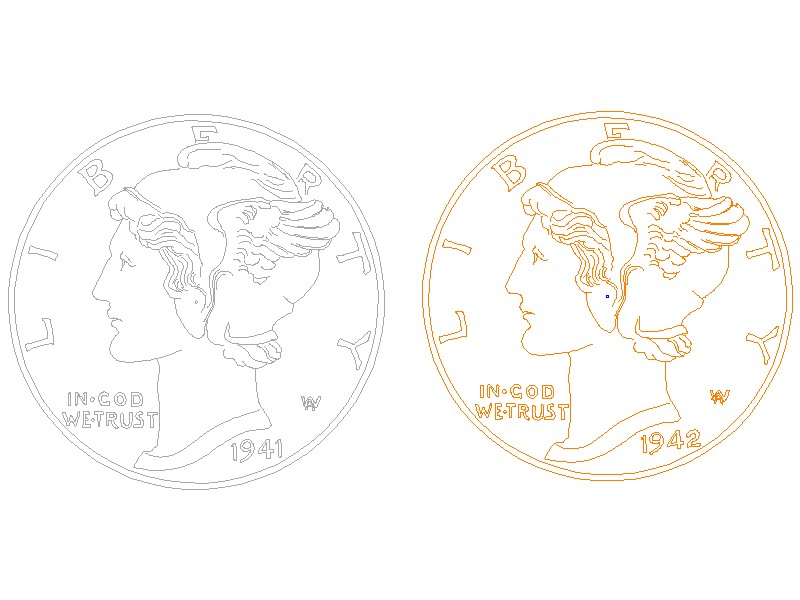

    Following illustrates design hub doubling with no offset or rotation. Look familiar? 1941 and 1942 Dime.JPG 1941 over 1942 Dime.JPG

  10. justafarmer

    justafarmer Senior Member

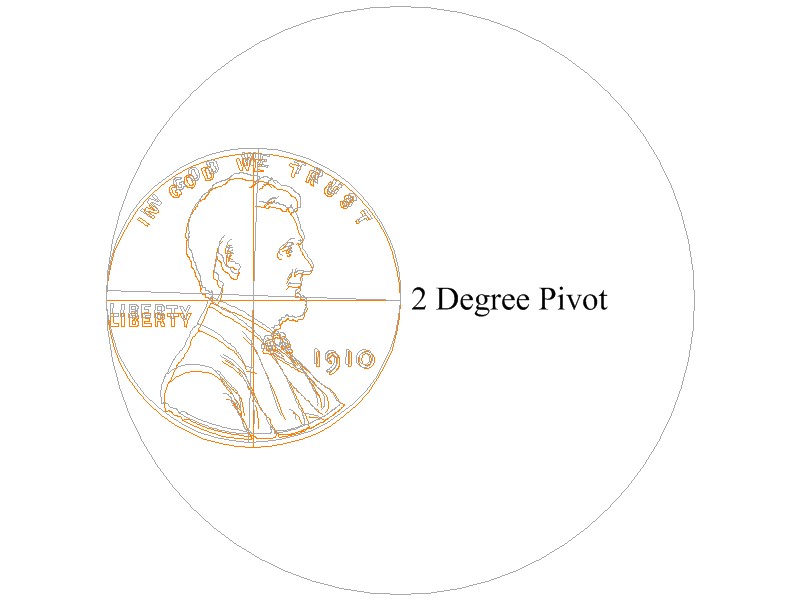

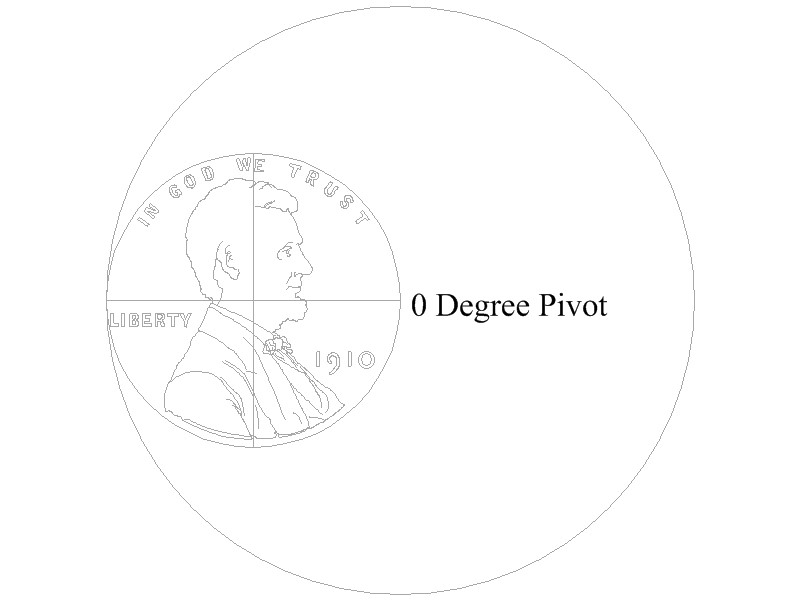

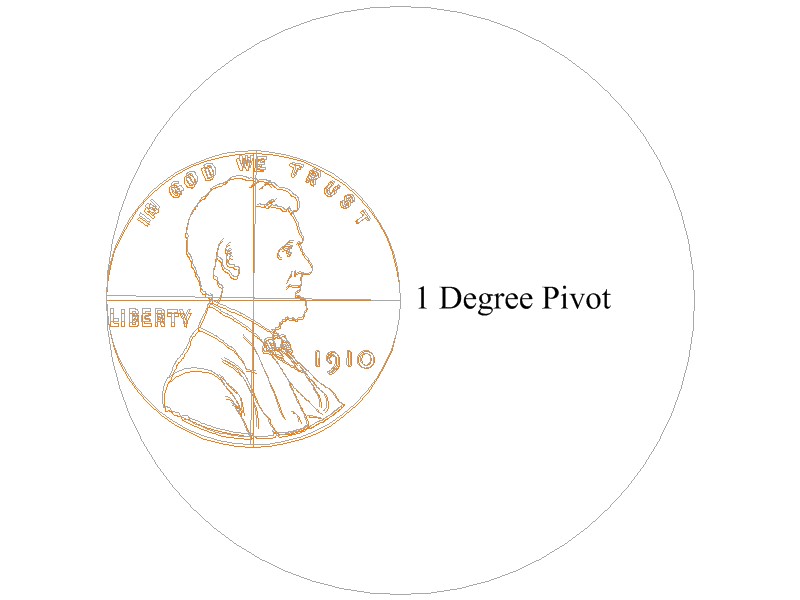

    Pivot Hub Doubling 0 Degree Pivot.JPG 1 Degree Pivot.JPG 2 Degree Pivot.JPG

    paddyman98 likes this.
  11. Conder101

    Conder101 Numismatist

    The problem showing pivoted hub doubling is that the pivot point can be anywhere on the coin, or even off of it. The images show the pivot point on the rim at 3:00, but if it was say at 6:00 the areas of doubling would be quite different. The 1995 DDO cent is an example of pivoted hub doubling with the pivot point located close to the date. On pivoted hub doubling the doubling will be greatest 180 degrees across from the pivot point. If the pivot point is not on the rim there will be doubling on both sides of the pivot, the greatest at 180 degrees and a much lesser behind it. The closer the pivot point get to the center of the coin the greater the doubling will be behind it. Rotated hub doubling is actually just a special case of pivoted hub doubling where the pivot point is at the center of the die.

  12. justafarmer

    justafarmer Senior Member

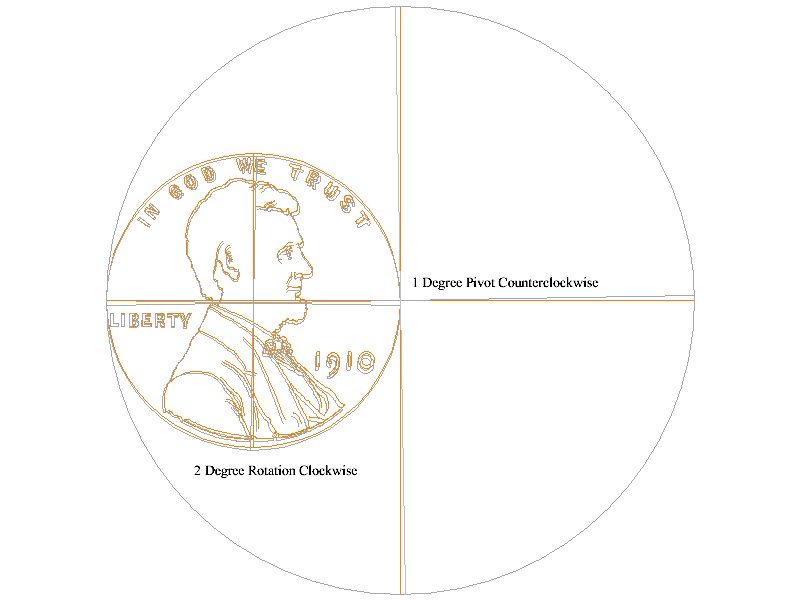

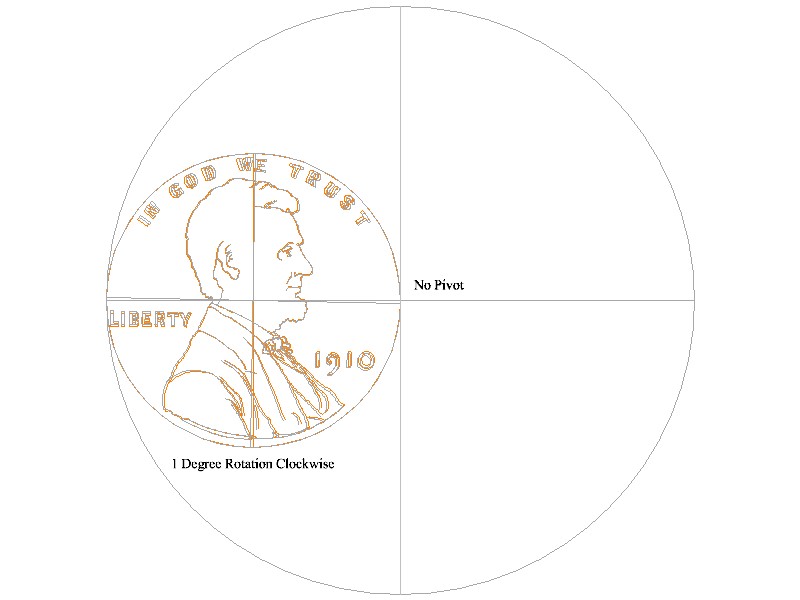

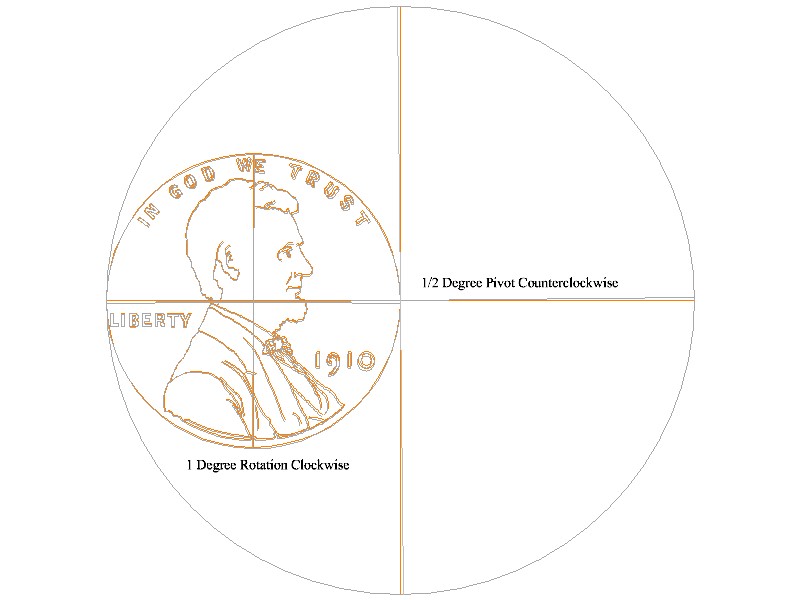

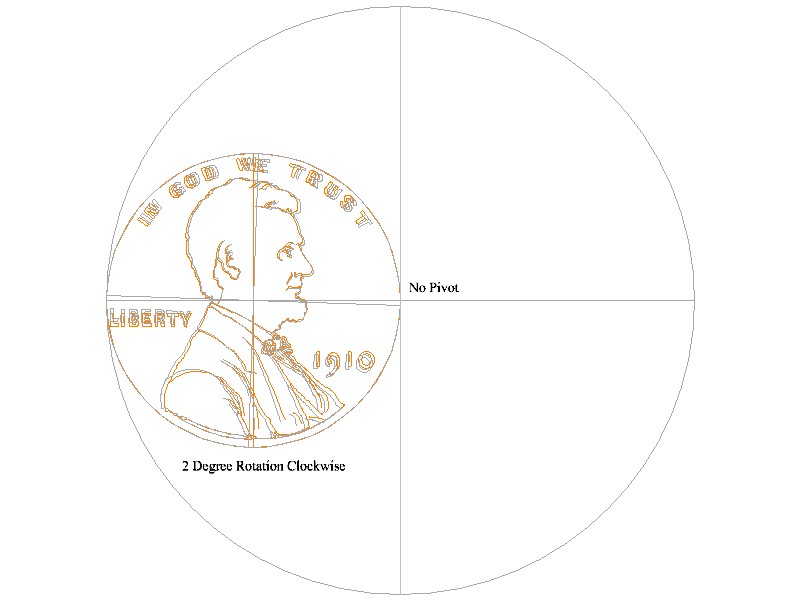

    Anybody who has installed crown molding understands the concept of compound miter joints. Well what about compound hub doubling? In the following illustrations of compound hub doubling the gray image was rotated at the coin's center first and pivoted at the rim 2nd. Compound 01.JPG Compound 02.JPG Compound 051.JPG Compound 12.JPG

  13. justafarmer

    justafarmer Senior Member

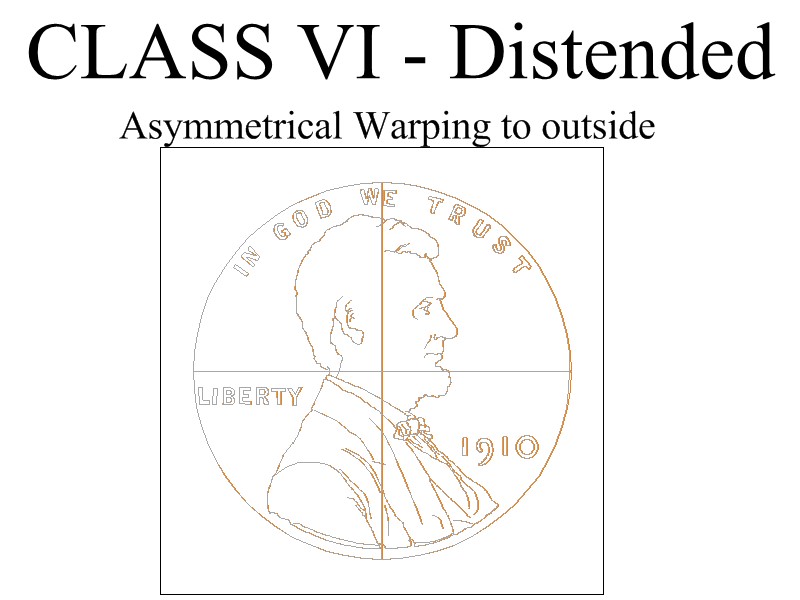

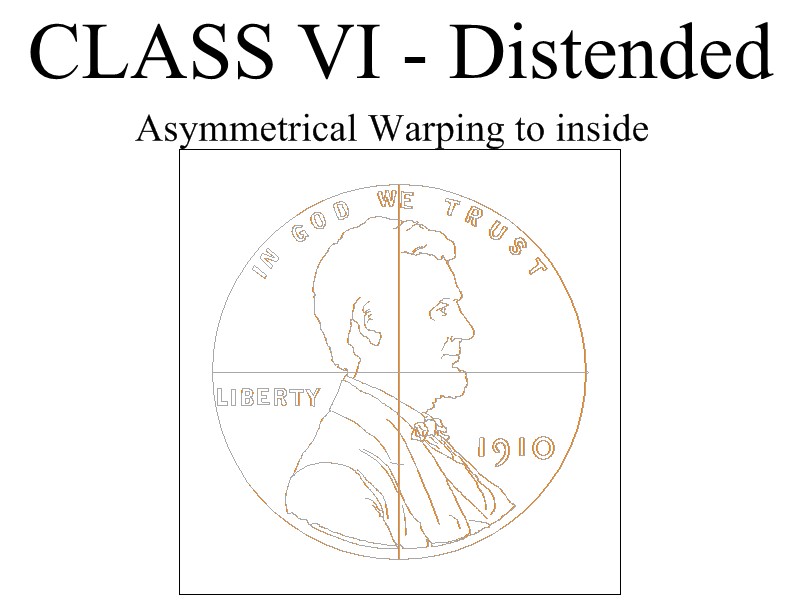

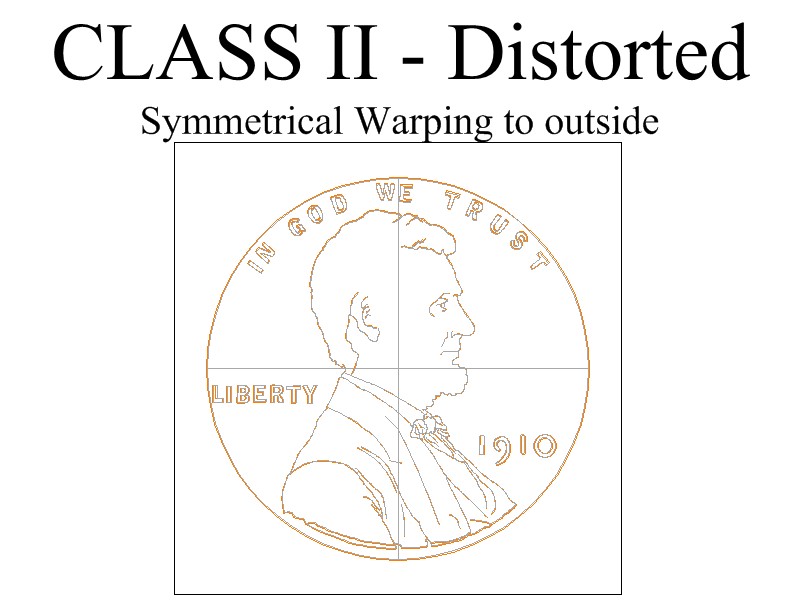

    Two other forms of hub doubling attributed to heat warping of the die due to annealing of the die between squeezing. There is some debate on Class VI (distended) doubling as many attribute this form to working hub deterioration. Class II out.JPG Class VI In.JPG Class VI Out.JPG

  14. Jersey magic man

    Jersey magic man Supporter! Supporter

    OK, i’m Giving up on trying to figure out which doubling I can see on a cent. If the cent is circulated (which almost all of mine are) I don’t think I could see it with great magnification. I am 71 years old now and would probably be deceased before I could develope the expertise to figure all this stuff out! Maybe I should start collecting dollar sized coins, at least I would have a fighting chance.

  15. justafarmer

    justafarmer Senior Member

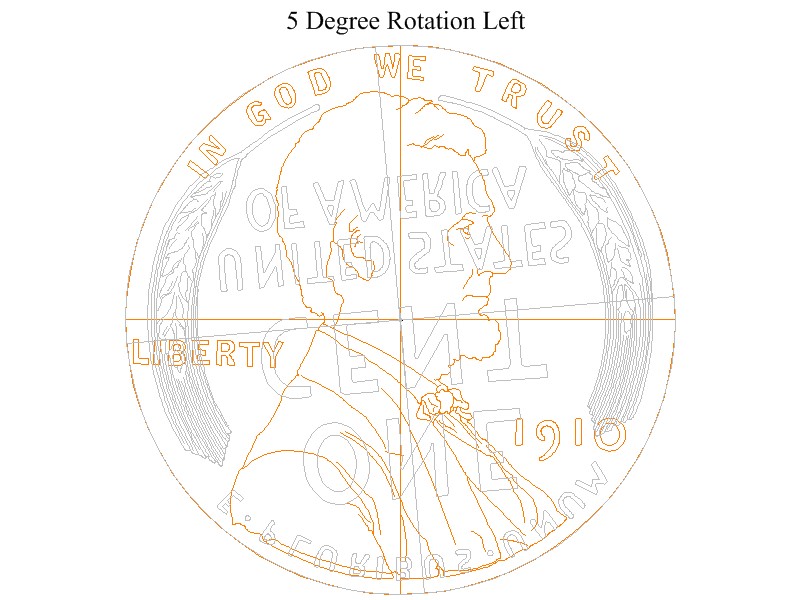

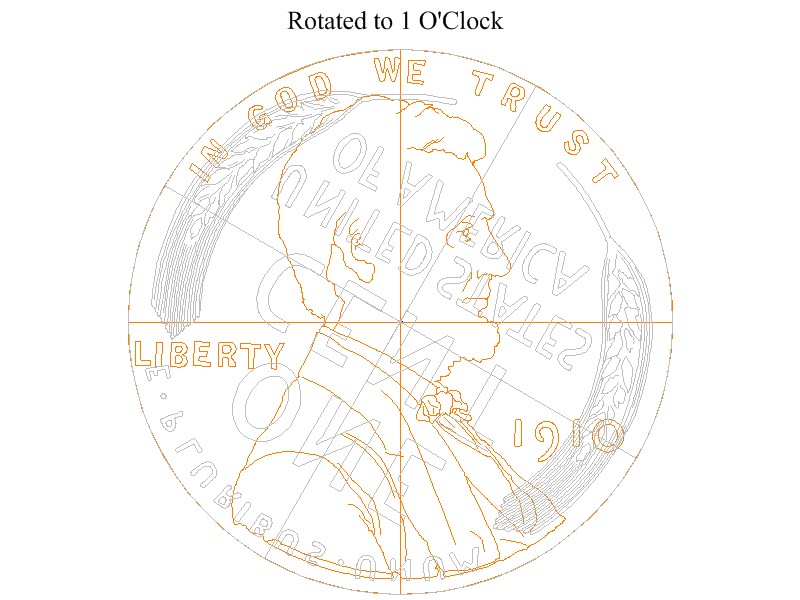

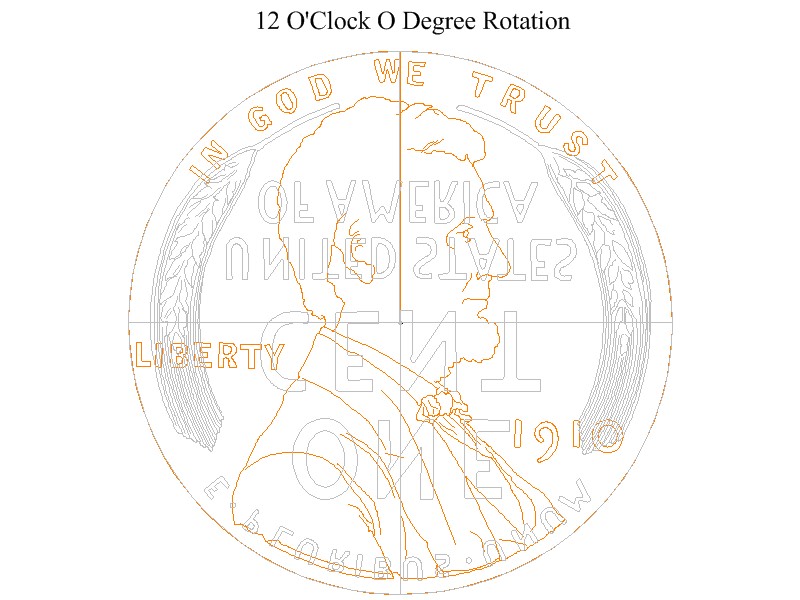

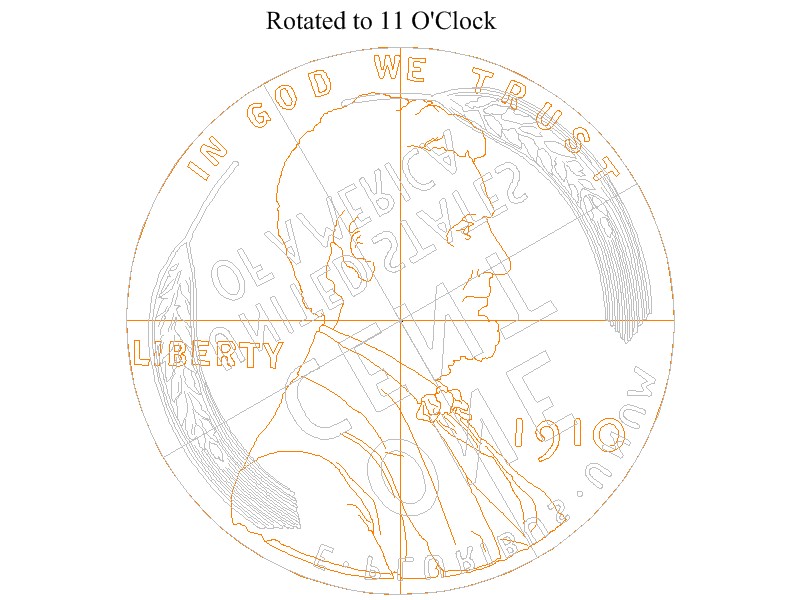

    A little bonus for those who collect 12 oclock.JPG 5 right.JPG 5 Left.JPG 1 Oclock.JPG 11 oclock.JPG errors - rotated dies.

  16. physics-fan3.14

    physics-fan3.14 You got any more of them.... prooflikes?

    It takes a lot of time, practice, patience, and experience to figure out what kind of doubling there is. JAF has only gotten through class VI... there are ten!

    These images are really good. Keep them coming!

  17. justafarmer

    justafarmer Senior Member

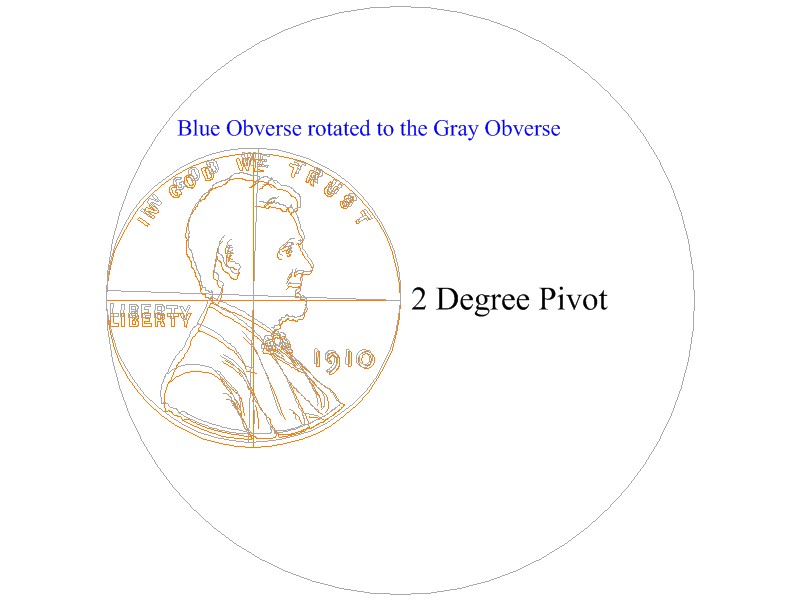

    Actually Class V (Pivot) doubling is a specific form of compound doubling of Class I (Rotated) and Class IV (Offset) Hub Doubling. I have added a third obverse in Blue to illustrate this in the following images.
    2 Degree Pivot.JPG Pivot Offset.JPG Pivot Offset Rotated.JPG

  18. Conder101

    Conder101 Numismatist

    One thing that should be clear from these images, the doubling on just about any doubled die in the US coinage is the result of rotations or offsets of less than 2 degrees, in most cases less than 1 degree.

  19. thomas mozzillo

    thomas mozzillo Well-Known Member

    Thank you for all that information. Just curious to know if there are any 3, 4, or 5 degree Rotated Hub Doubling coins out there? The 1955 doubled die Lincoln cent looks closer to 2 degrees and that's the best I've ever seen. If someone has a 3, 4, or 5, I'd love to see a photo of it.

  20. scopru

    scopru Member

    Nice postings. Nice illustrations to show the differences!

  21. justafarmer

    justafarmer Senior Member

    I'm not sure how to illustrate Class VIII (Tilted Hub) using these type of drawings. Class VII (Modified Hub Doubling) is basically a the same type of Doubling as Class II (Design Hub Doubling). Wexler says there are no known varieties consisting of this type of doubling (so why bother). I guess one could make an argument concerning the "Broken 4" doubled die cents.

    So that makes 8 forms. I haven't delved into coinage and doubled dies produced using the single squeeze method.
