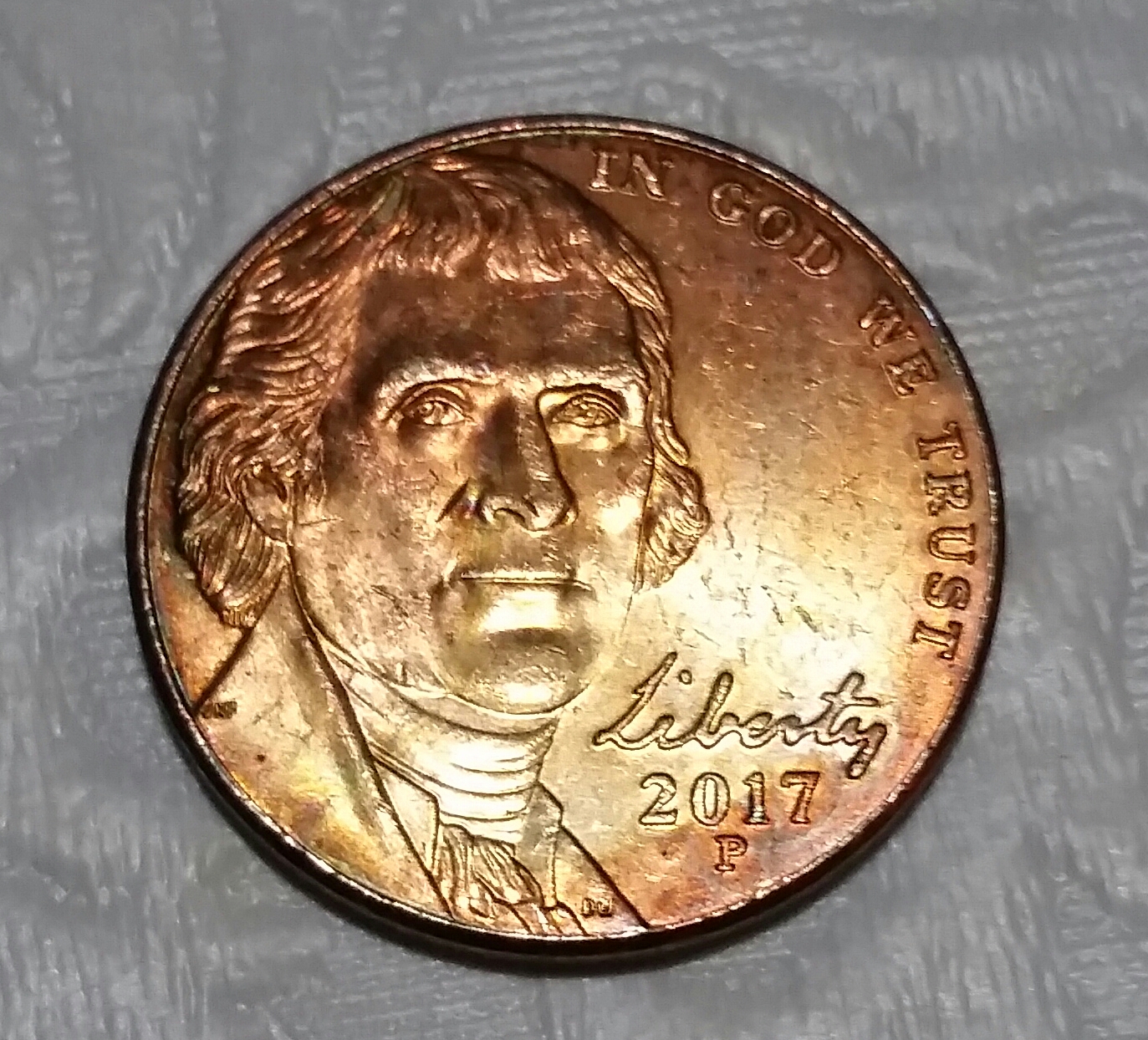

Overheated Planchet or PMD on 2017P Nickel?

Discussion in 'Error Coins' started by SlipperySocks, Oct 21, 2018.

  1. SlipperySocks

    SlipperySocks Well-Known Member

  2. Avatar

    Guest User Guest



    to hide this ad.
  3. SlipperySocks

    SlipperySocks Well-Known Member

    Sorry to bother you @JCro57 but I cannot find the post where you guys were discussing these nickels and what the qualifiers were for genuine sintered planchets. What does your experience say about this coin?

  4. JCro57

    JCro57 Making Errors Great Again

    No bother at all...

    Annealing is a process where coin blanks are heated in an oven before they are struck by the dies. This is done to soften the metal, which actually also helps strengthen the metal. If this process is bypassed, a coin blank remains brittle and could possibly crack, split apart, or even sort of shatter when great pressure is applied from the force of the die-striking process.

    If left in the annealing oven too long, silver-colored coins that are copper-based (for example, nickels are 75% copper, and clad coins have a copper core and are also plated with a copper-nickel alloy) can sometimes result in copper atoms shifting to the surface which makes them now a rusty-looking copper color, or can be dark like a grey or black, or even pink, brown, or can appear spotted - even only affected on one side. Some felt this was due to copper dust leftover in the annealing oven left from previous batches of coins, which then settled on other coins (sintered actually means going from powder right to a solid without liquidation). These were once called "sintered" or "copper wash" coins.

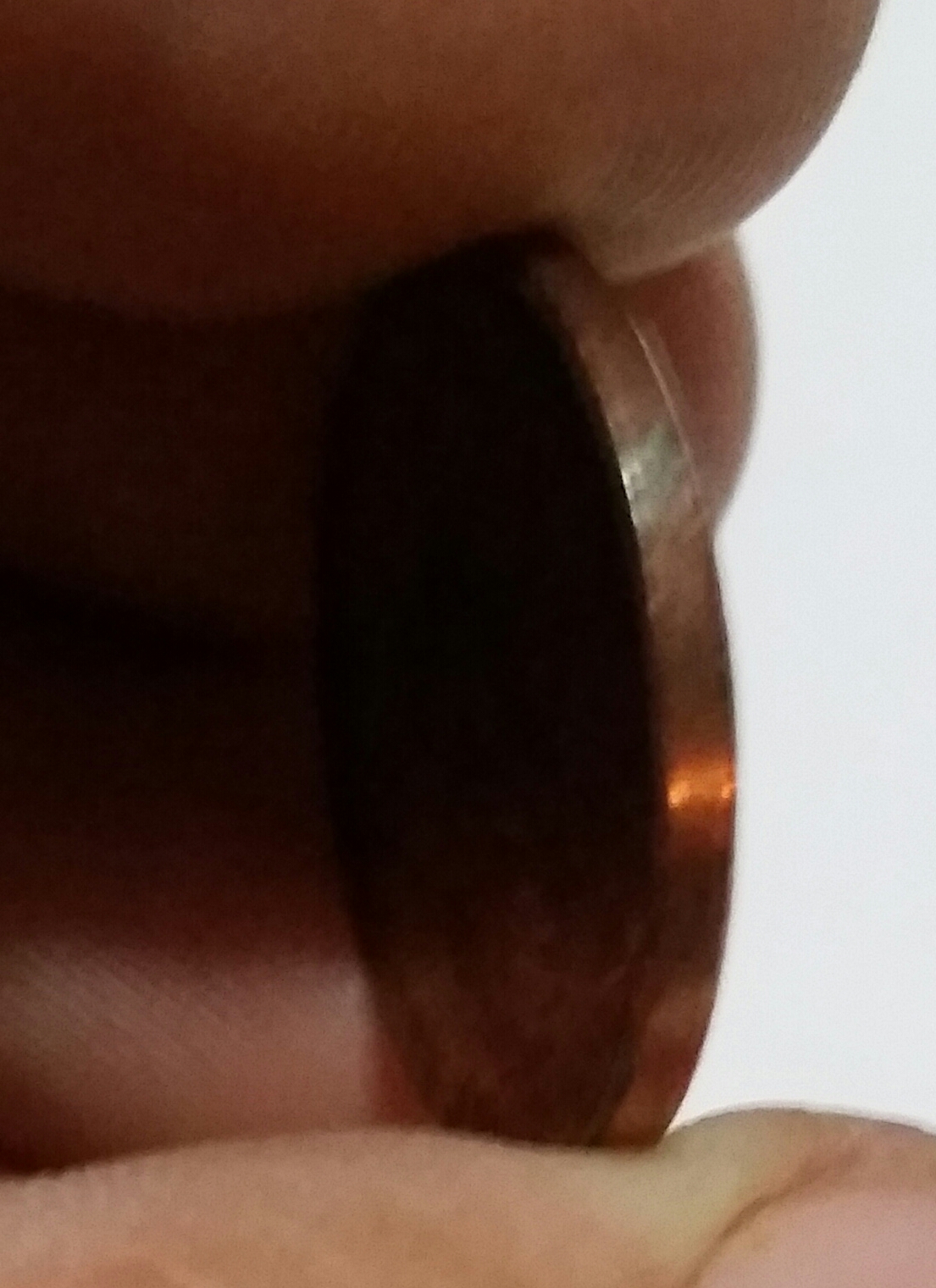

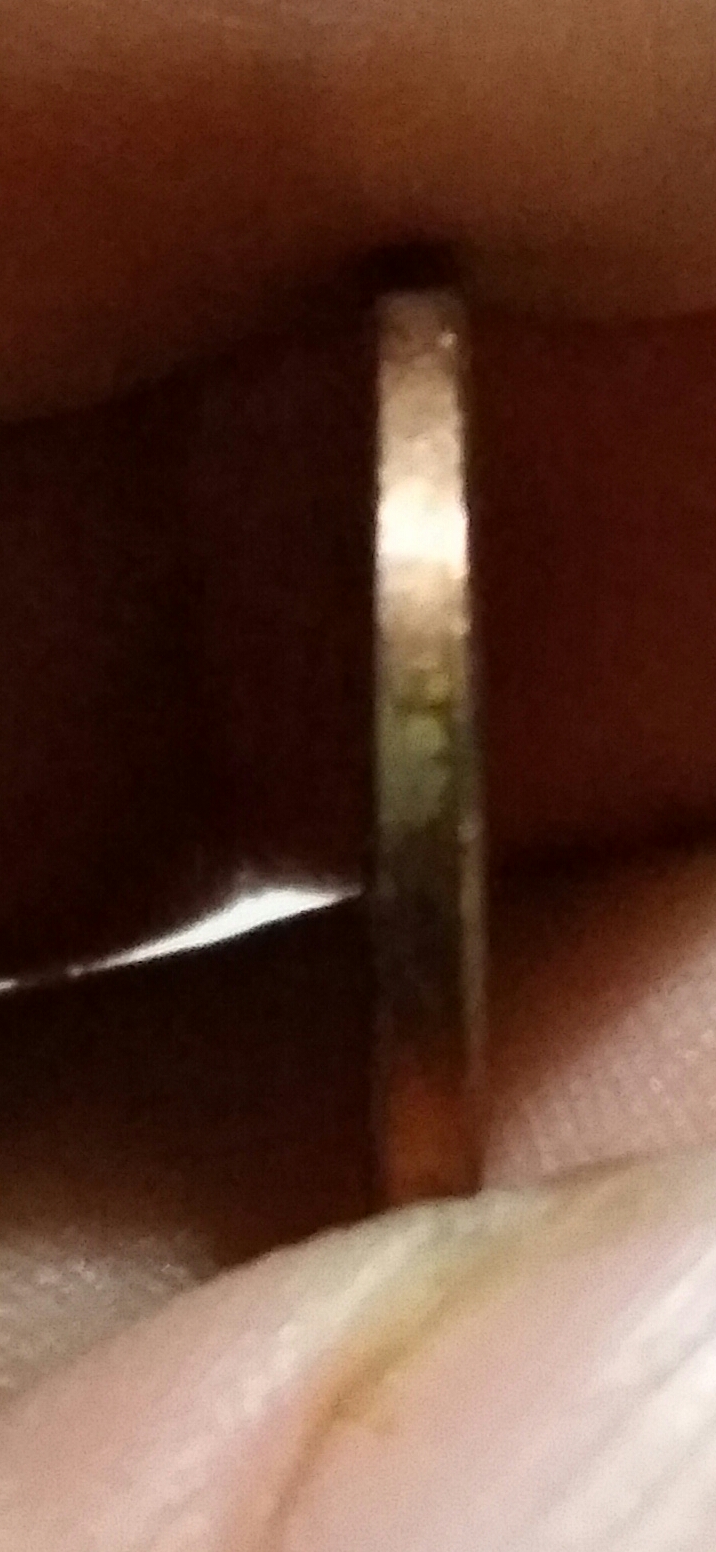

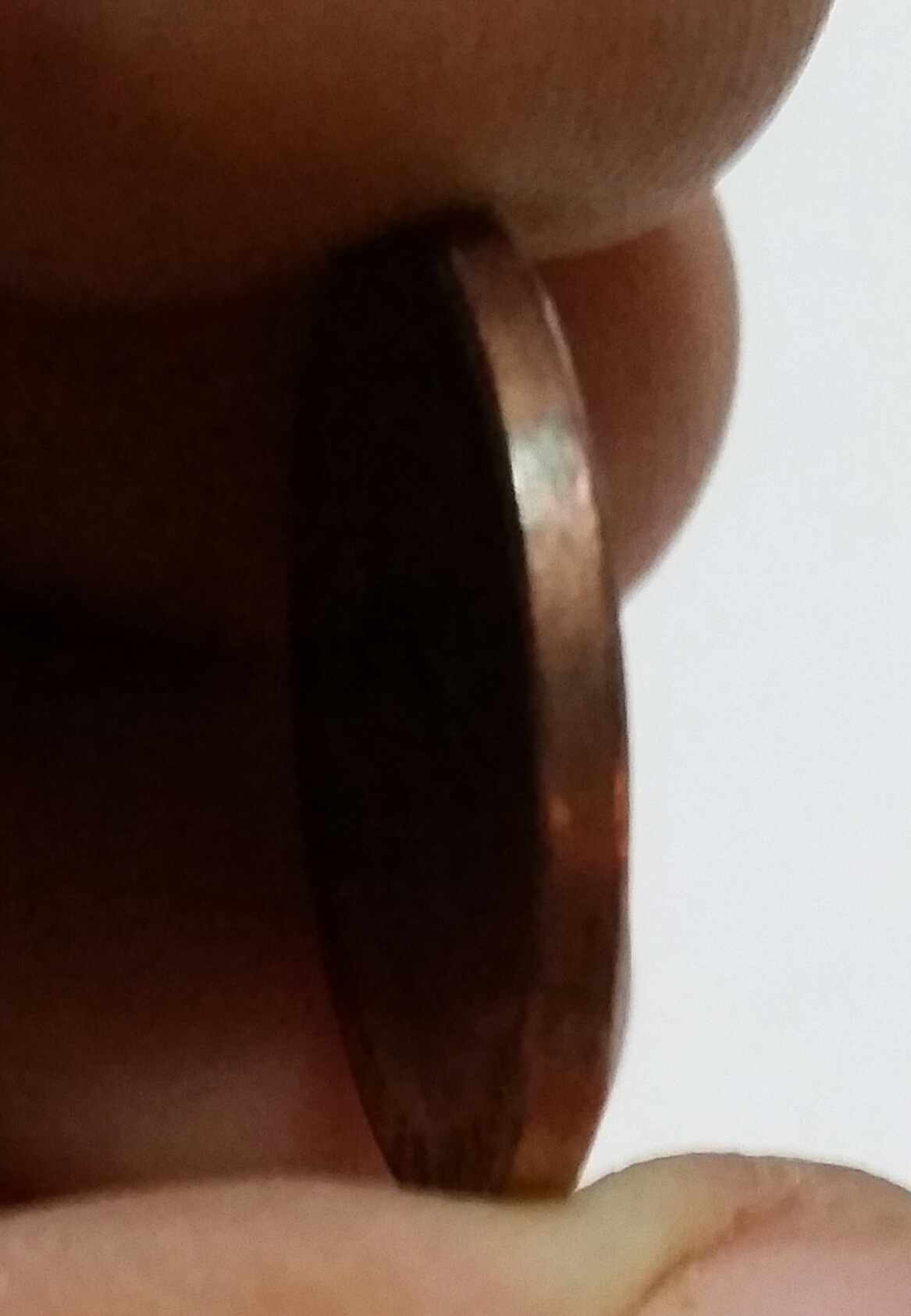

    When ejected from the striking chamber, the edges rub the collar (much more so if a coin has reeded edges) on the way out. Thus, edges should appear with a silver color instead of the deep red or grey/black.

    I have seen many coins at shows where dealers are selling these as improperly annealed, but almost every single one that I've seen is really just a damaged coin, and many of these are just environmentally damaged from the elements.

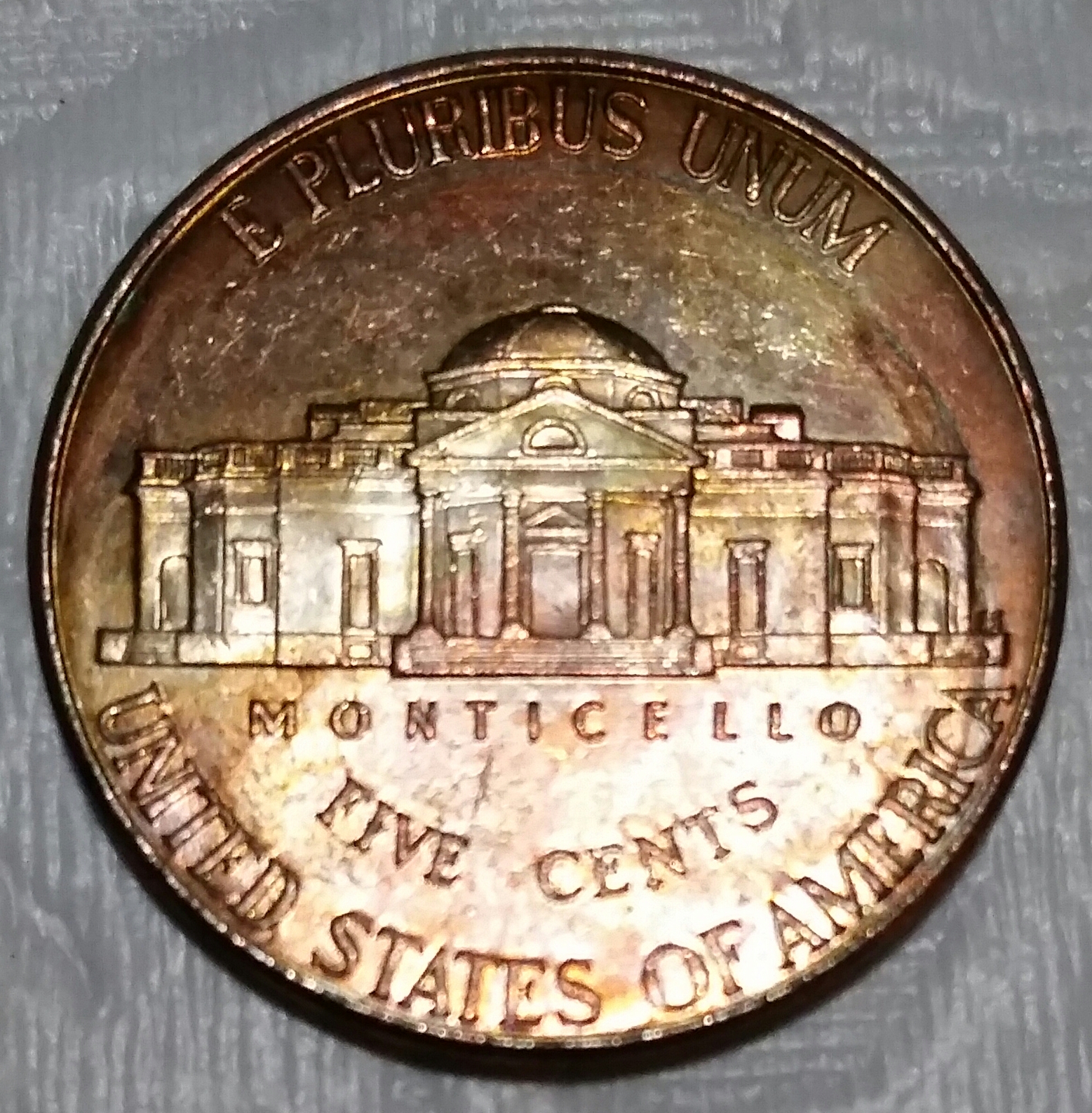

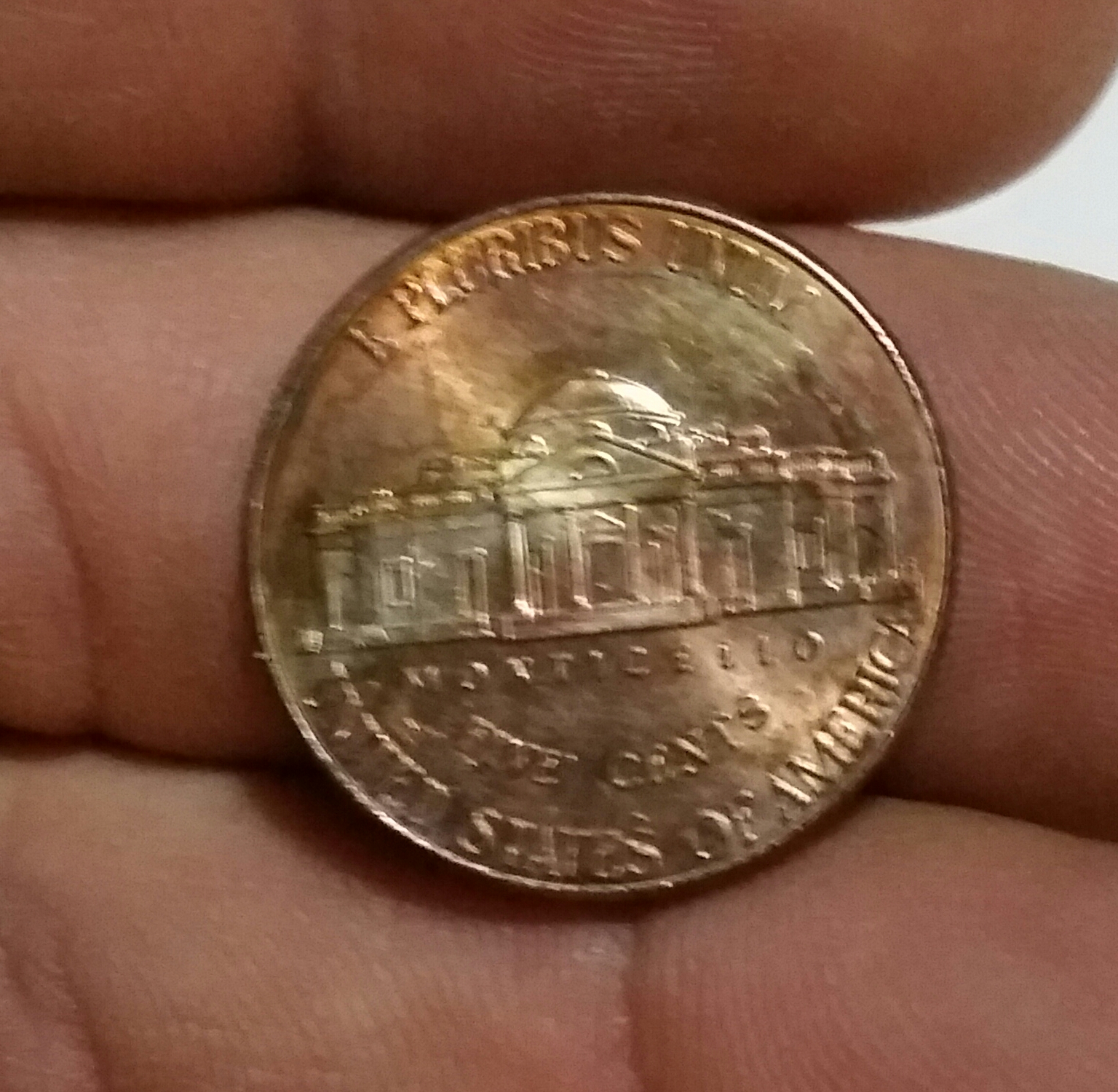

    Unfortunately, it is my opinion that your coin actually looks like it has environmental damage.

    SlipperySocks likes this.
  5. Clawcoins

    Clawcoins Well-Known Member

    Looks like a copper wash ....

    ie, when I have really dirty coins, instead of throwing them away due to the muck, I'll throw cents, nickels, dimes etc into a mauratic acid wash. The nickels, dimes, quarters although much cleaner have an inconsistent copper wash over them as they just a small pile of change thrown in there. Of course, I then use the money. I'm sure I'm not the only person that cleans coins using some form of acid. There's a couple threads here where I show some that were cleaned with copper wash on them.

  6. SlipperySocks

    SlipperySocks Well-Known Member

    Thanks! I couldn't remember the rules for the edge of the nickels. Then the annealing process is done to the planchets after they are cut from the strips. So the coppery discoloration can be "rubbed" off? If so, then what you are saying is the discoloration of a black beauty is only "skin deep". Therefore it would be possible to find one well circulated that has the silver colored nickel showing through worn spots?

  7. Fred Weinberg

    Fred Weinberg Well-Known Member

    Not 'copper wash' imo.

    Looks like, as mentioned by Joe, enviornmental damage
    on the surfaces - stained, by any other name.

    SlipperySocks likes this.
  8. JCro57

    JCro57 Making Errors Great Again

    I have never actually tried to "rub" the copper coating off should the copper particles surface on a nickel or other coin. I know it can get thick enough to form a shell and even flake off, and even come apart in entire sections. For some reason, Sacagawea and Presidential dollars only go to a deep grey; I have never seen a reddish-copper on the surface from those coins when over annealed.

    I guess it would depend at what stage the copper on the surface has ingrained and is now fused on to the surface layer of it to be able to actually rub it or buff it out.

    As to exactly why some only turn grey/black while others become a rusty-red, why some appear on the entire surface while others have spots or streaks, why some only have red on one side, etc., is something I really do not understand.

  9. Cheech9712

    Cheech9712 Every thing is a guess

    I want to hug your brain

  10. JCro57

    JCro57 Making Errors Great Again

    I am a Toronto Maple Leafs fan, so you might rescind your offer
