One sided Lincoln Penny

When I read a blank and a planchet are not the same thing my first thought is what is the difference? Wikipedia explains the difference is that they are one and the same.



Log in or Sign up to hide this ad.

Here' info on the difference -

Making a blank

The first step in the coin making process involves the feeding of the metal strips through what is known as a "blanking" press. The U.S. Mint buys strips of metal approximately 13 inches wide and 1,500 feet long to manufacture the nickel, dime, quarter, half-dollar, and dollar. The strips come rolled in a coil. Each coil is fed through a blanking press, which punches out round discs called blanks. The blank presses have a bank of punches (or rams) which travel downward through the strip of coinage metal and into a steel bedplate which has holes corresponding to the punches. The presses punch out blanks each time the punches make their downward cycle. The leftover strip, called webbing is shredded and recycled. The blanks made at this stage are slightly larger than the finished coins. Because of the shearing action of the punches, the blanks have rough edges. Most of the rough edges (or burrs) are removed during succeeding operations.

The blanks are next passed over sorting screens which are supposed to eliminate all of the defective pieces. Thin and incomplete blanks will fall through the screens. Rejected blanks and remaining parts of the metal strips are returned to the furnaces to be remelted into bars. During the finish rolling and blanking press operations the blanks have again been hardened and must now be softened (heated) to controlled temperatures, approximately 1400 degrees Fahrenheit, changing their crystal structure to a softer state. The annealing ensures that the blanks have reached a coinable hardness so that they can be stuck to capture the full relief of the designs of the working dies. This process prolongs the life of the coining dies by ensuring well-struck coins with lower striking pressures. The blanks are then "frozen" into that state by a water quench bath.

From planchets to coins
Despite a protective atmosphere, annealing causes some discoloration on the surfaces of the blanks which must be removed. The blanks are tumbled against each other and passed through a chemical bath. Then they are dried by forced hot air. Many of the blanks' next stop is an upsetting mill, which raises a rim around their edges turning the blanks into planchets. The upsetting mill consists of a rotating wheel with a groove on its edge. The grooved edge of the wheel fits into a curved section (or shoe) which has a corresponding groove. The distance between the wheel and the shoe gets progressively narrower so that, as the blank is rolled along the groove, a raised rim is formed on both sides of the blank. This raised rim serves several purposes. It sizes and shapes the blank for better feed at the press and it work-hardens the edge to prevent escape of metal between the obverse die and the collar.


The rimmed blanks are now planchets and are ready to go to the coining or stamping press where upper and lower dies stamp the designs and inscriptions on both sides of the coin simultaneously. At this point, the blanks become genuine coins. After the coins have been struck, they go through a final inspection to check for flaws. This can be done either manually by trained quality controllers or automatically. A new prototype inspection system underwent testing at the Denver Mint in 1996. Planchets are carried along a conveyor belt beneath electronic sensors that reject substandard pieces. After inspection and acceptance, the finished coins are mechanically counted and placed into large canvas bags for shipment to local banks on an as-needed basis. More about the actual striking process in the next page...

http://www.fleur-de-coin.com/articles/blanks-planchets



Thank you Markus. I guess everyone got an education from that.



Well, Wikipedia is wrong on this one. The summary version of the article posted above: the blank is the disc of metal cut from the strip. Its just a round piece of metal. The blank is then run through an upset mill and has a raised rim. At this point, it becomes a planchet.



Thanks for taking time to respond to my inquiry.



30 years ago, one of the best cue makers in the world was using a computer-controlled CnC machine to cut inlays into the wood of a cue. If this could be done, then there is no reason that a coin couldn't be altered like this.

Chris



Unfortunately, anyone can post to Wiki and it doesn't matter if the info is correct or not.

Chris

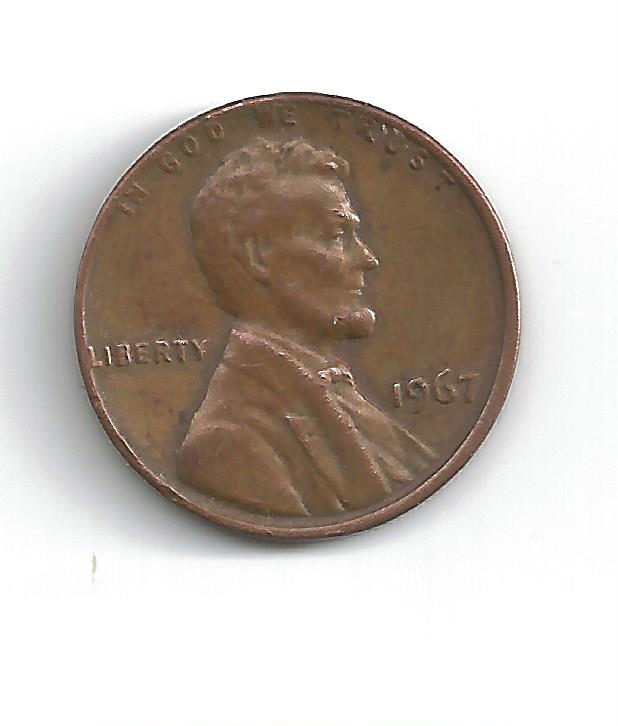

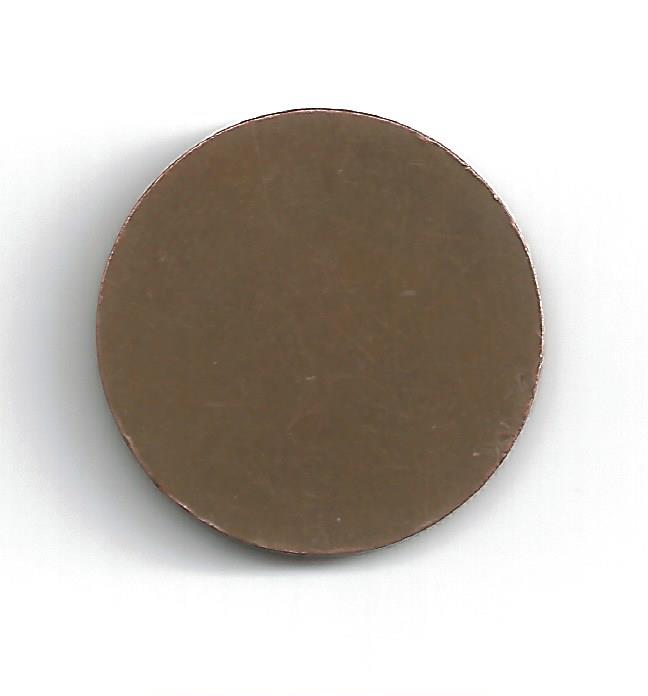

I may have the other because I have a penny, also 1967, with side smoothly blank



I have A very similar penny. And it seems odd to me the this is a 30 year old prank rather than a error. So I am to very curious.



I have a 1907 Indianhead penny that’s blank on one side what is it worth



I have a 1907 Indianhead penny that’s blank on one side what is it worth



I have a 1907 Indianhead penny that’s blank on one side what is it worth



1/2 Cent.. Your coin was altered



Intentionally altered..



No it's not odd.. It's intentionally altered...



I have a cent that is stamped only on one side and its no a complete stamp. The other side is smooth as can be but the cent itself is much thinner then a regular cent I suspect this is why only one side stamped



Its much thinner because one side was removed by a mechanical process. the removal of the image on the flat side included the removal of the metal on that side of the coin.

you also might want to start your own thread with pics. This is an old, old thread.
