My secret to taking such excellent pictures.

Discussion in 'Coin Chat' started by tomfiggy, Sep 28, 2015.

  1. tomfiggy

    tomfiggy Well-Known Member

    Haha sometimes people say I take nice pictures. I have the cheapest possible set up. I'm blind in one eye and can't see out of the other so a magnifier is of little use to me. :)
    I bought this USB microscope for $44.00 online over a year ago. It came with an adjustable tripod that was utter crap. You could tighten it up but it would start to droop and I could never get it straight so the camera was looking straight down. The other problem was I could not turn off the LED's so a harsh bright light came out. I couldn't get good pics of shiny coins. Also the room or outside light would always change and I could never get consistent results.

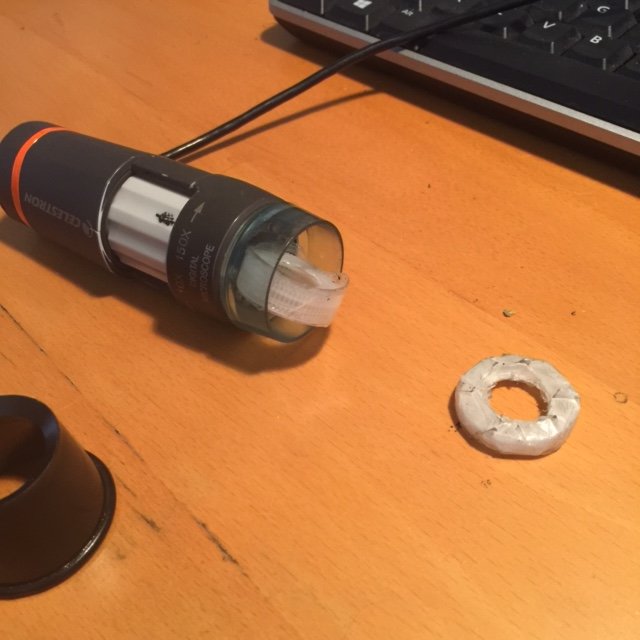

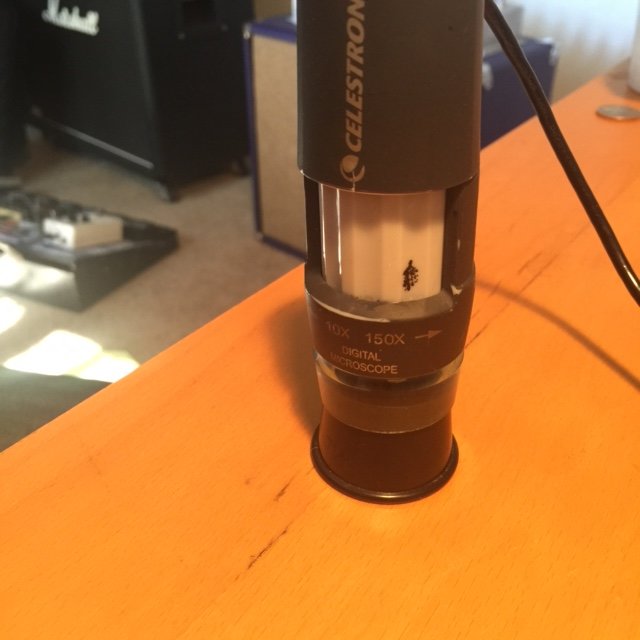

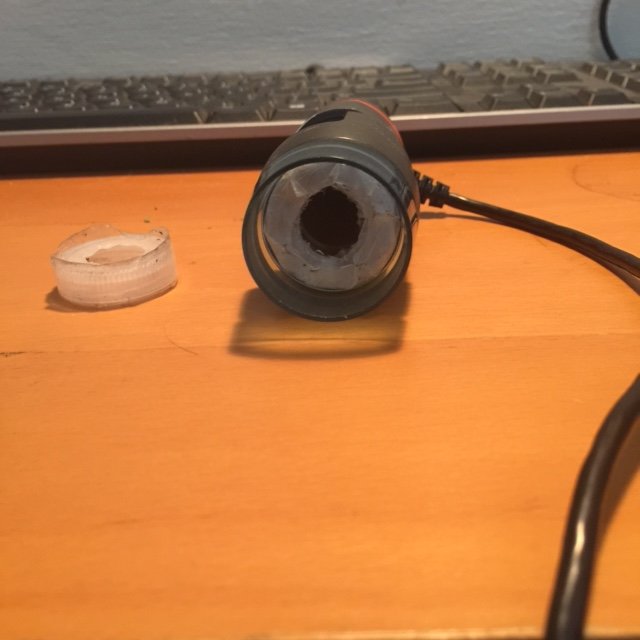

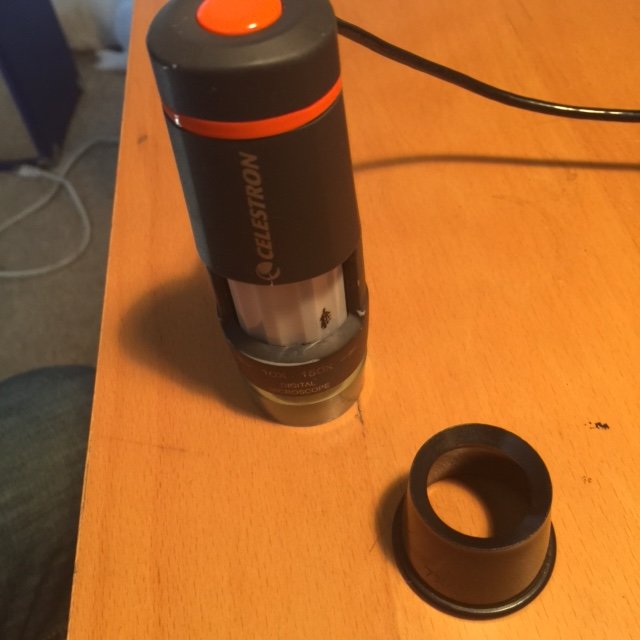

    I made a translucent washer from the inside top of a prescription bottle and some scotch tape to push up into the barrel of the microscope. It diffuses the bright light from the LED's and softens it. I can take pics of shiny coins with the filter in place. I also had a set of cheap plastic "loupes" from Harbor Freight. On a whim I popped the lens out of one and my microscope barrel fits into the top with the diffuser or without it.. Now I can get it level. I set the loupe over the coin and set the microscope on top. Now very little light from the outside gets into the pic. I control the light on the micro level now so I don't need external lamps, diffusers, etc.... For very close up shots I set the microscope on the coin without the loupe. 84dbestdate.jpg IMG_1427.JPG IMG_1429.JPG IMG_1430.JPG IMG_1431.JPG

    Last edited: Sep 29, 2015
    jackhd, phankins11, Jwt708 and 2 others like this.
  2. Avatar

    Guest User Guest



    to hide this ad.
  3. dwhiz

    dwhiz Collector Supporter

    Now that's a real Rube Goldberg

    tomfiggy likes this.
  4. phankins11

    phankins11 Well-Known Member

    Great idea for defusing the light, will give that a try.

    tomfiggy likes this.
  5. doug5353

    doug5353 Well-Known Member

    NASA needs you...

    Another source of diffusing material, cut a 4 x 4 chunk out of the side of a translucent plastic milk or water jug, then trim to fit. If one layer's insufficient, simply make another, it's very thin but sturdy plastic.

    phankins11 and tomfiggy like this.
