[Game] World Coins Time Machine… Counting Backward by Year! (Plus Prize Coin)

Discussion in 'World Coins' started by Curtisimo, Jun 14, 2017.

  1. Jimski

    Jimski Well-Known Member

    I see the dated coins of Elizabeth I and Edward VI in my Spink Catalog now. I have a Elizabeth sixth issue shilling and an Edward sixpence, neither have the date.

    Thanks for the great response.

    Curtisimo likes this.
  2. Avatar

    Guest User Guest



    to hide this ad.
  3. daveydempsey

    daveydempsey Well-Known Member

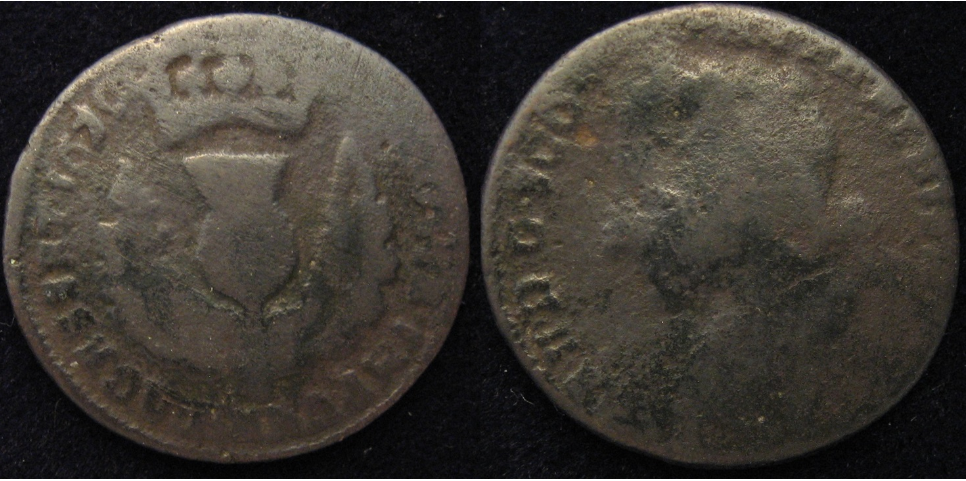

    1679 Scottish bawbee.

    I`m out now, no more to show.


    Curtisimo, jj00, Stork and 3 others like this.
  4. PaddyB

    PaddyB Eccentric enthusiast

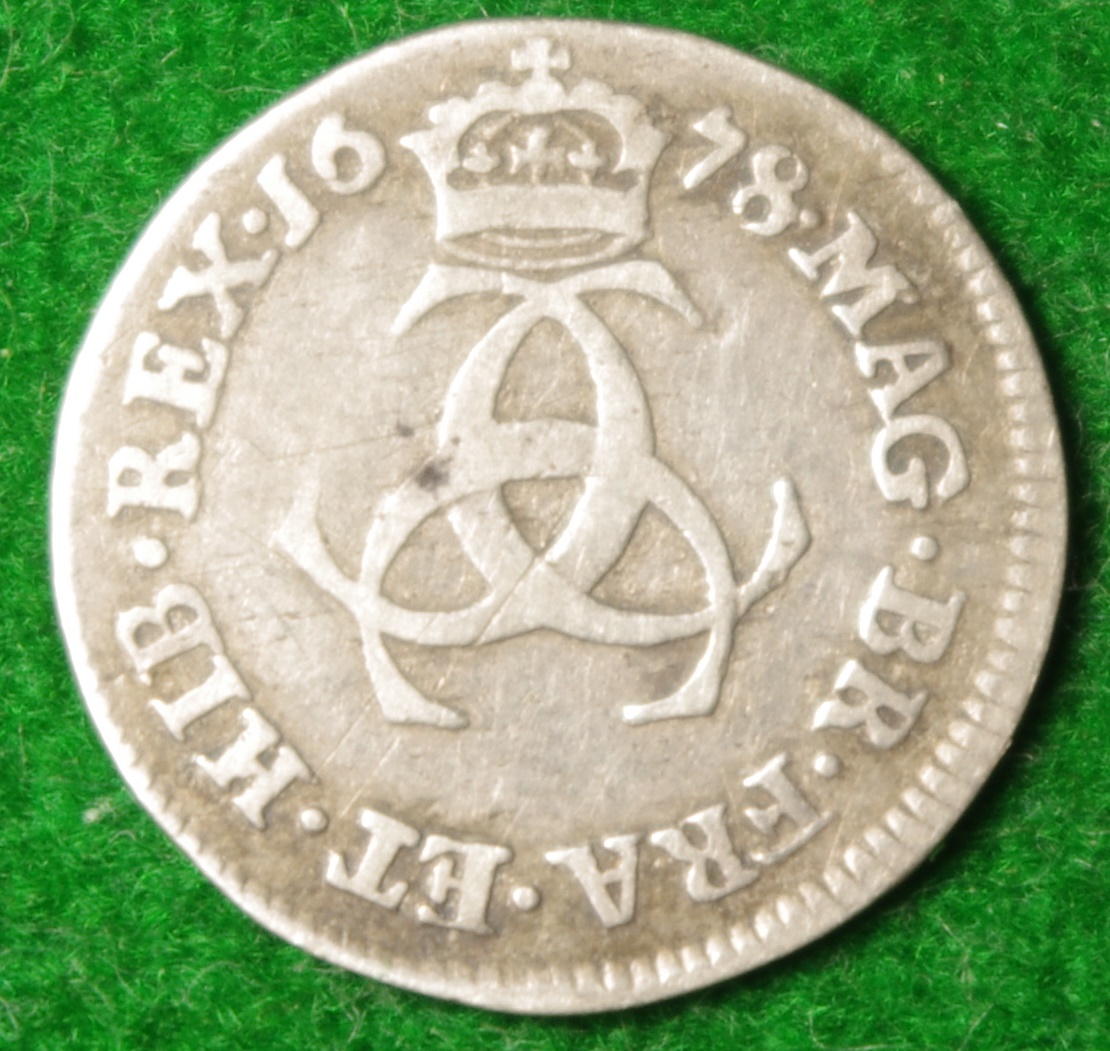

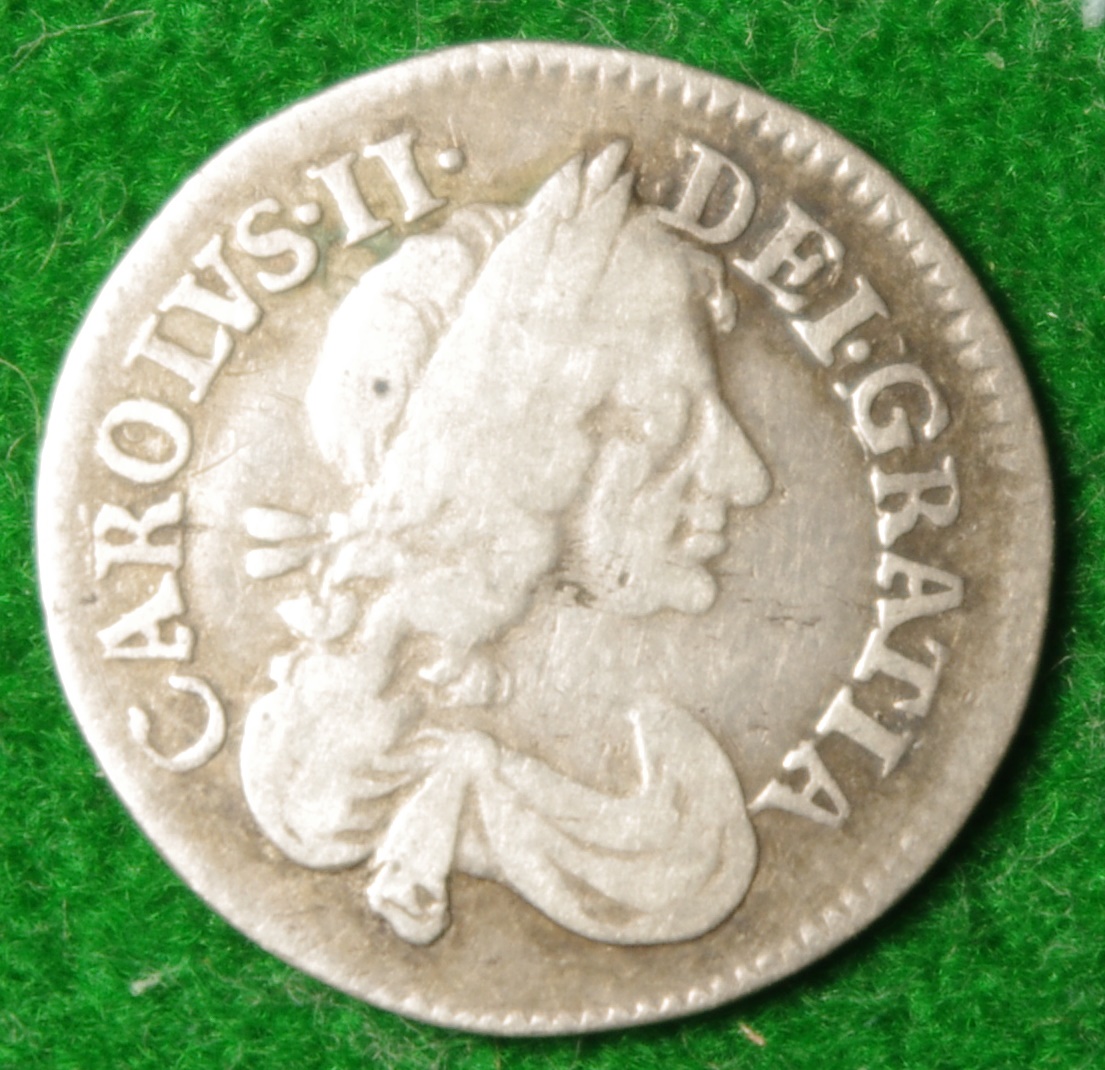

    I am still on for a bit yet. Here is my 1678 offer - another threepence:
    1678 3D 1.JPG 1678 3D 2.JPG

    Curtisimo, Kimotej, jj00 and 5 others like this.
  5. semibovinian

    semibovinian Well-Known Member

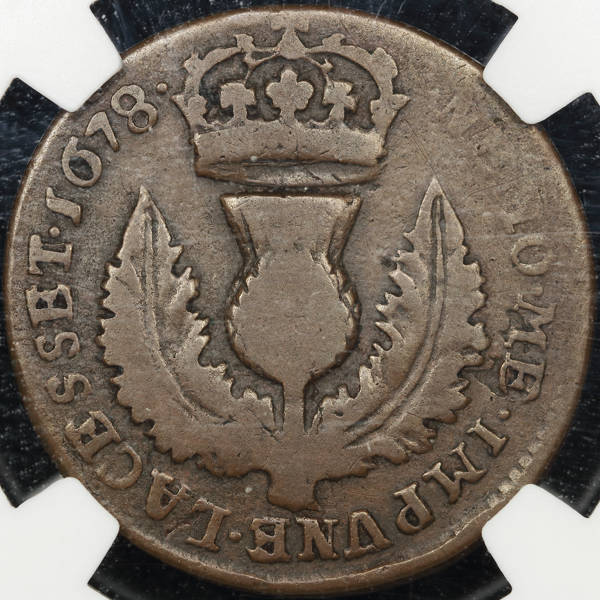

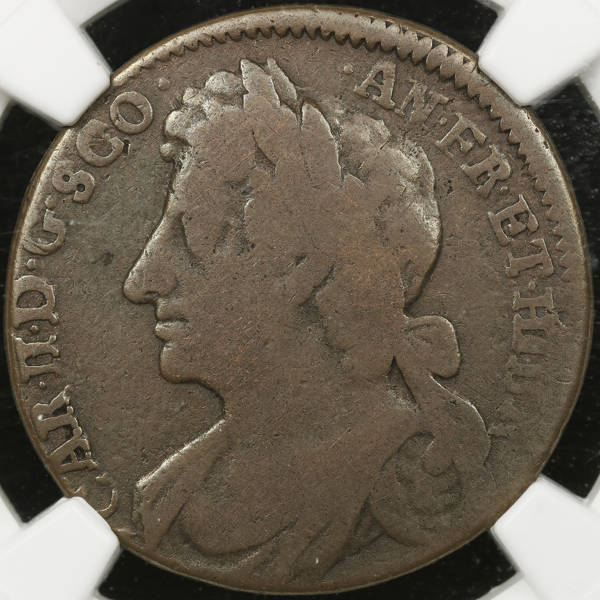

    1678 -- Scotland, bawbee:
    1678_GB_Scotland_1bawbee_1o_DPP_2017_09_13__0001_1.jpg 1678_GB_Scotland_1bawbee_1r_DPP_2017_09_13__0006_1.jpg

    Curtisimo, Kimotej, jj00 and 6 others like this.
  6. coin_nut

    coin_nut Supporter! Supporter

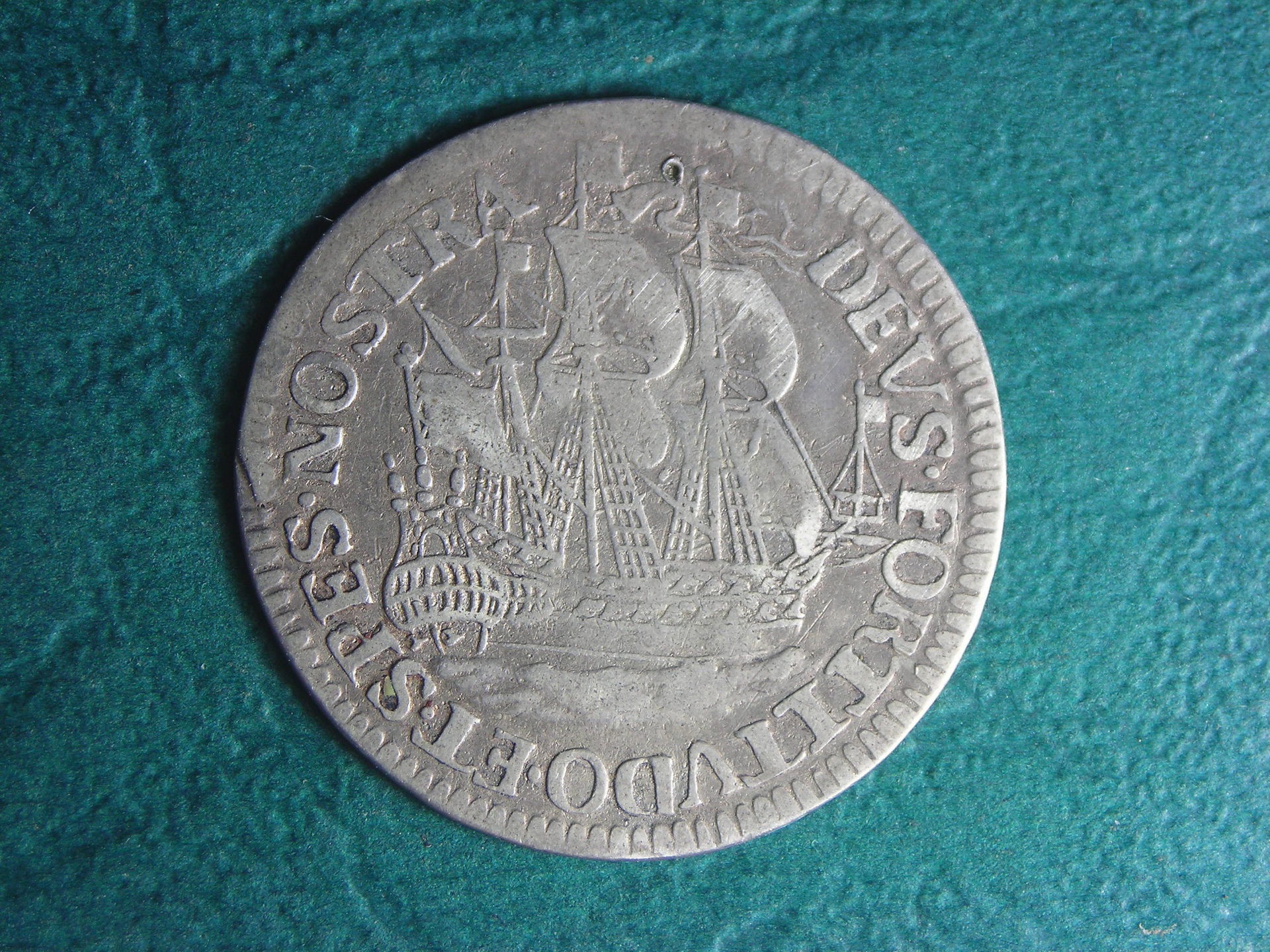

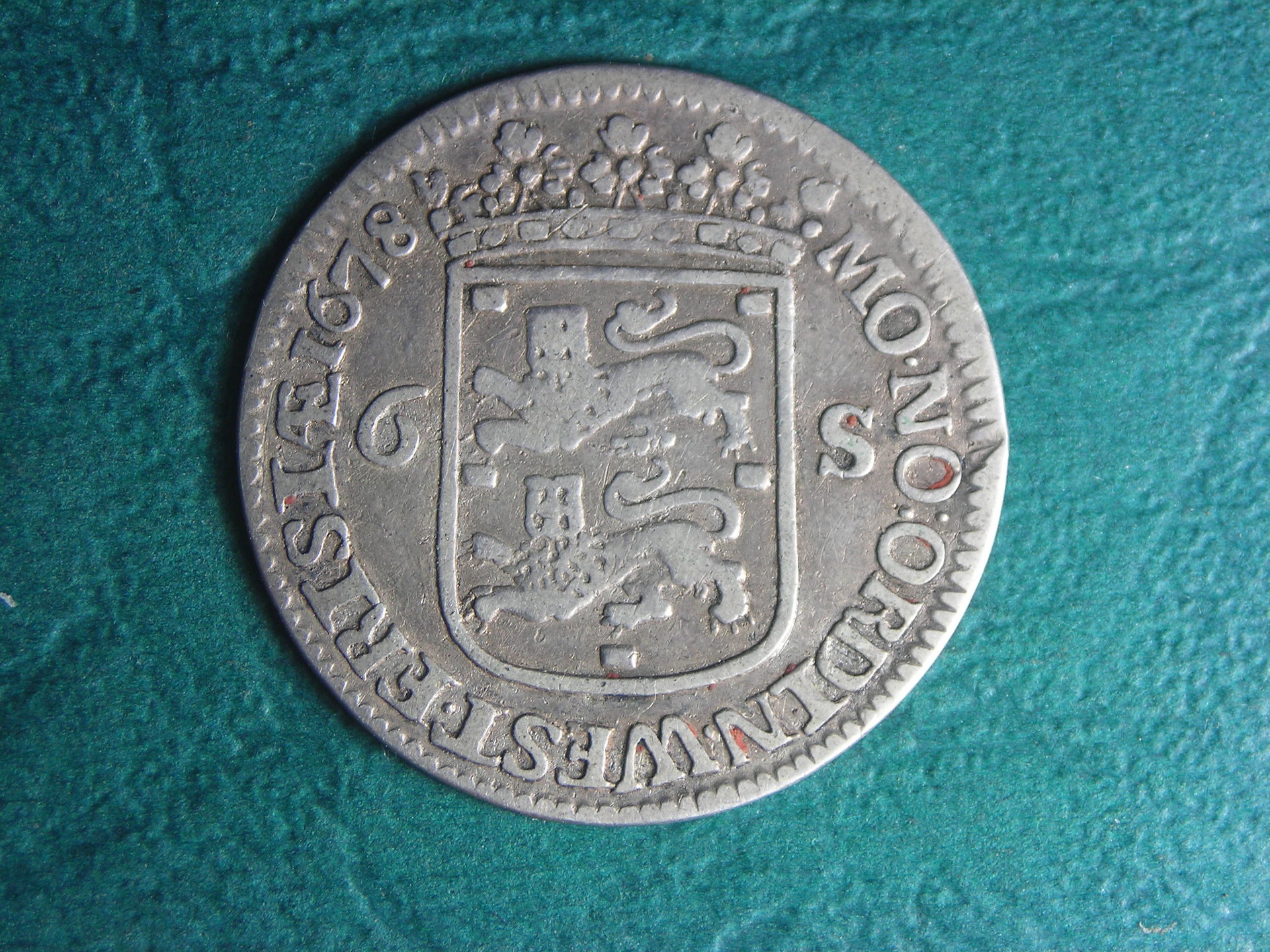

    Hope I am not jumping the gun here, long time since I have posted anything on this thread. 1678 six stuiver from West Frisiae, called a "Scheepjesschelling" which I assume means "Ships Shilling". 1678 WF 6 s obv.JPG 1678 WF 6 s rev.JPG

    Curtisimo, Kimotej, jj00 and 8 others like this.
  7. PaddyB

    PaddyB Eccentric enthusiast

    That is a stunning coin Ed!
    Here is my offering for 1678:
    1678 3D 1.JPG 1678 3D 2.JPG

    Curtisimo, Kimotej, jj00 and 6 others like this.
  8. panzerman

    panzerman Well-Known Member

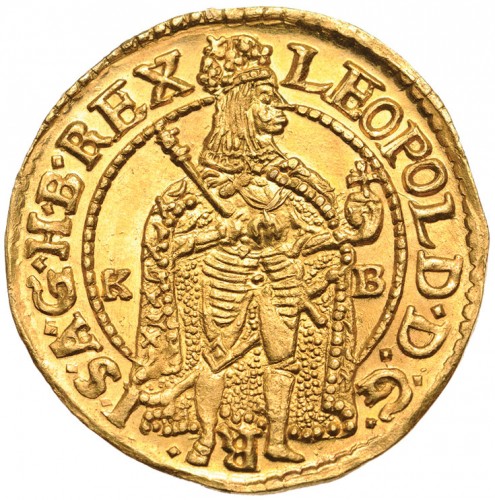

    I guess its a good time to go to the"Year of Our Lord' 1677

    Got this from Numizmatika Pannonia Terra Auction 34

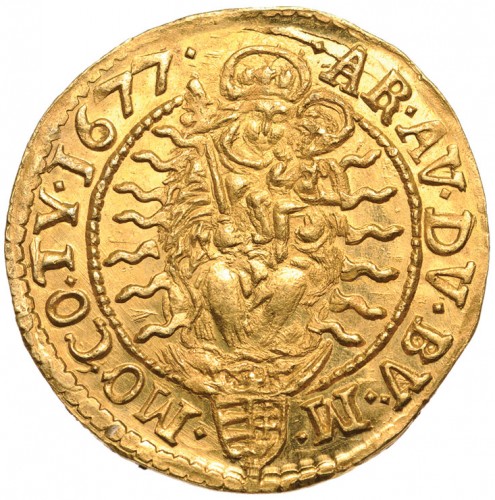

    FDC 1677 K-B Kremintz Mint/ Hungary 14661e.jpg 14661h.jpg
    Holy Roman Emperor Leopold I 1657-1705

  9. PaddyB

    PaddyB Eccentric enthusiast

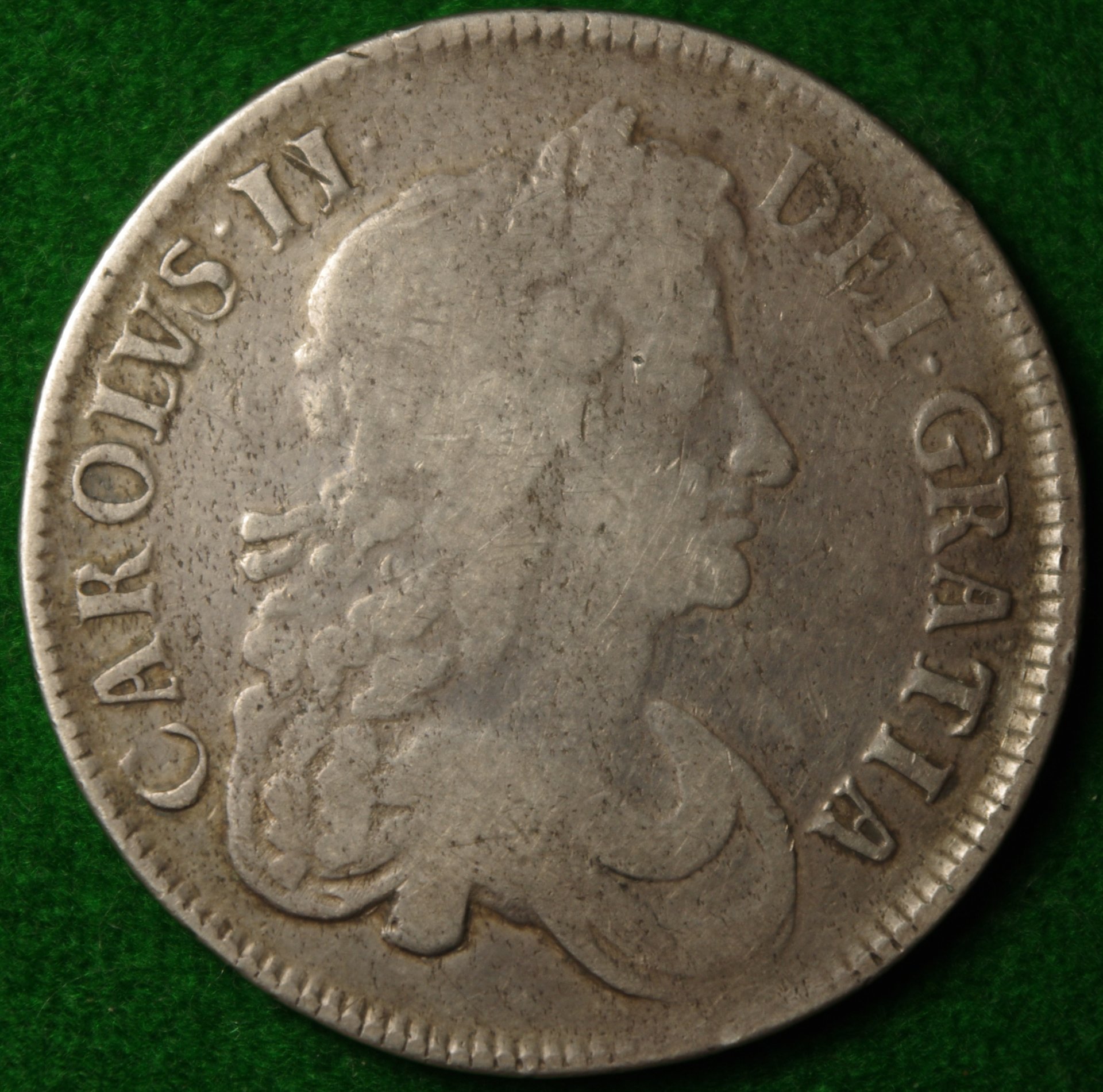

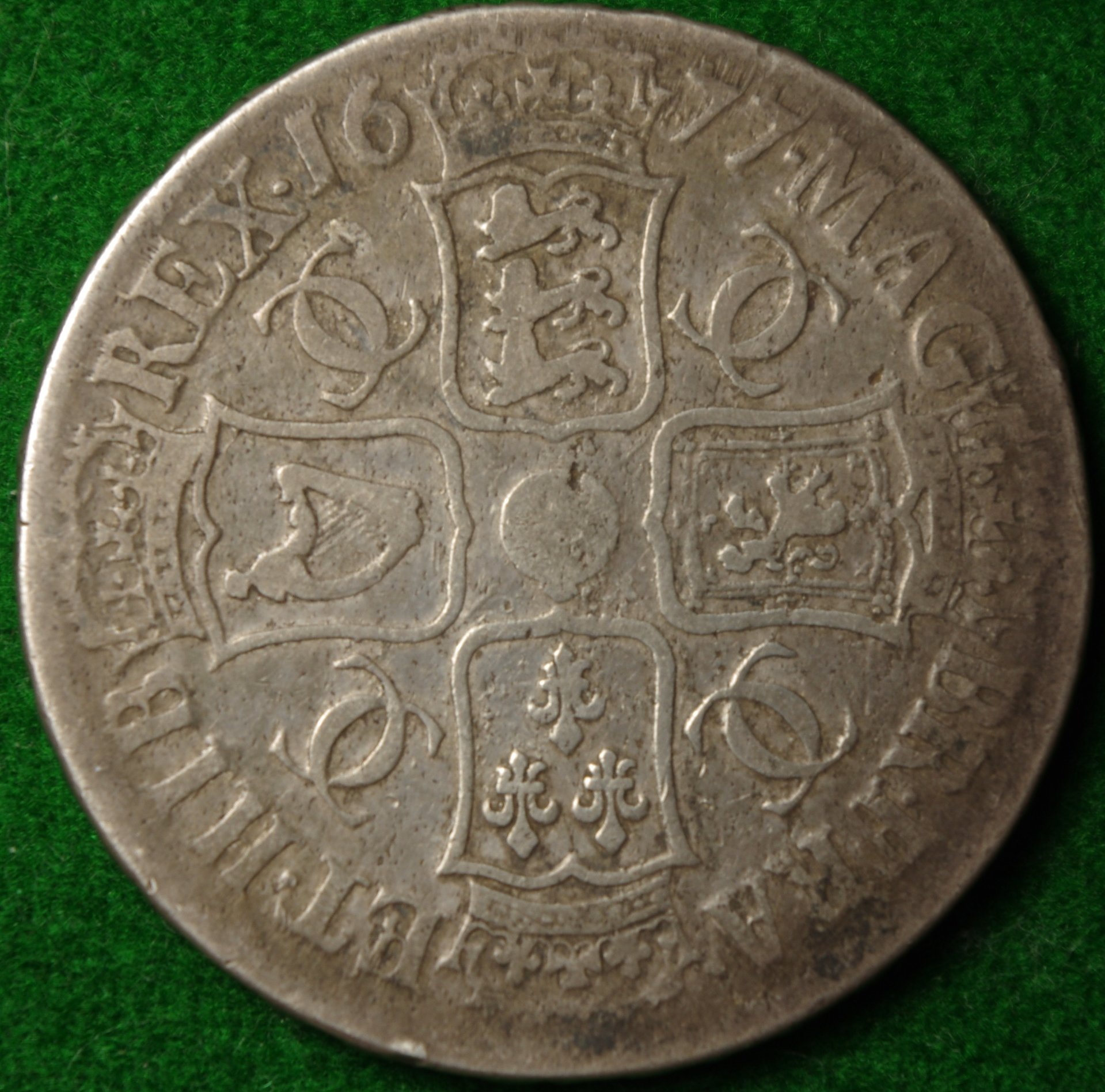

    I have something a bit better for 1677 - a Crown:
    1677 Cr 2.JPG 1677 Cr 1.JPG

    Curtisimo, Kimotej, panzerman and 6 others like this.
  10. semibovinian

    semibovinian Well-Known Member

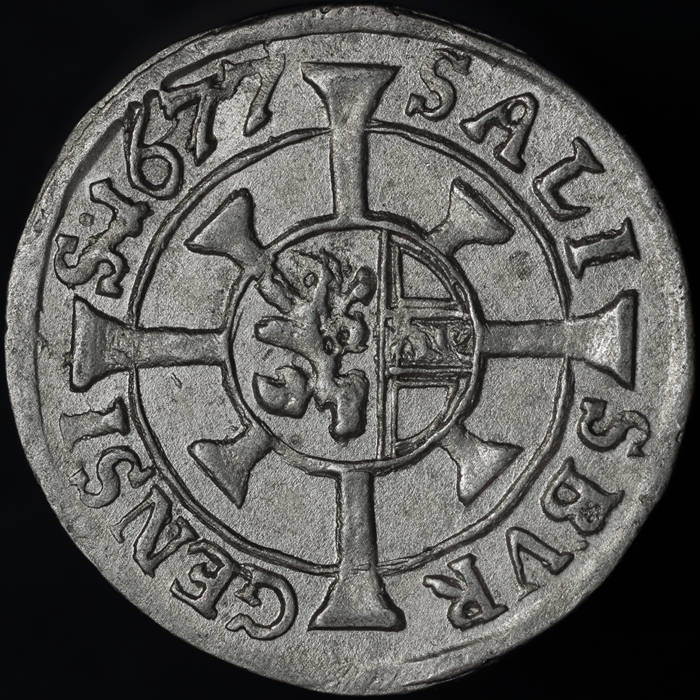

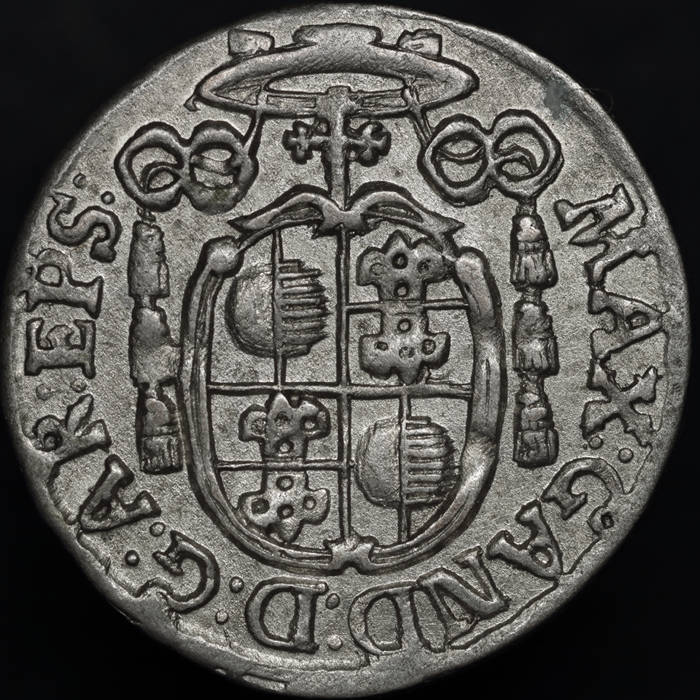

    1677 -- Salzburg, 1 kreuzer:

    1677_AT_Salzburg_1kreuzer_1a_DPP_2017_10_29__0007_1.jpg 1677_AT_Salzburg_1kreuzer_1b_DPP_2017_10_29__0004_1.jpg

    Curtisimo, jj00, Kimotej and 6 others like this.
  11. PaddyB

    PaddyB Eccentric enthusiast

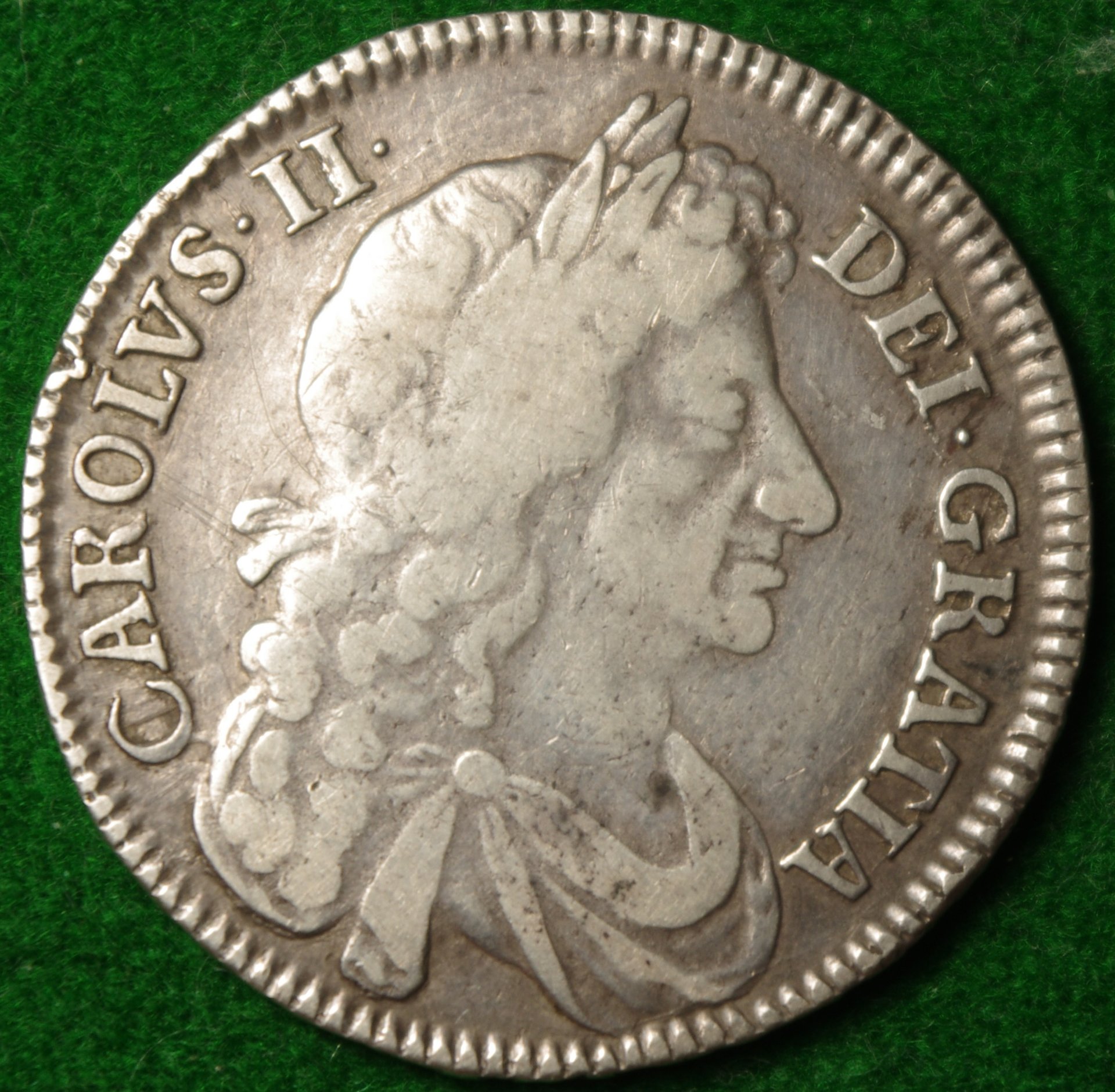

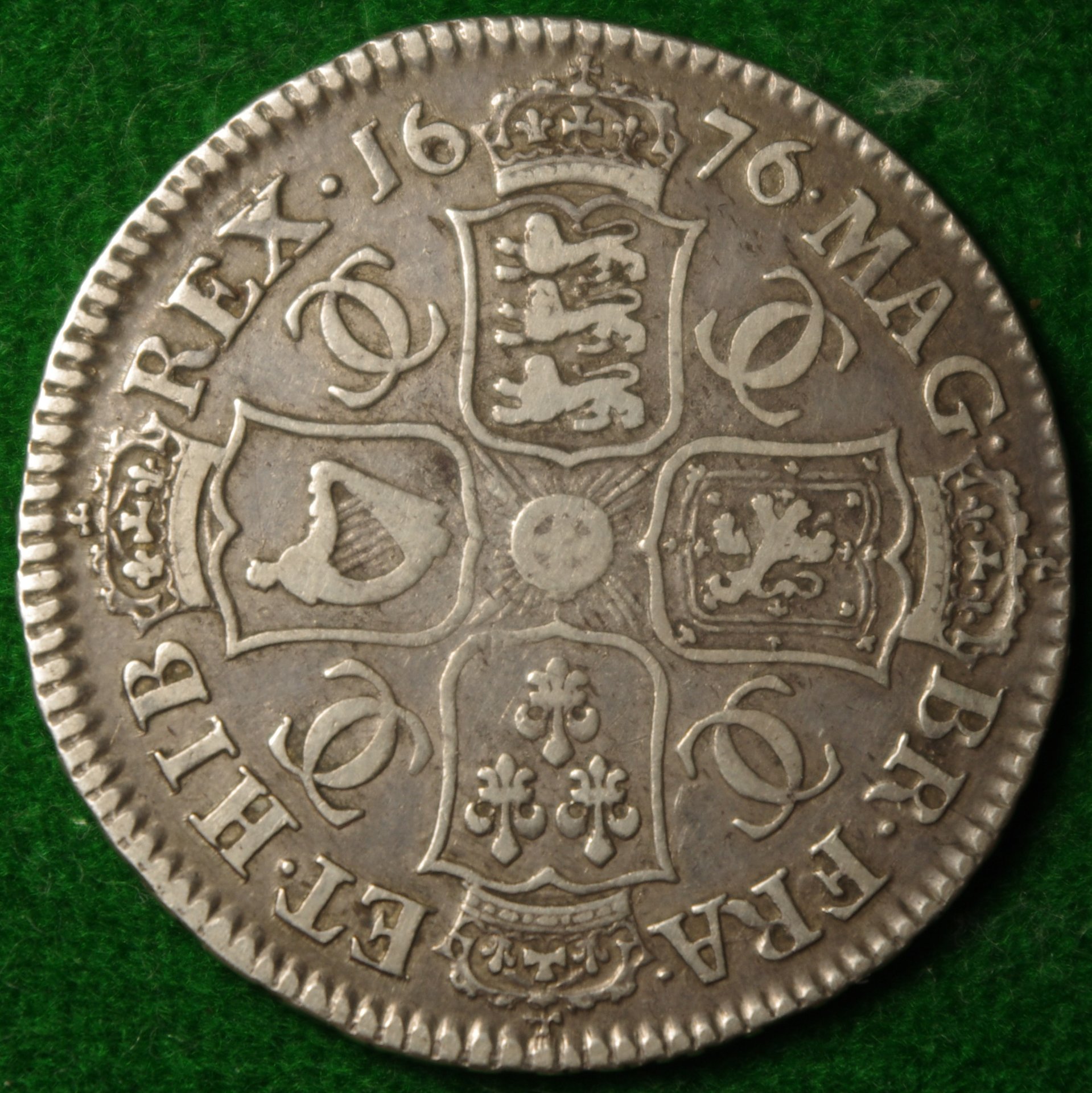

    For 1676 I have a rather nice Half Crown. After 1670 my date run becomes fragmented, so I hope there are others in the wings to keep things going!
    1676 HC 1.JPG 1676 HC 2.JPG

    Curtisimo, jj00, Kimotej and 6 others like this.
  12. semibovinian

    semibovinian Well-Known Member

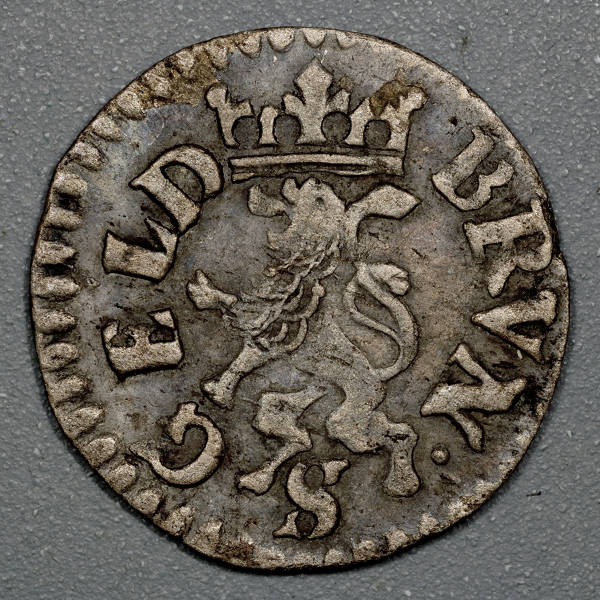

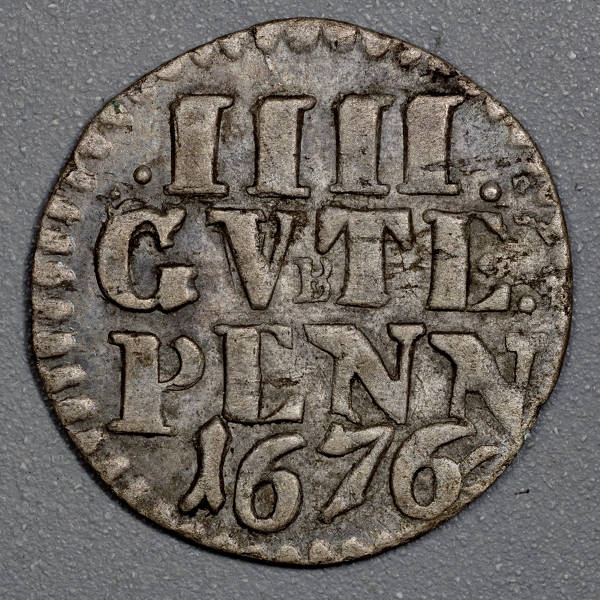

    1676 -- Brunswick, 4 pfennig:

    1676_DE_Brunswick_4pfennig_1a_DPP_2015_10_21__0041_2.jpg 1676_DE_Brunswick_4pfennig_1b_DPP_2015_10_21__0042_2.jpg

    Curtisimo, jj00, Kimotej and 7 others like this.
  13. Siberian Man

    Siberian Man Senior Member Moderator

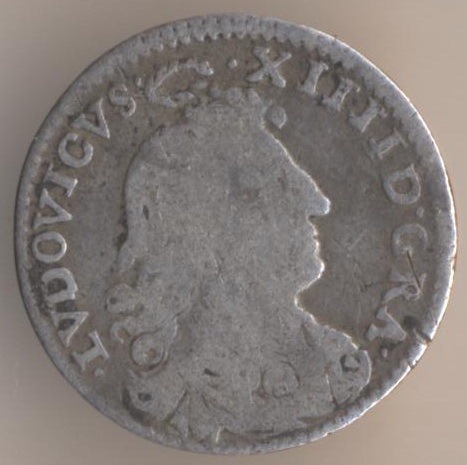

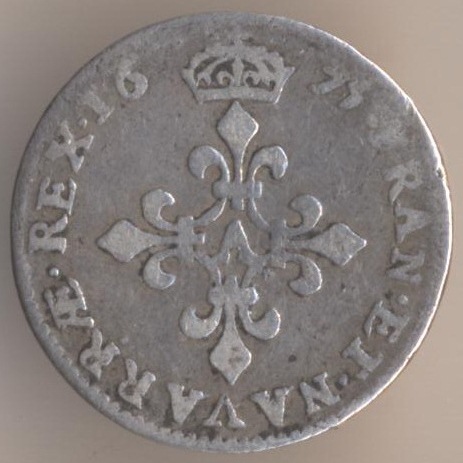

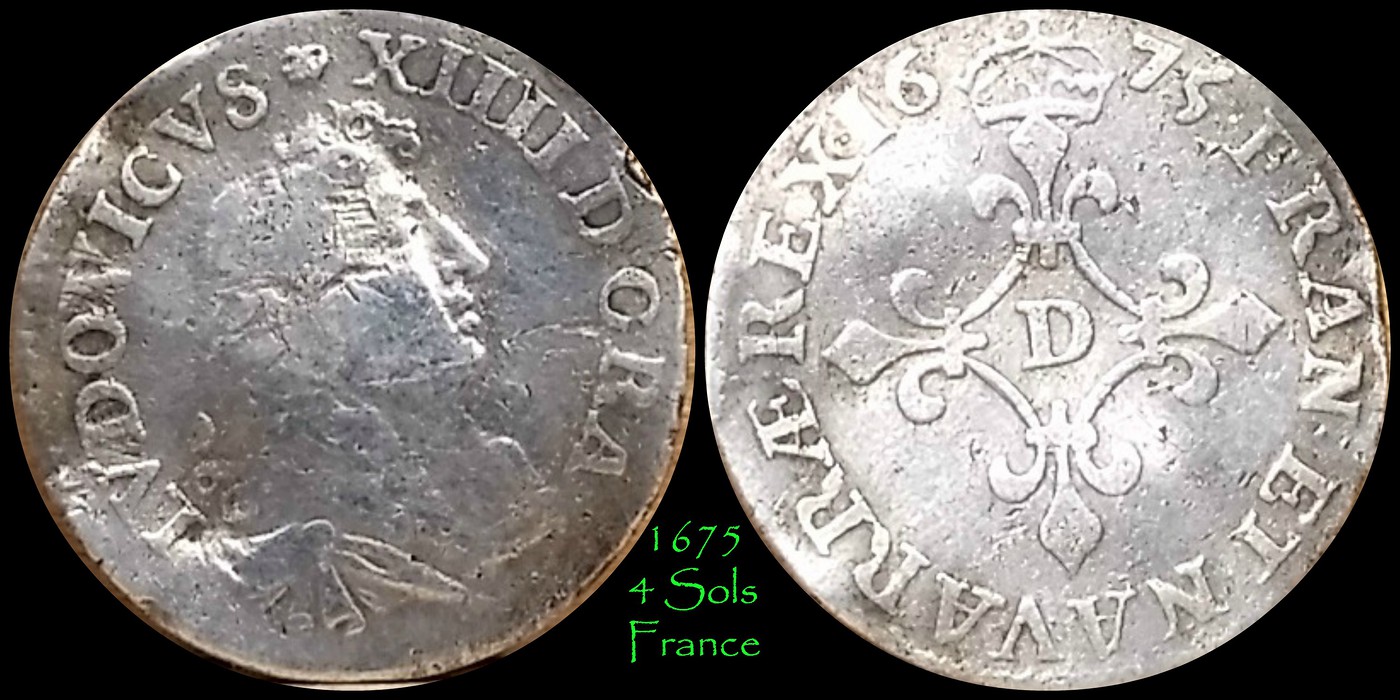

    France.
    4 sols 1675.
    165.jpg 166.jpg

    Curtisimo, jj00, Kimotej and 5 others like this.
  14. PaddyB

    PaddyB Eccentric enthusiast

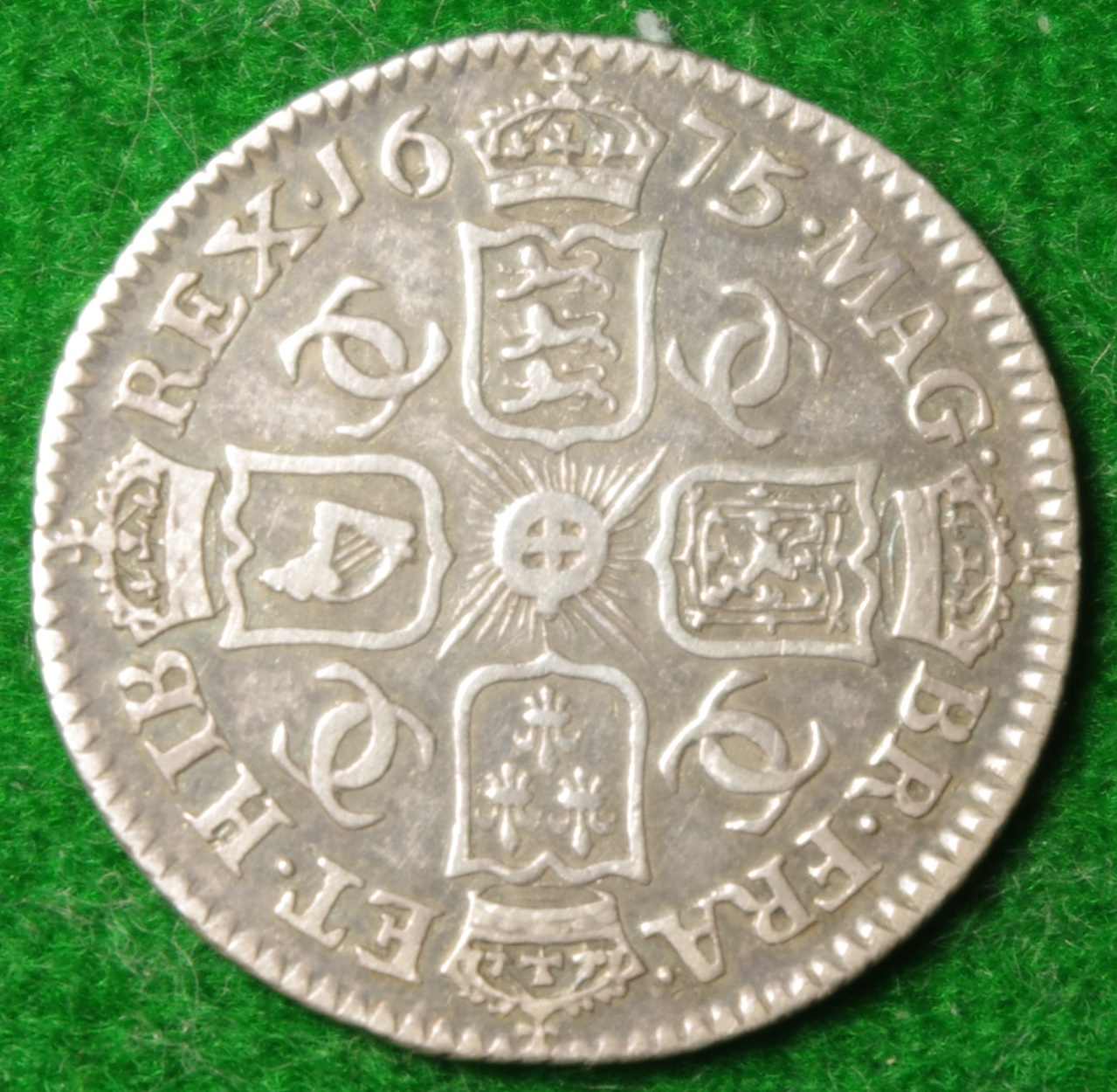

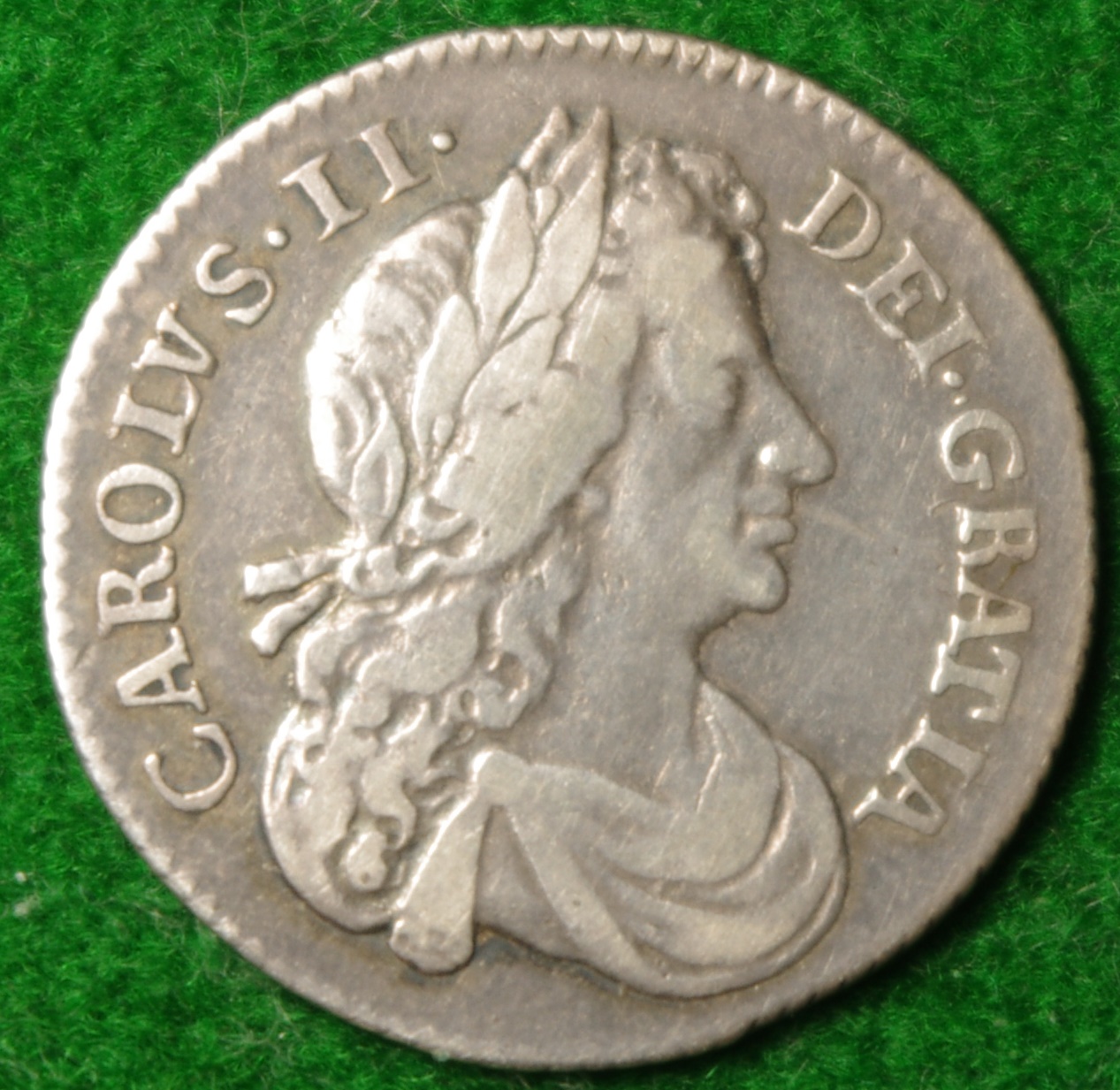

    For 1675 I have a sixpence - these are extraordinarily hard to get these days:
    1675 6D 1.JPG 1675 6D 2.JPG

    Curtisimo, jj00, Kimotej and 5 others like this.
  15. Kimotej

    Kimotej Active Member

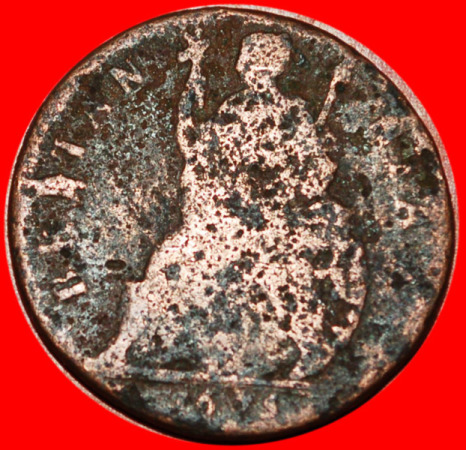

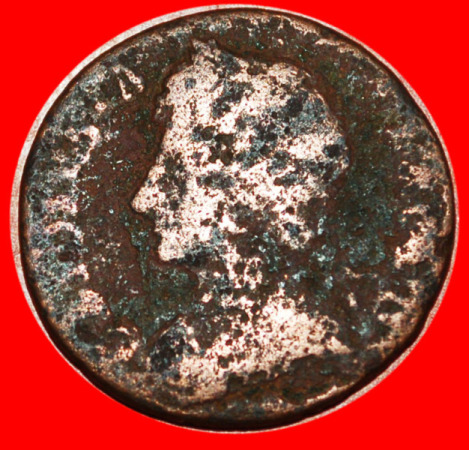

    Great Britain Farthing 1675. Poor and very worn example but the variety with a dot after Carolus
    Storbritannien Farthing 1675 variety w dot after Carolus a.jpg Storbritannien Farthing 1675 variety w dot after Carolus b.jpg

    Curtisimo, jj00, semibovinian and 2 others like this.
  16. Jimski

    Jimski Well-Known Member

    Here’s a massive content dump. I was fascinated about what I recently discovered about this coin. I was documenting it for myself, and I offer it here for you too.

    1675 British halfcrown, Charles II, S-3367

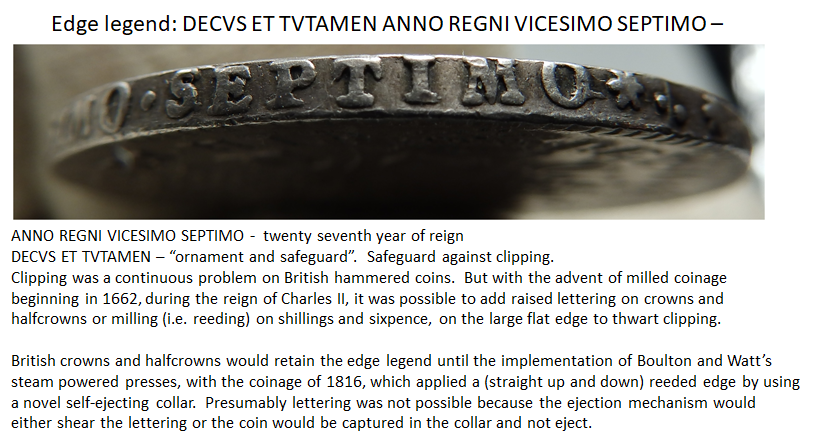

    As I photographed this coin recently, I was surprised to find evidence that its raised edge legend was imprinted as the coin was struck. I thought the edge legend would be applied to the planchet or the stamped coin by a machine separate from the press, a machine similar to the Castaing machine. But a massive edge to edge die crack on this coin provides the evidence that the edge legend was applied during the strike. More on this later.

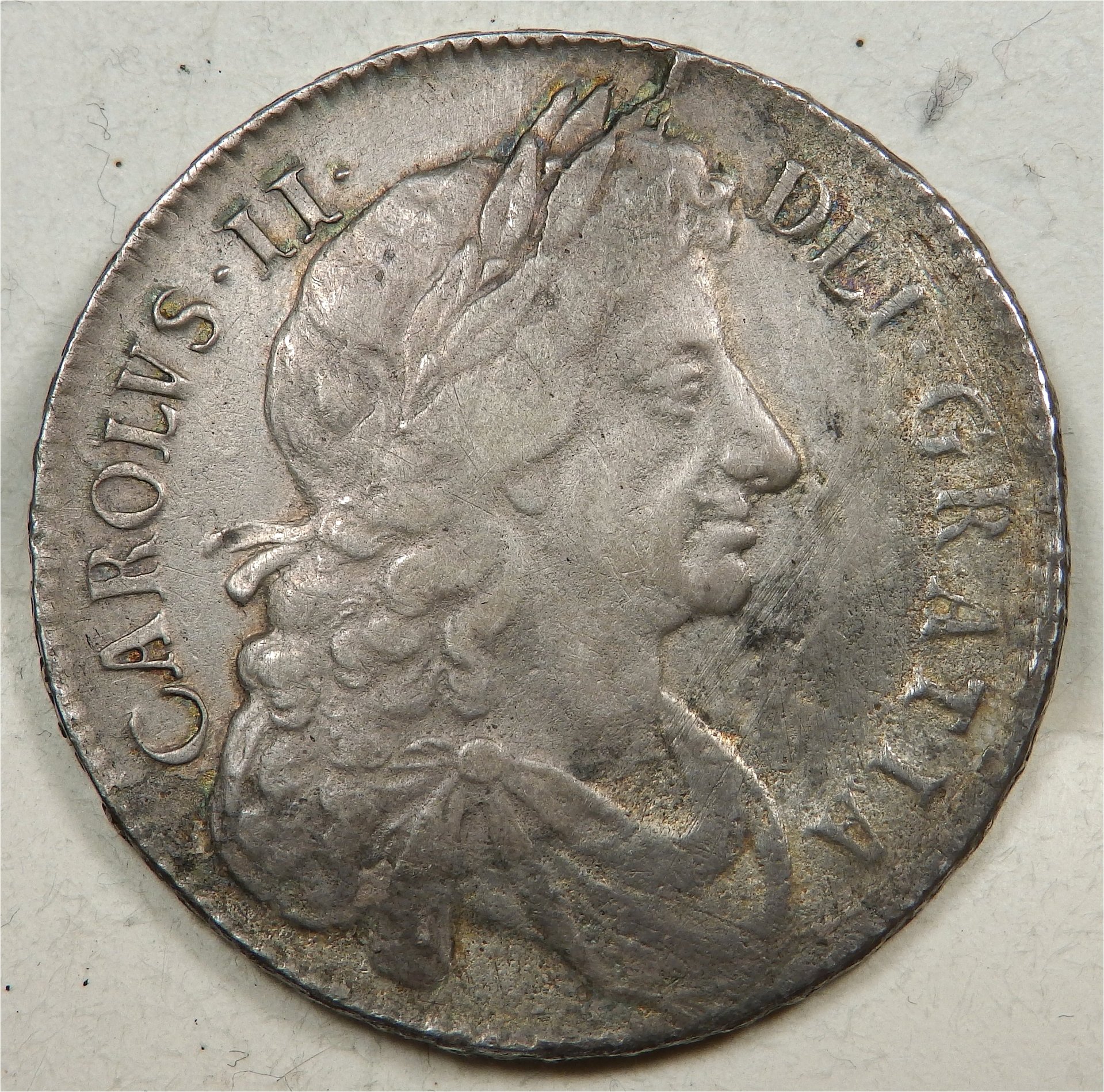

    1675 Halfcrown obv.jpg

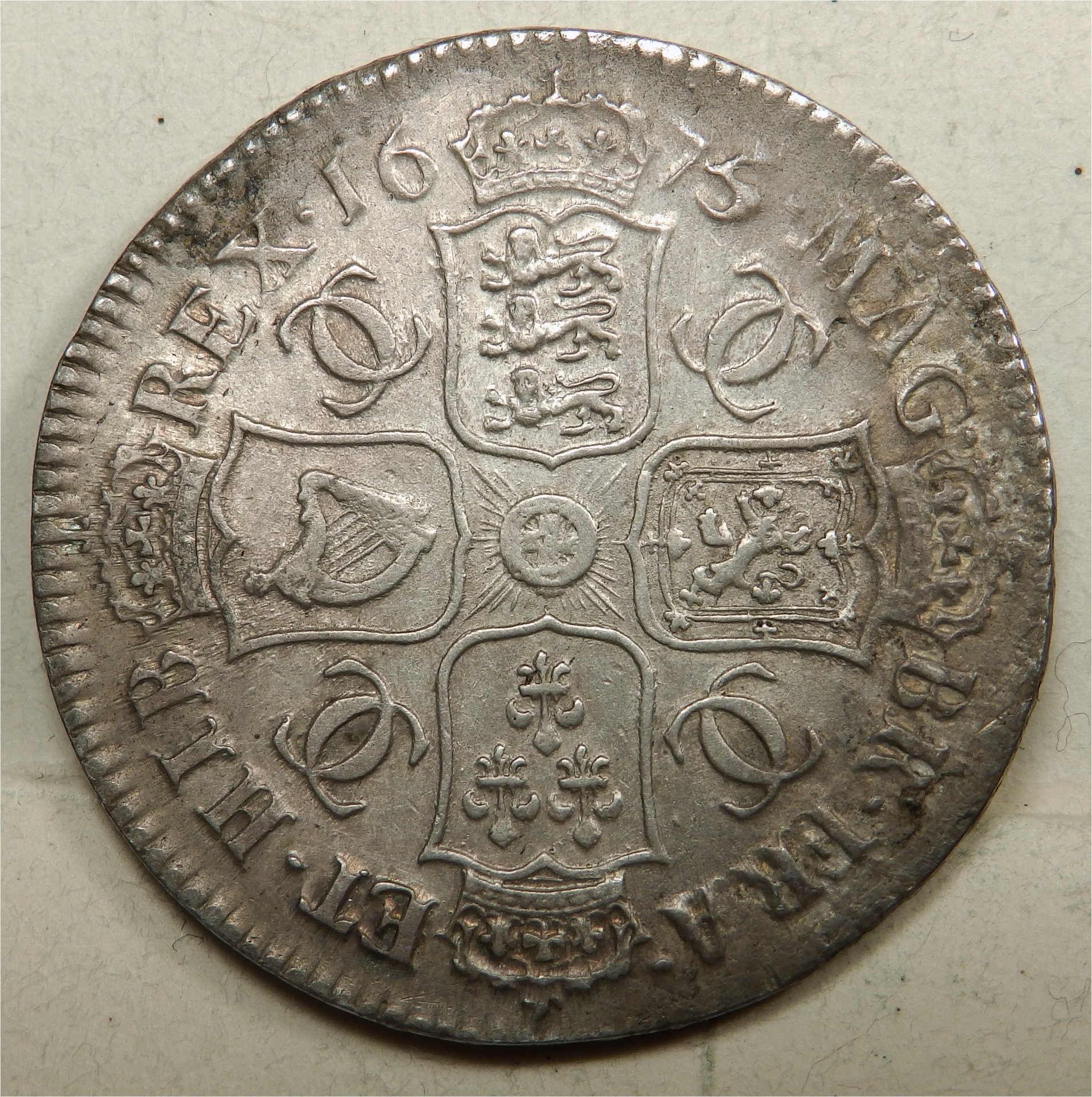

    1675 Halfcrown rev.jpg

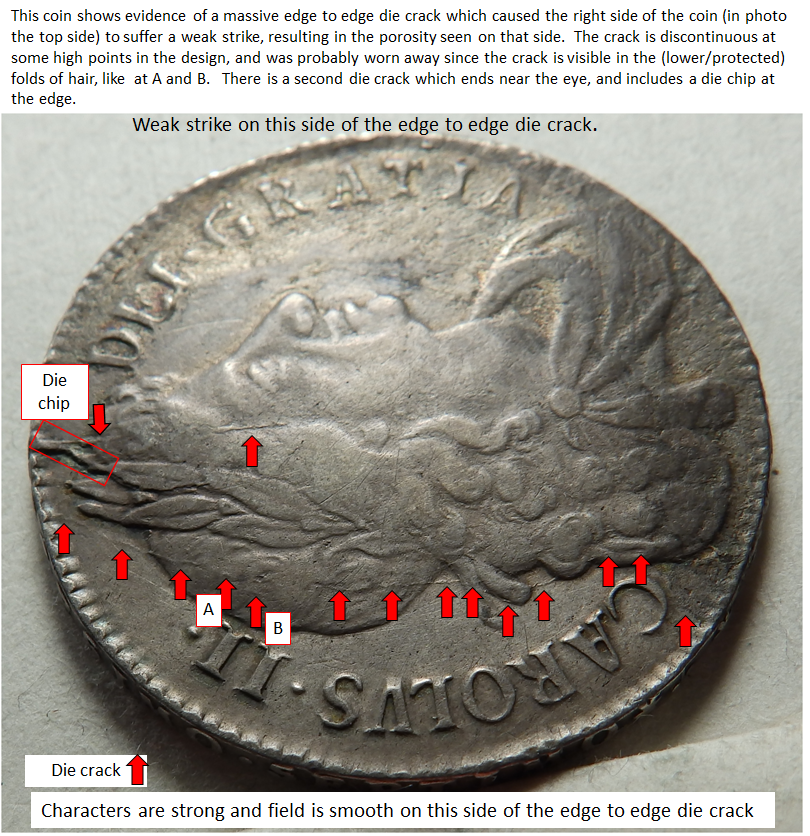

    Die Cracks

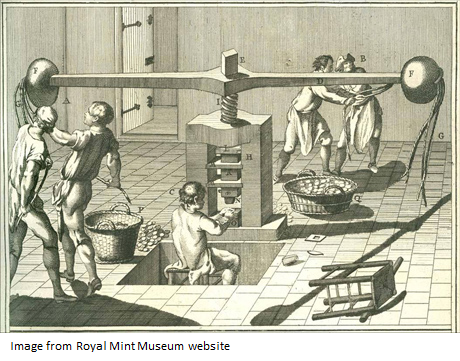

    To get some idea about the difficulty imprinting the edge legends, consider that the milling press could stamp out coins at 30 per minute. The poor sole at the press needed to remove the previous coin and place the next planchet every 2 seconds. (1) There was no time to be fussing with coins in collars. So how did they accomplish the edge lettering?

    Peter Blondeau, a former engineer from the Paris Mint, was given a grant by the Royal Mint to provide the equipment for the milled coinage of Charles II, the first milled coinage to achieve continued circulation in England. Blondeau had invented a method for applying the lettering to the edge of a milled coin, and the Royal Mint wanted this. Blondeau was secretive about his method for edge lettering, and numismatists aren’t sure how the raise edge characters were implemented. His machinery is inferred from coins, surviving dies and the like.

    Before Charles II’s milled coinage, Blondeau minted some patterns and milled coinage of Oliver Cromwell from 1651 to 1656. But the traditional (hammered) moneyers intrigued against him, and after Cromwell died, Blondeau returned to France. Blondeau’s machinery was mothballed, and coin hammering won the day. Later Blondeau would be summoned by the Royal Mint (about 1661), which was intent on applying edge lettering as a clipping countermeasure on the Charles II milled coinage.

    A paper by Peter Gaspar, Simon’s Cromwell Crown Dies in the Royal Mint Museum and Blondeau’s Method for the Production of Lettered Edges, (2) discusses two competing proposals about the method of Blondeau’s edge lettering on the Cromwell coinage.

    Gaspar champions his proposal that the lettering was applied by a Castaing like machine which rolled the letters onto the edge of the planchet, and the planchets were later struck without a collar.

    Gaspar also discusses the competing method at length. In this method, the lettered edge would have been imprinted during the strike. I believe that on my coin, the edge lettering was applied during the strike too. But mine is a coin of 1675, and does not imply that Gaspar was incorrect regarding his study of the earlier coinage. Blondeau’s method of edge lettering could have changed over time.

    Gasper’s paper describes the competing method proposed by William J. Hocking as follows:
    The use of a stencil-like steel strip held in a collar to apply edge lettering was believed by Hocking to constitute the 'new invention, not yet practised in any state in the world', that Blondeau himself claimed. The thin strip of steel, according to Hocking, carried the inscription with which the edge of the coin was to be marked as a series of perforations shaped as letters. The steel strip (or several overlapping strips) was placed within a smooth collar, and the blank to be coined was placed within the steel strip. When the blank was struck with the dies it would expand through the perforations of the inscribed band and be contained by the smooth collar. The edge would thus be marked with raised lettering whose relief corresponds to the thickness of the inscribed band. The coin and band together would finally be knocked out of the smooth collar, and the band would spring free leaving the finished coin.

    It seems that coins being struck every 2 seconds, would require that the steel strip, smooth collar and planchet be placed and removed from the press as an assembly. Gasper’s paper doesn’t say if the collar was free or attached to the press.

    So ... it’s not clear to me how the raised edge could have been stamped on my coin in 1675. But I believe my coin clearly shows that the edge lettering was stamped at the press by the force of the die … a separate machine to apply the edge lettering was not used on my coin.

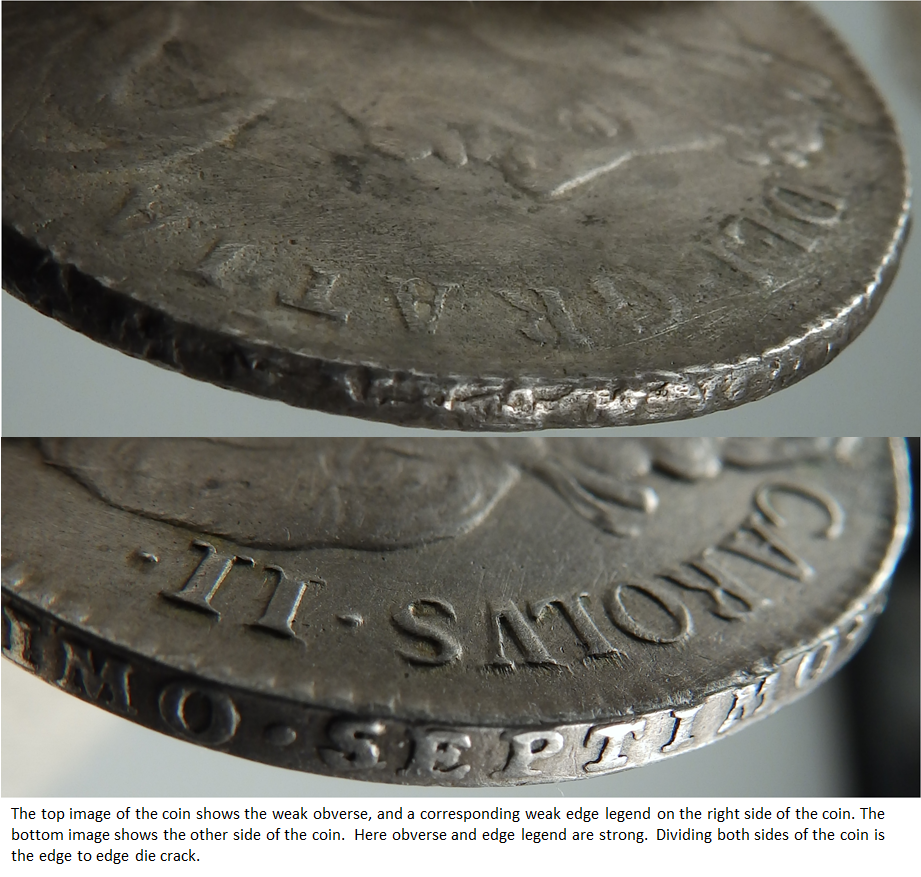

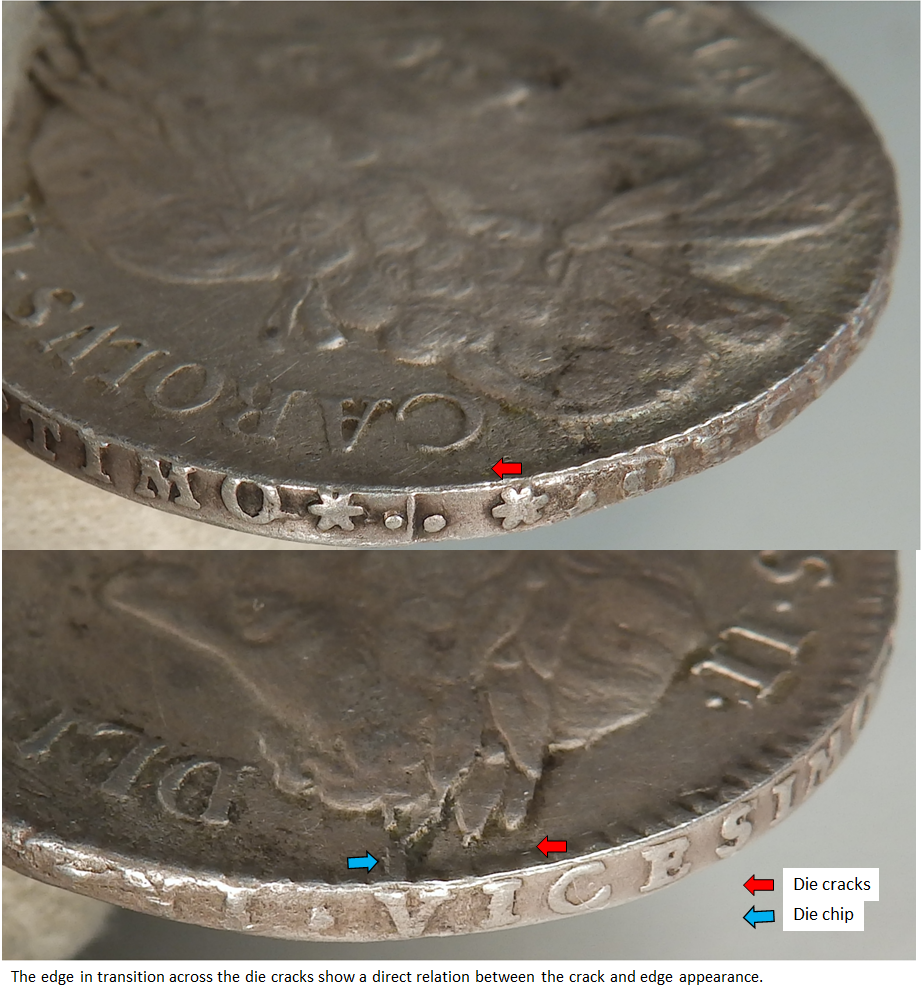

    The evidence that the raised edge legend was imprinted on the coin press for this 1675 coin follows – The state of the edge lettering on this coin indicates that the lettering was applied during the strike. This is evident because the condition of the edge lettering matches the condition of the strike on the faces. The left coin faces and edge lettering are strong, and the right faces and edges are degraded. This shows that the die crack affected the edge lettering, and therefore the edge lettering must have been applied in the strike. If a separate machine was used to apply the edge legend, the edge legend would not be so severely affected by the cracked die.

    1) http://www.royalmintmuseum.org.uk/h...n-the-past/the-early-modern-period/index.html

    (2) THE BRITISH NUMISMATIC JOURNAL 1976 (vol 45) pg 55, The British Numismatic Society https://www.britnumsoc.org/publications/Digital BNJ/pdfs/1976_BNJ_46_9.pdf
    This document was listed in the bibliography of Wikipedia page https://en.wikipedia.org/wiki/Castaing_machine





    Last edited: Mar 5, 2018
    Curtisimo, talerman, jj00 and 5 others like this.
  17. PaddyB

    PaddyB Eccentric enthusiast

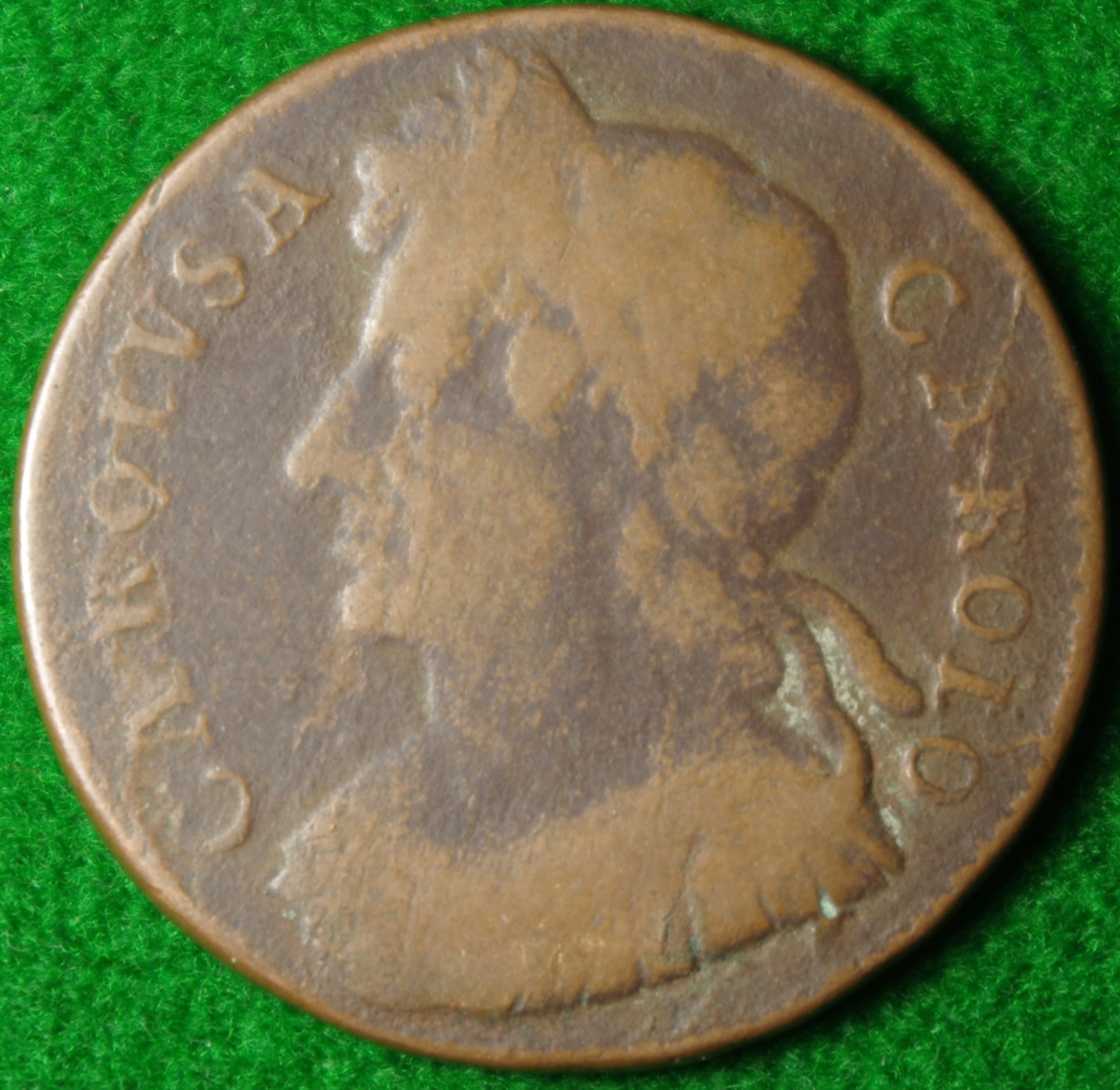

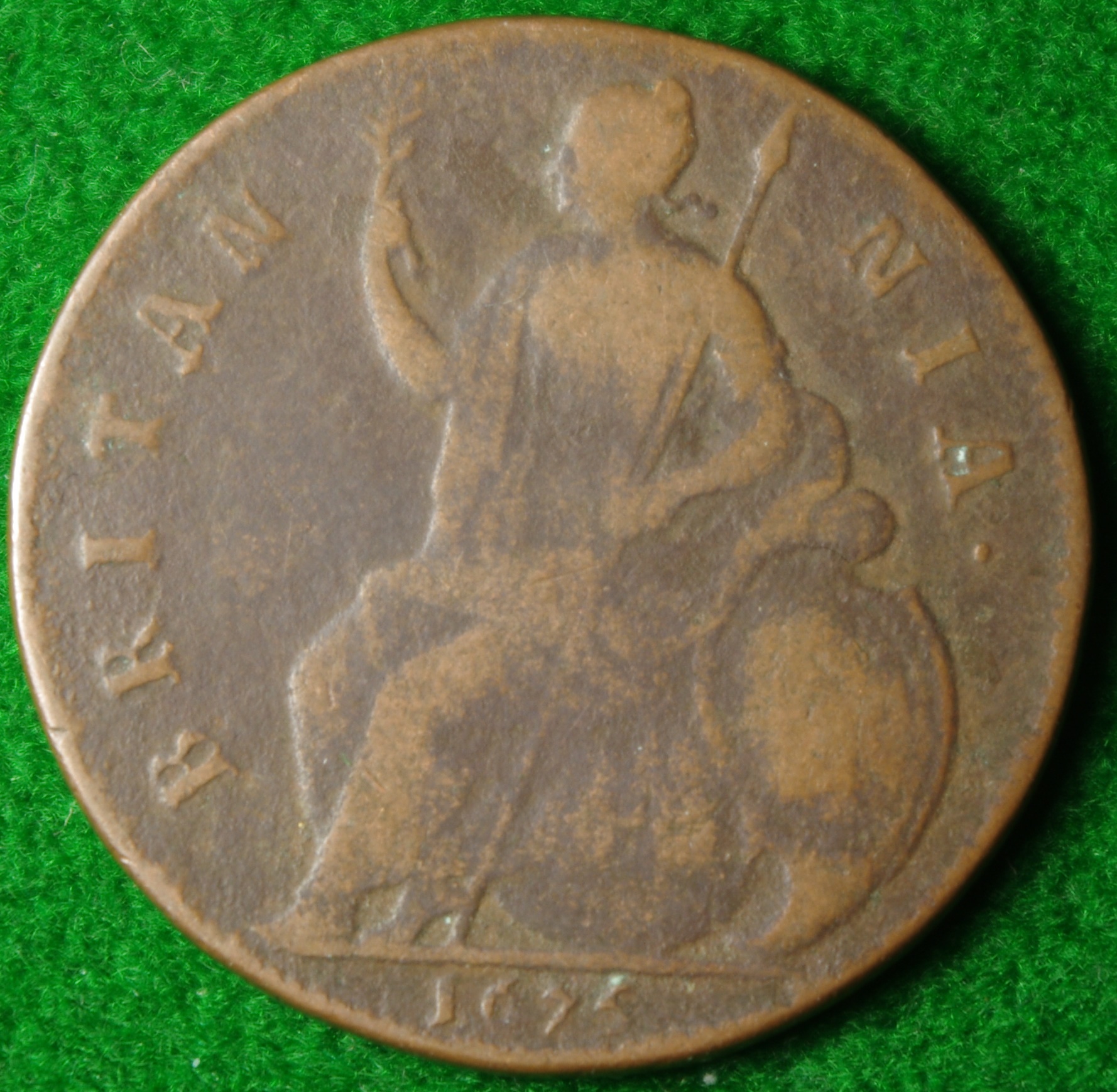

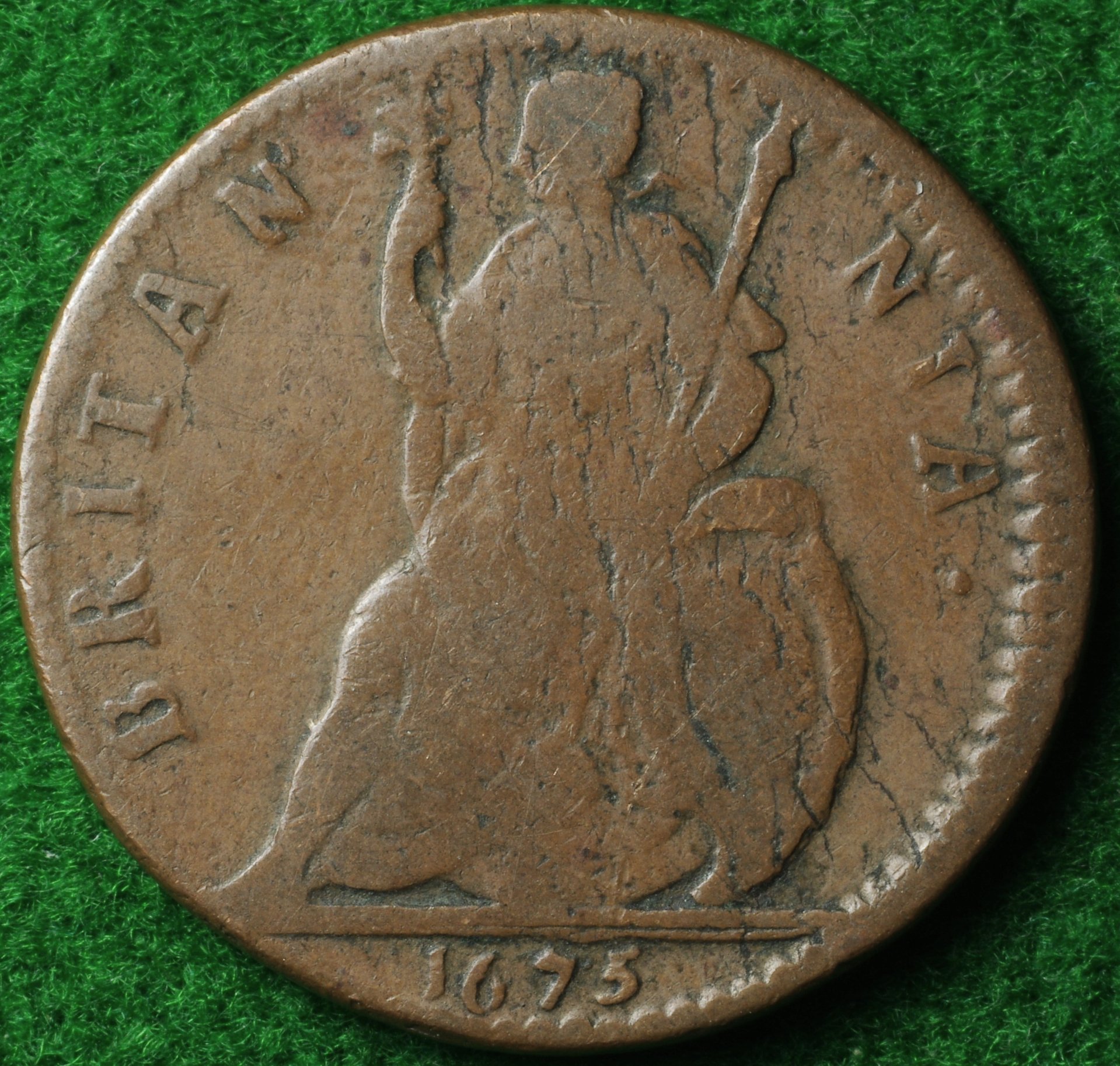

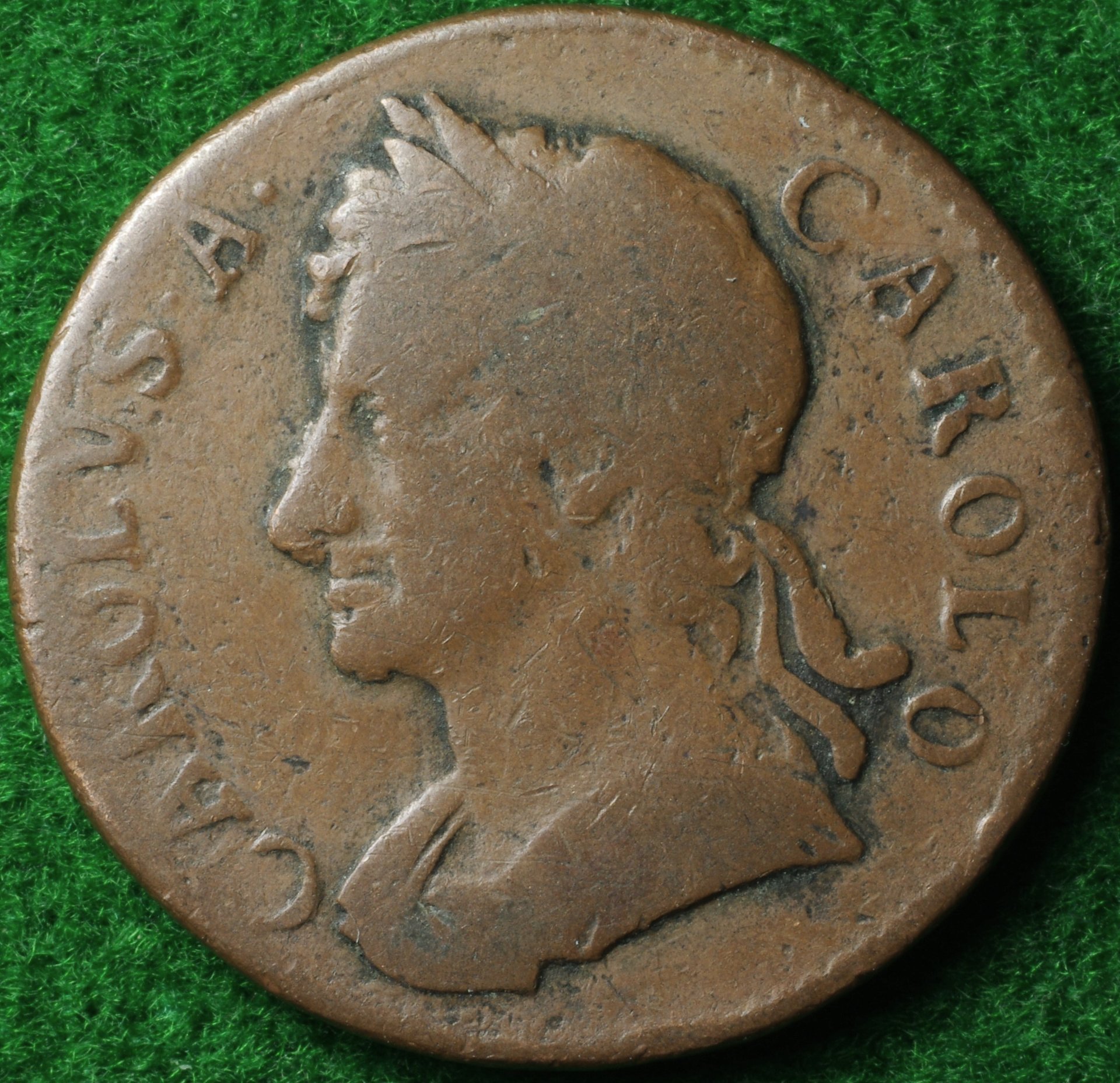

    I forgot that I now have scanned some bronze for 1675 - a farthing and a halfpenny:
    1675 F 1.JPG 1675 F 2.JPG 1675 HD 1.JPG 1675 HD 2.JPG

    Curtisimo, jj00, Kimotej and 4 others like this.
  18. dirty_brian

    dirty_brian Well-Known Member

  19. panzerman

    panzerman Well-Known Member

    Jimski, great writeup!

    Here is a
    AV 4 Dukaten 1675 Brieg Mint
    Georg IV Wilhelm Herzog zu Silesia-Lignitz-Brieg

    Curtisimo and Jimski like this.
  20. semibovinian

    semibovinian Well-Known Member

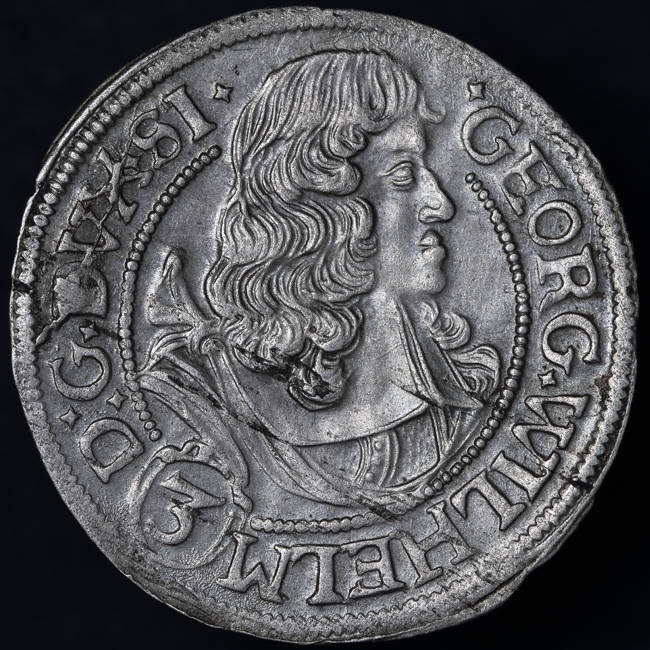

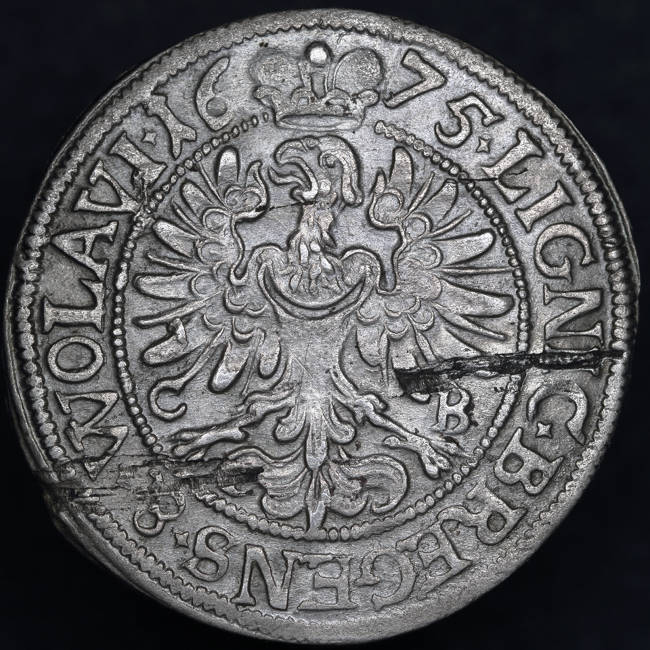

    1675 -- Silesia / Liegnitz-Brieg, 3 kreuzer:
    1675_DE_Silesia_Liegnitz_brieg_3kreuzer_1o_DPP_2017_09_10__0044_1.jpg 1675_DE_Silesia_Liegnitz_brieg_3kreuzer_1r_DPP_2017_09_10__0039_1.jpg

    Curtisimo, jj00, Kimotej and 4 others like this.
  21. PaddyB

    PaddyB Eccentric enthusiast

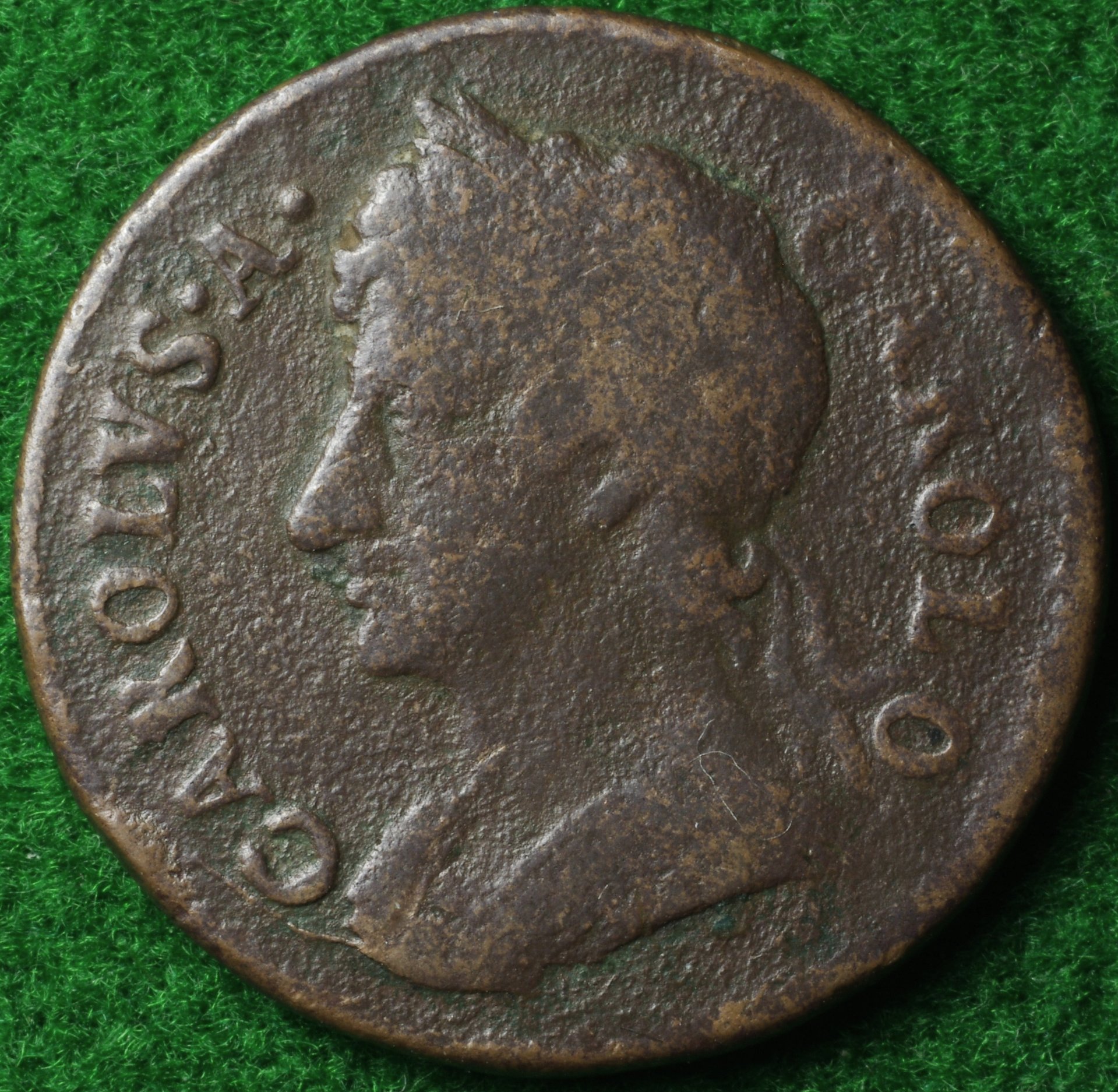

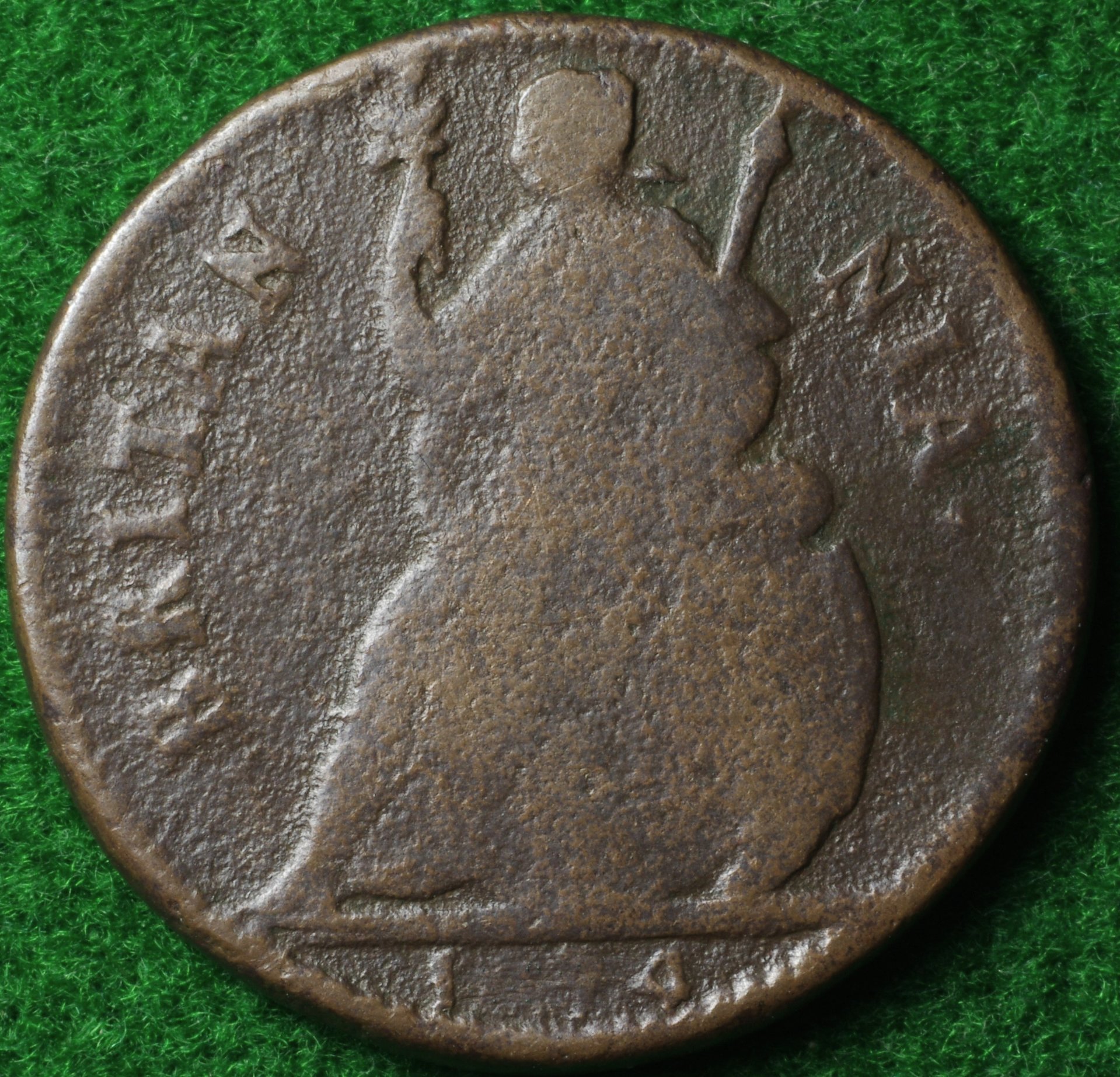

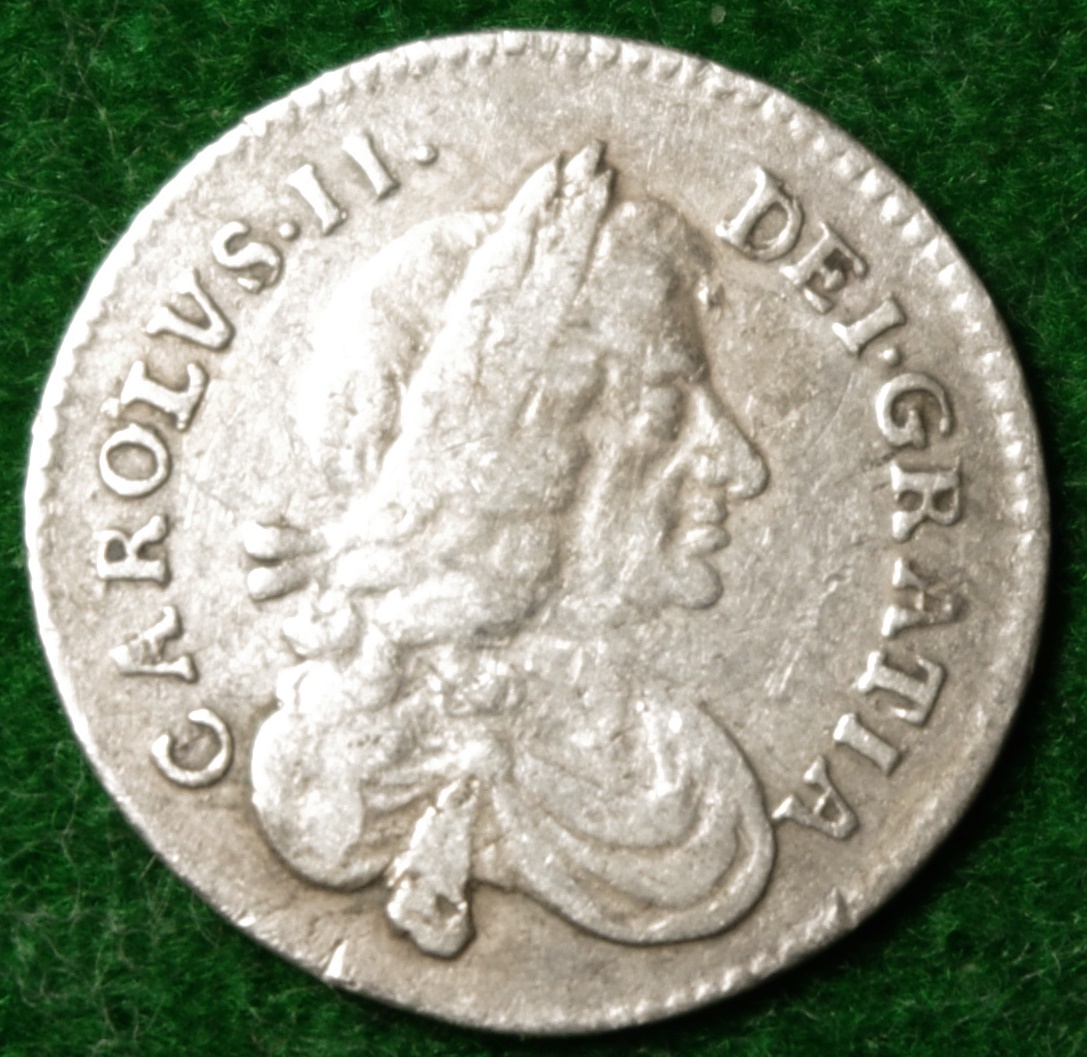

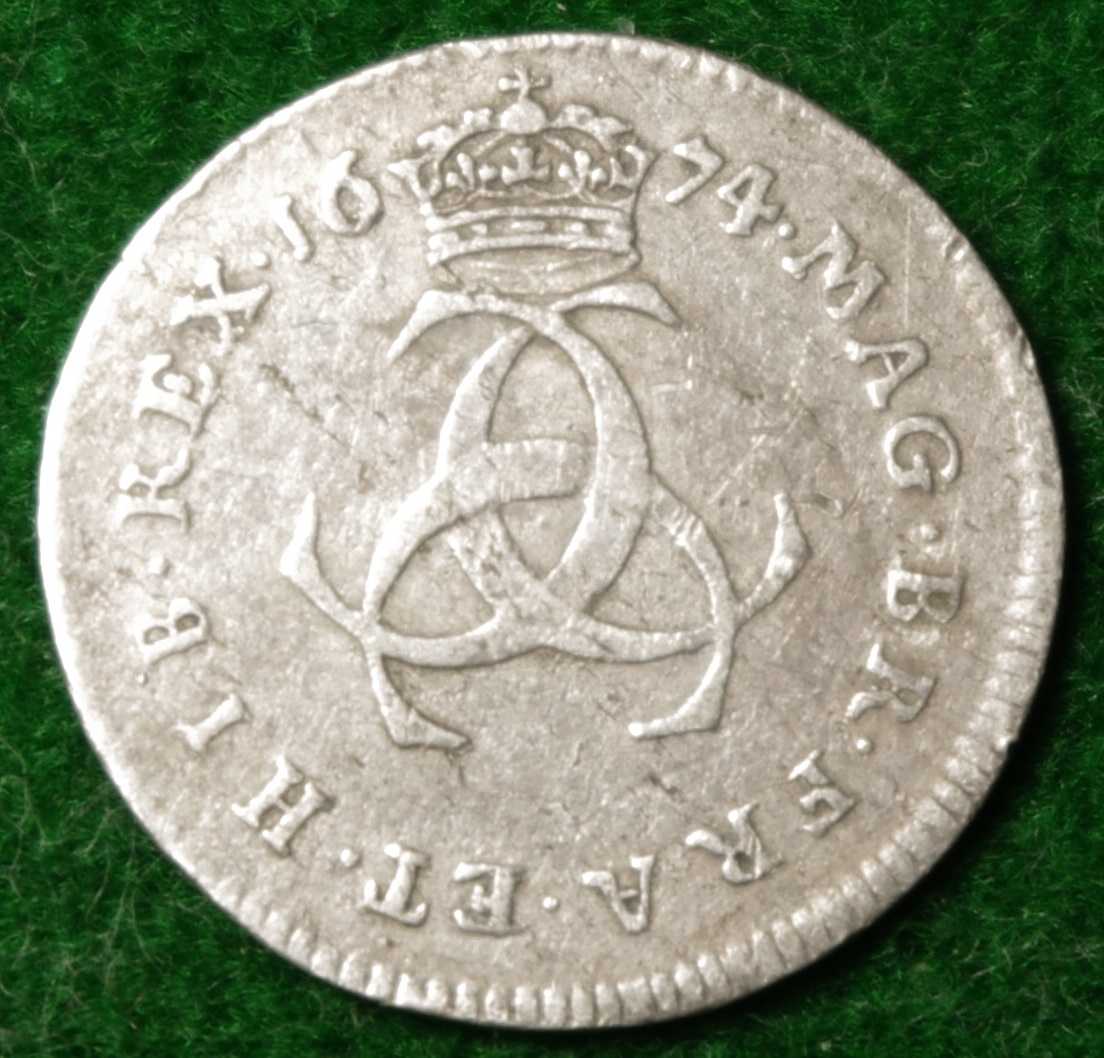

    I guess we move on to 1674. I have a threepence and a farthing for you:
    1674 3D 1.JPG 1674 3D 2.JPG 1674 F 1.JPG 1674 F 2.JPG

    Curtisimo, semibovinian, jj00 and 4 others like this.
