Dime blank planchet

Discussion in 'Error Coins' started by JayF, Apr 16, 2018.

  1. JayF

    JayF Active Member

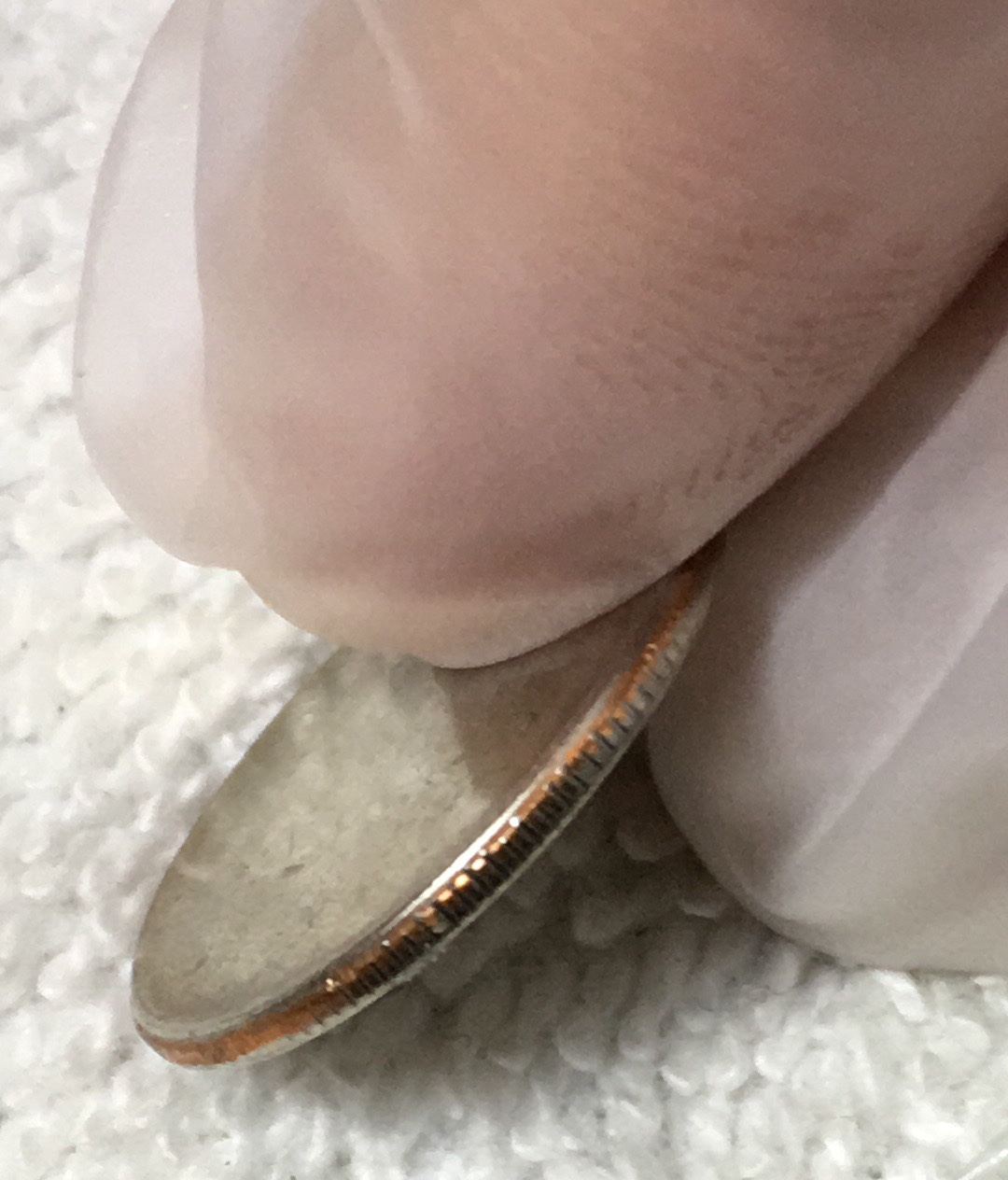

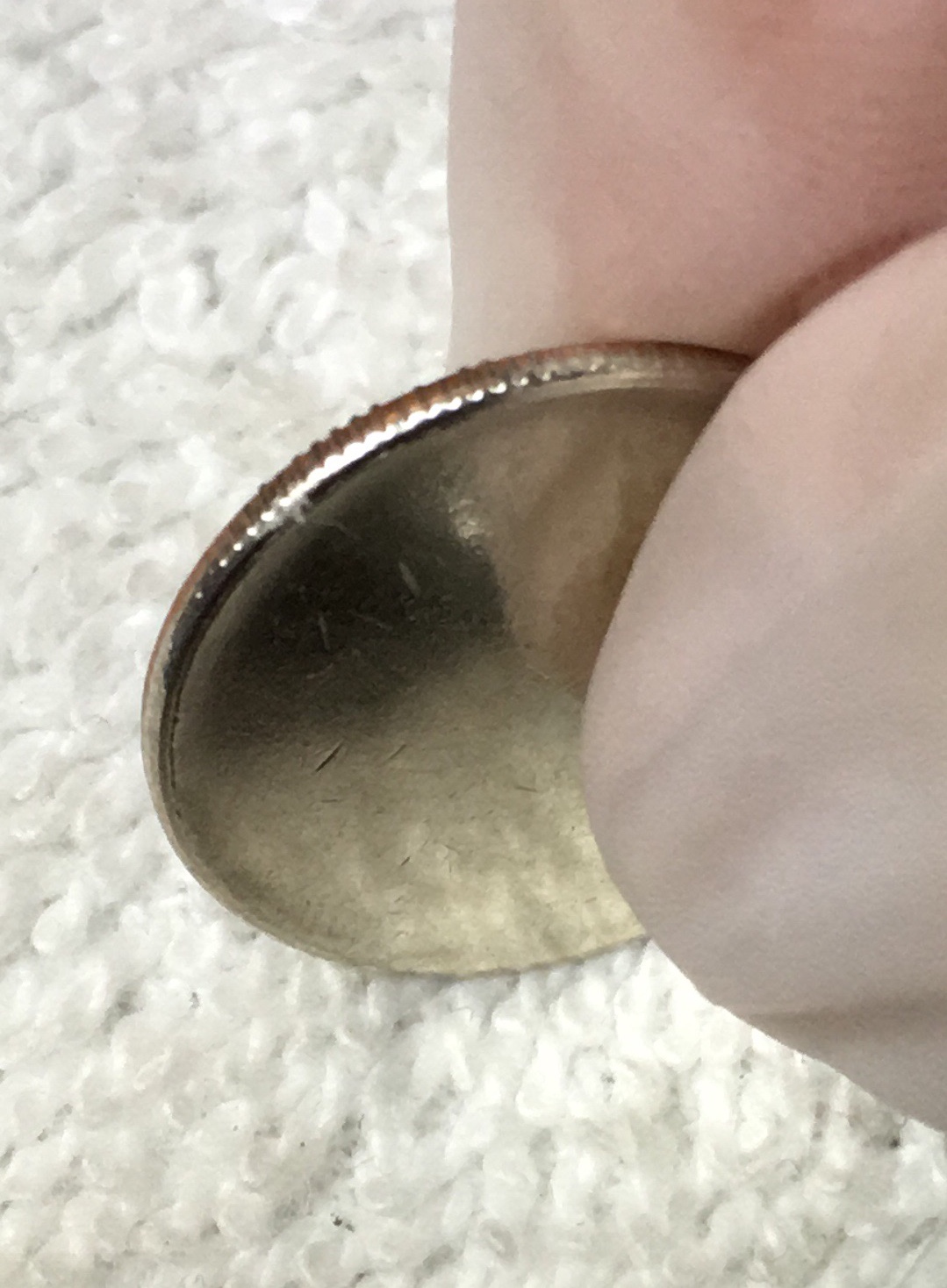

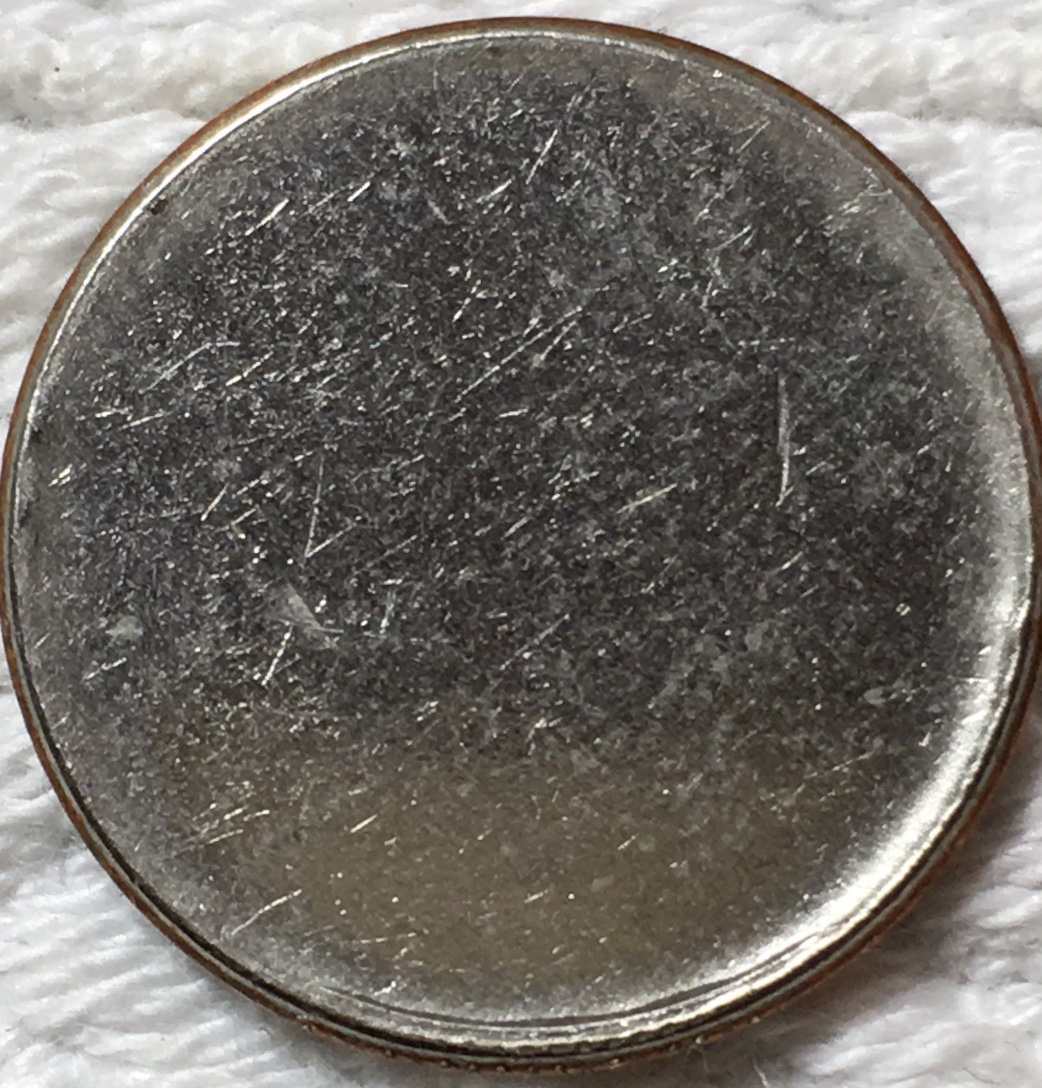

    I believe this is what is called a Type II (with rim) but there's also partial reed on it which also shows on the obverse which I'm not able to find information online. I'm not familiar with how the reeding of the coin is done, is it struck or is it part of the process when the rim is raised?

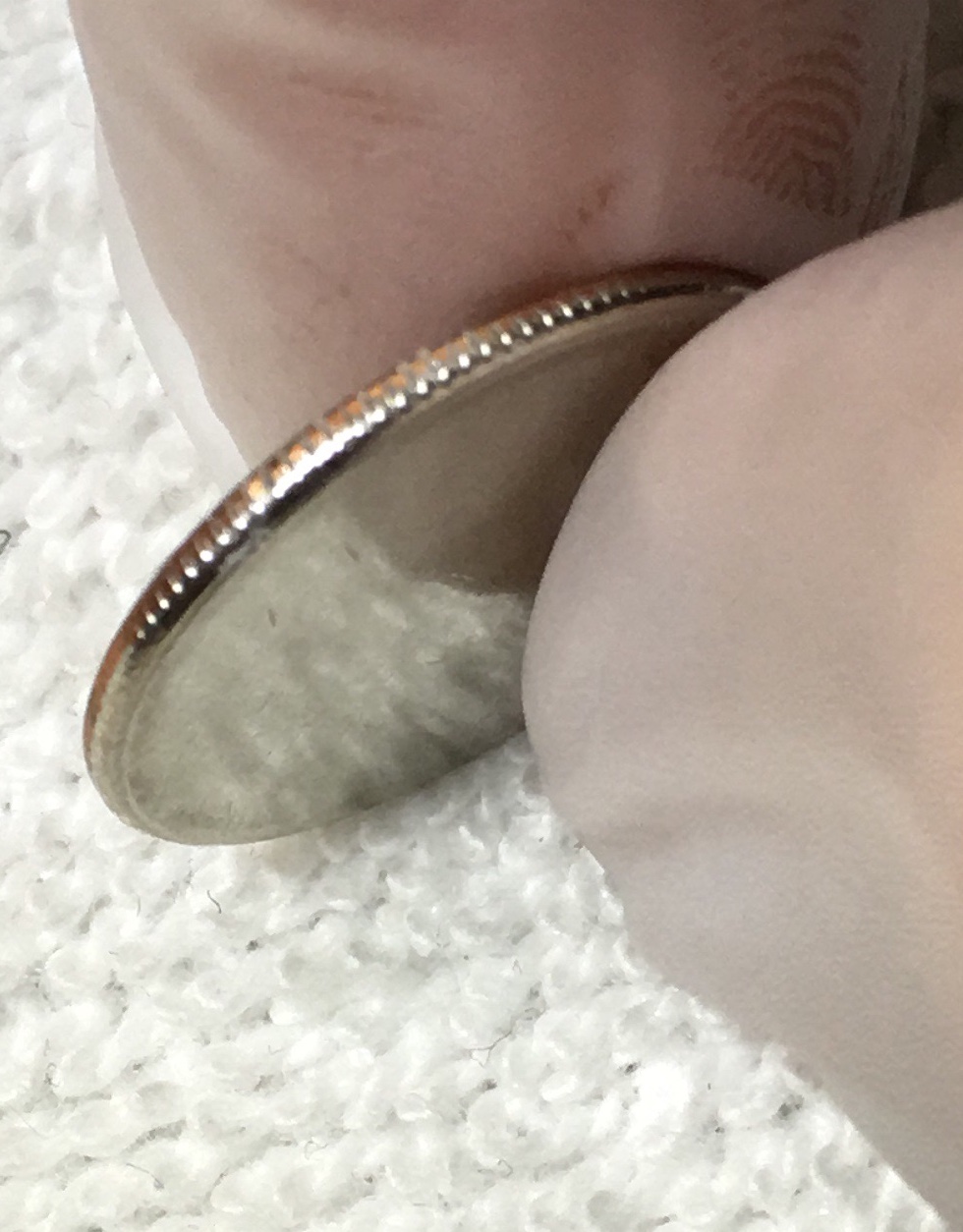

    IMG_5821.jpg IMG_5829.jpg IMG_5828.jpg IMG_5827.jpg

    Also, how is the date determined on blank planchets?

  2. Avatar

    Guest User Guest



    to hide this ad.
  3. Burton Strauss III

    Burton Strauss III Supporter! Supporter

    Date cant be other than gross characteristcs (clad vs silver)

    Reeds come from the collar not the upset mill (that generates to proto rim).

    What I don't get is how you get this. I could see if you have three blanks in the coining chamber and nothing from the die one surface of the 1st and 3rd planchet. And nothing on the 2nd at all.

    But how do you get reeds when the collar doesn't reach the 2nd in the stack.

    JayF likes this.
  4. rickmp

    rickmp Frequently flatulent.

    Yours is 1965 or later. That's the best anyone can do in dating it.

    JayF likes this.
  5. rickmp

    rickmp Frequently flatulent.

    It should weigh 2.268 grams.
    I'm wondering if it wasn't machined and then carried around in a pocketful of change to wear off the machine lines and age it to look as it does. It's weight will tell.

    Last edited: Apr 16, 2018
    JayF, MontCollector and paddyman98 like this.
  6. paddyman98

    paddyman98 No Common Cents! Supporter

    Interesting find
    @JCro57 Do you know anything about Blank Planchets with a reeded edge?

    JayF likes this.
  7. JayF

    JayF Active Member

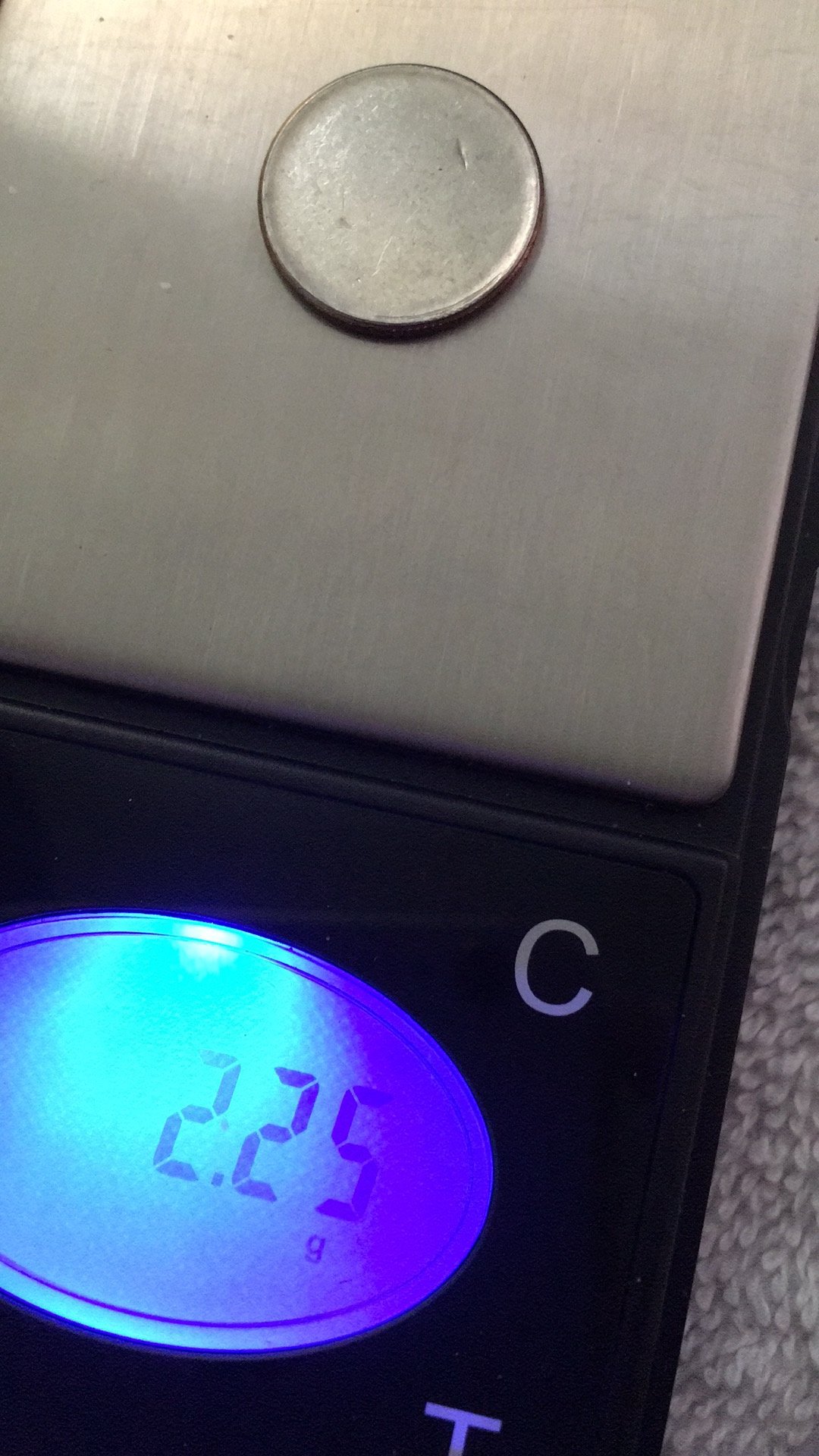

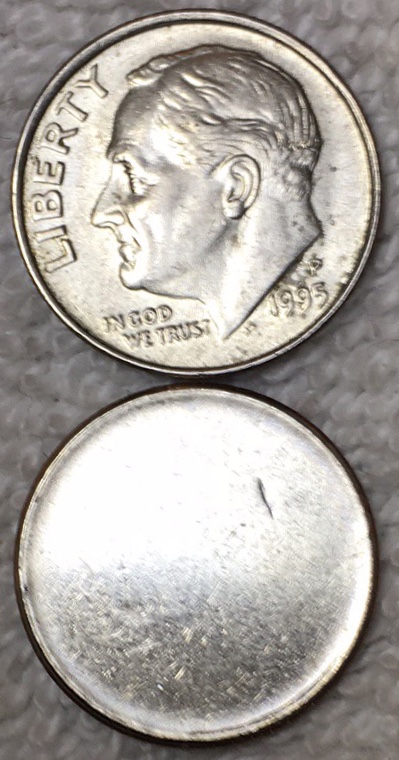

    Weight and size (slightly smaller than the actual dime I think)

    IMG_5838.JPG IMG_5837.jpg

  8. Michael K

    Michael K Well-Known Member

    This isn't my area but I don't think Type 1 or Type 2's can have reeds.
    Unless it some how escaped being struck after being reeded?
    "The edges of dimes, quarters, half-dollars
    and dollars are marked with tiny ridges. This process is known as
    "reeding". It is done by a collar which is a part of the stamping
    operation."
    The Type 1's and Type 2's make it into circulation after missing the stamping operation when the reeds are put on.
    Your coin seems unusually shiny for a planchet or blank.
    If this coin is a genuine error, I think it's rare.

    JayF likes this.
  9. Michael K

    Michael K Well-Known Member

    .

    Last edited: Apr 16, 2018
  10. rickmp

    rickmp Frequently flatulent.

    Last edited: Apr 16, 2018
    Michael K likes this.
  11. Michael K

    Michael K Well-Known Member

    OP's coin seems to be completely reeded not partially.
    Is there a faint image on the OP's coin from being weakly struck?
    Would that take the luster off? It almost seems polished. (Last photo in post #1.)

  12. JayF

    JayF Active Member

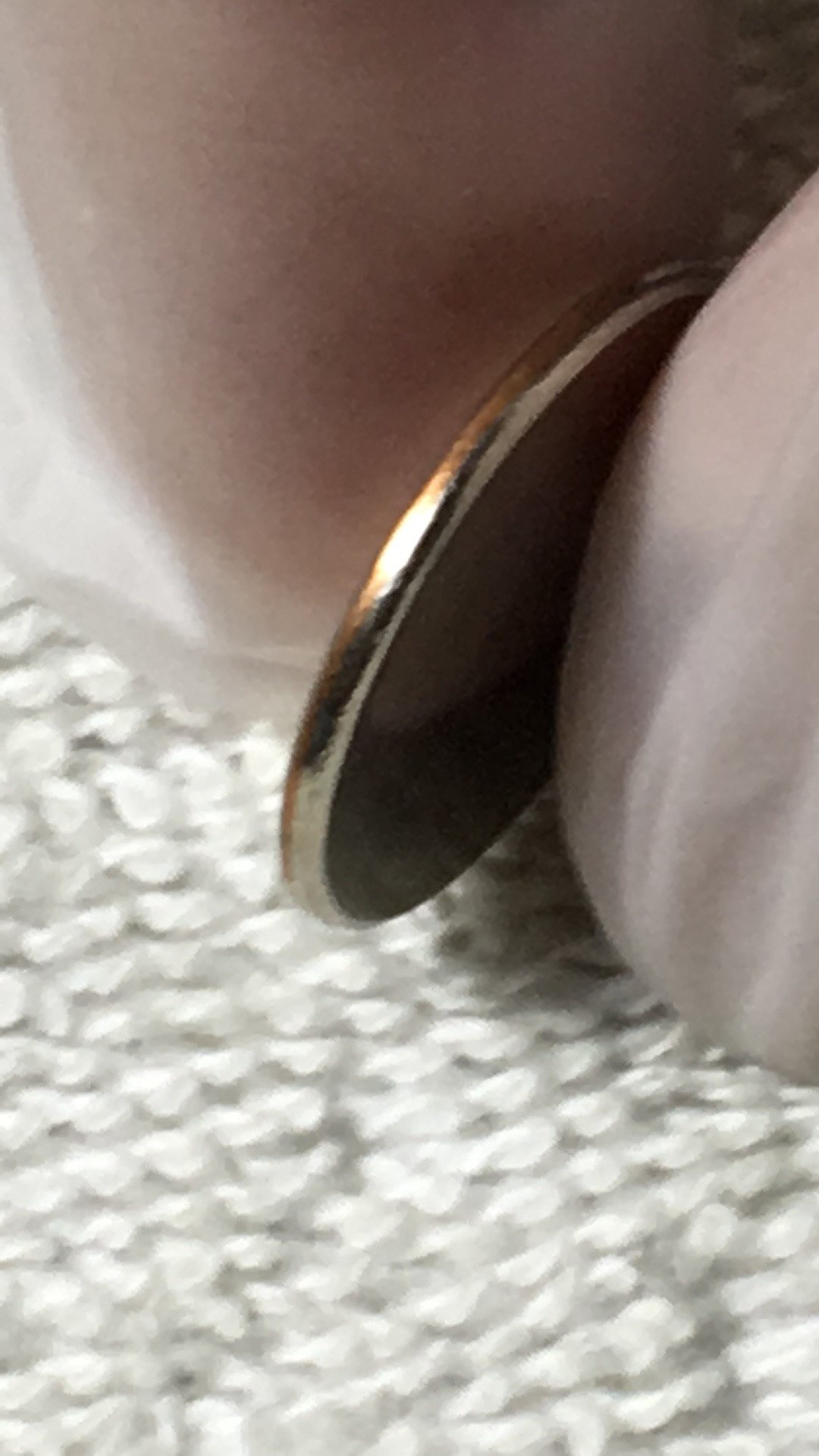

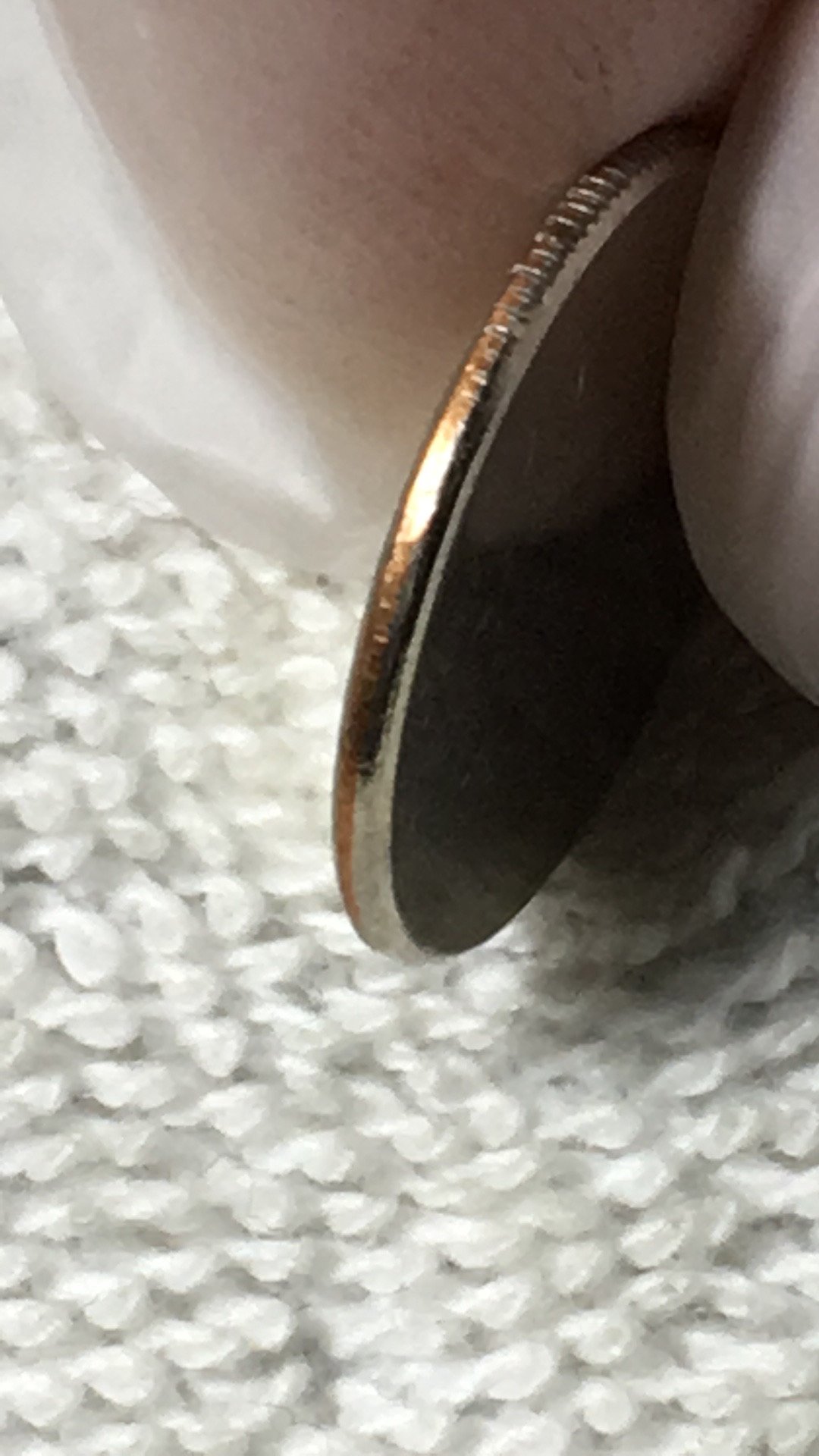

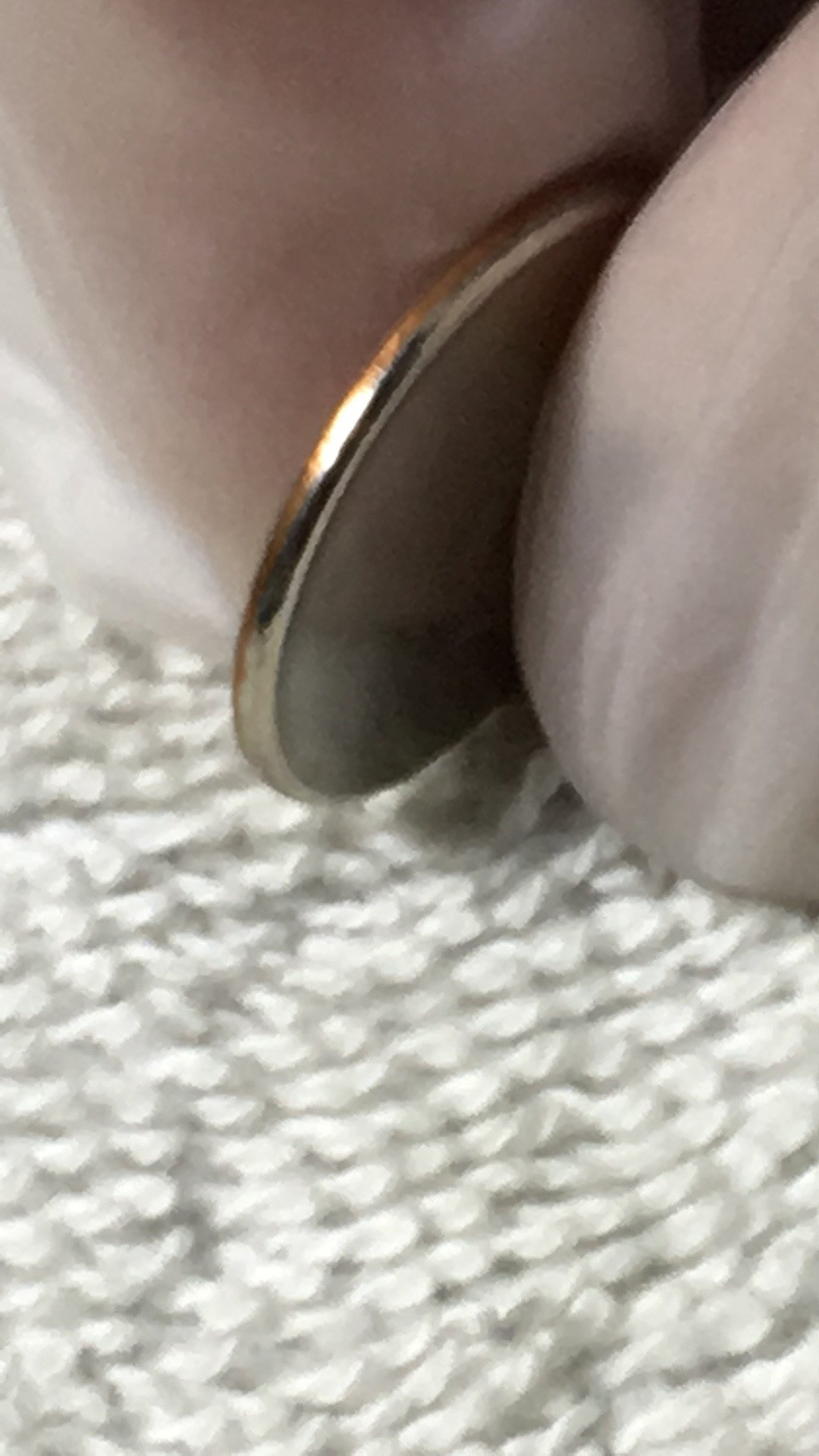

    Here's the rest of the rim :
    IMG_5841.JPG IMG_5840.JPG IMG_5839.JPG

  13. rickmp

    rickmp Frequently flatulent.

    I believe that 2.25 grams is within mint tolerance.
    My thought about machining is out the window.

  14. JCro57

    JCro57 COINS: Change I Can Believe in

    Never seen one like this before. There is a bit of a problem with this piece which is very difficult to ignore...

    The planchet is within the weight tolerance for a clad dime, so that's good.

    It would in fact be slightly smaller/narrower if it was not stamped yet, so that's good.

    It also appears to have the same, normal-looking contact marks that many blanks and planchets have. (Doesn't appear to have had the design buffed of or whizzed out to make it flat, otherwise it wouldn't have those types of contact marks). Yet some parts of the edge appear to have been harshly polished.

    The only thing I don't understand, and why I don't feel confident saying this is a genuine piece, is that the reeded edge is done by the collar during the stamping process...So...this would mean this coin was placed inside the collar, and the reeding was pressed, but neither the obverse nor the reverse dies were in place to strike it, leaving it unstamped on both sides? Both the hammer and anvil die would have to have been absent while the collar pressed the reeded edge. How is this possible?

    I would need to more closely examine the edge with a 10x loupe. Though it appears to be kosher, it isn't impossible to make these reeding marks yourself and have one heck of a unique piece, nor would it be hard to then smooth and round it off. (One purpose of reeding was to prevent people from shaving off the silver and gold from precious metal coins; if the reeding was missing, or didnt look uniform, you might be looking at the barrel of a Smith and Wesson.)

    I am leaning towards this being modified...but then there are much stranger combinations that are genuine.

    Last edited: Apr 16, 2018
    paddyman98, Michael K and JayF like this.
  15. JCro57

    JCro57 COINS: Change I Can Believe in

    JayF likes this.
  16. JayF

    JayF Active Member

    I'll try and get more sharper pics of the reeds where it fades on both sides but I don't have a microscope so I can't promise a real close up.

  17. JayF

    JayF Active Member

  18. rickmp

    rickmp Frequently flatulent.

    Without the pressure of the dies, the planchet cannot be forced into the collar die that makes the reeds.

  19. JayF

    JayF Active Member

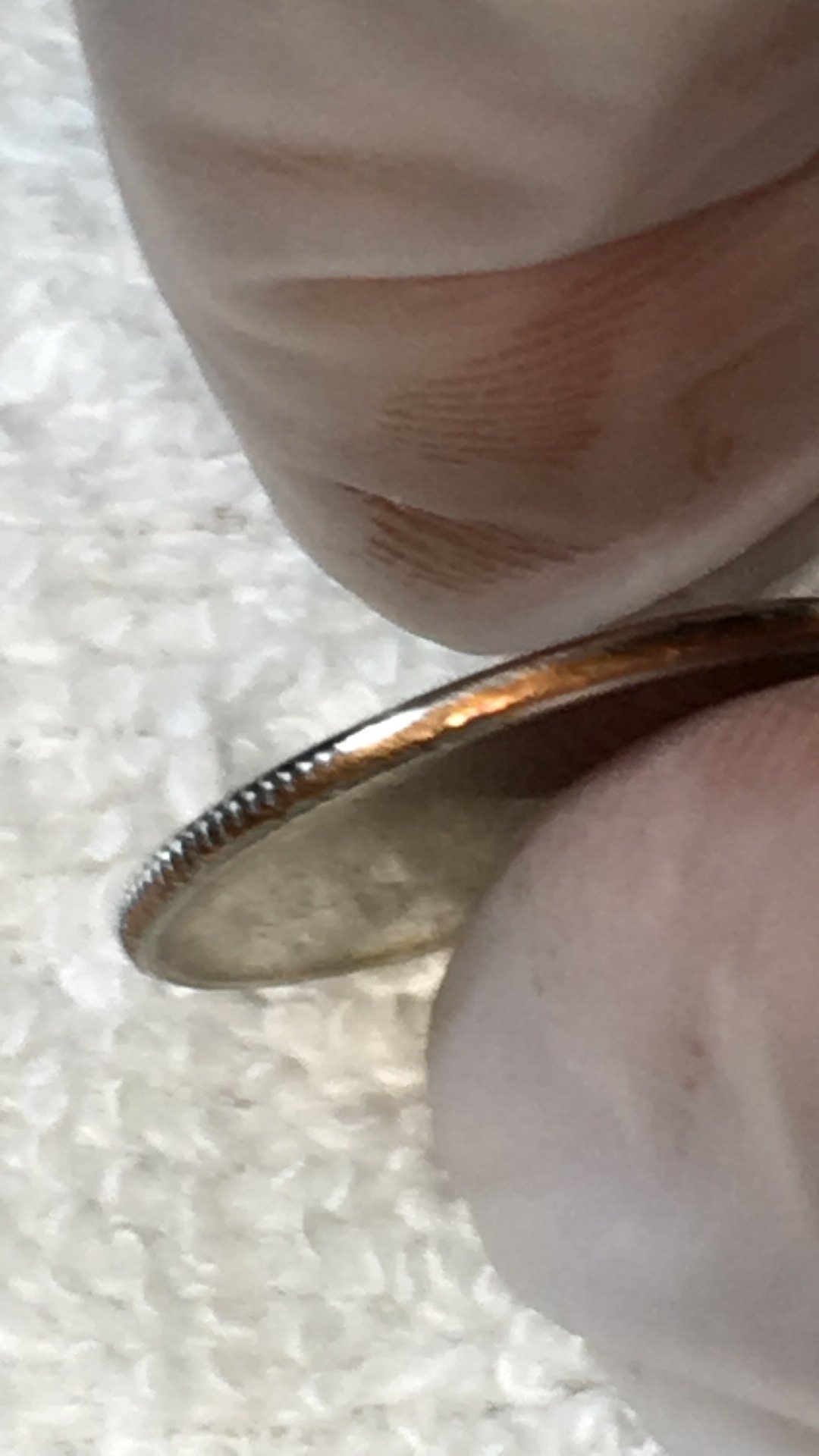

    Best my iphone can do :

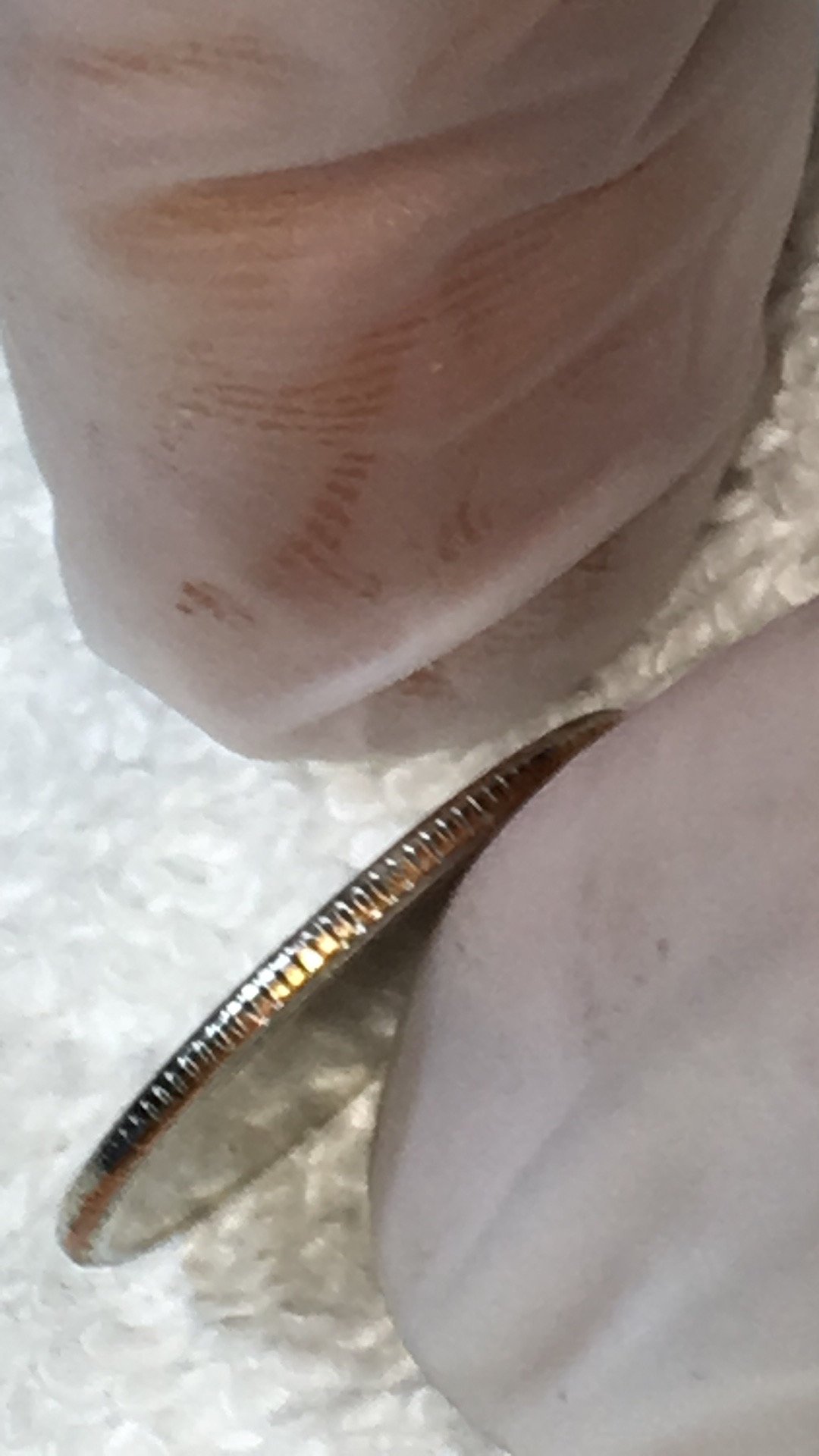

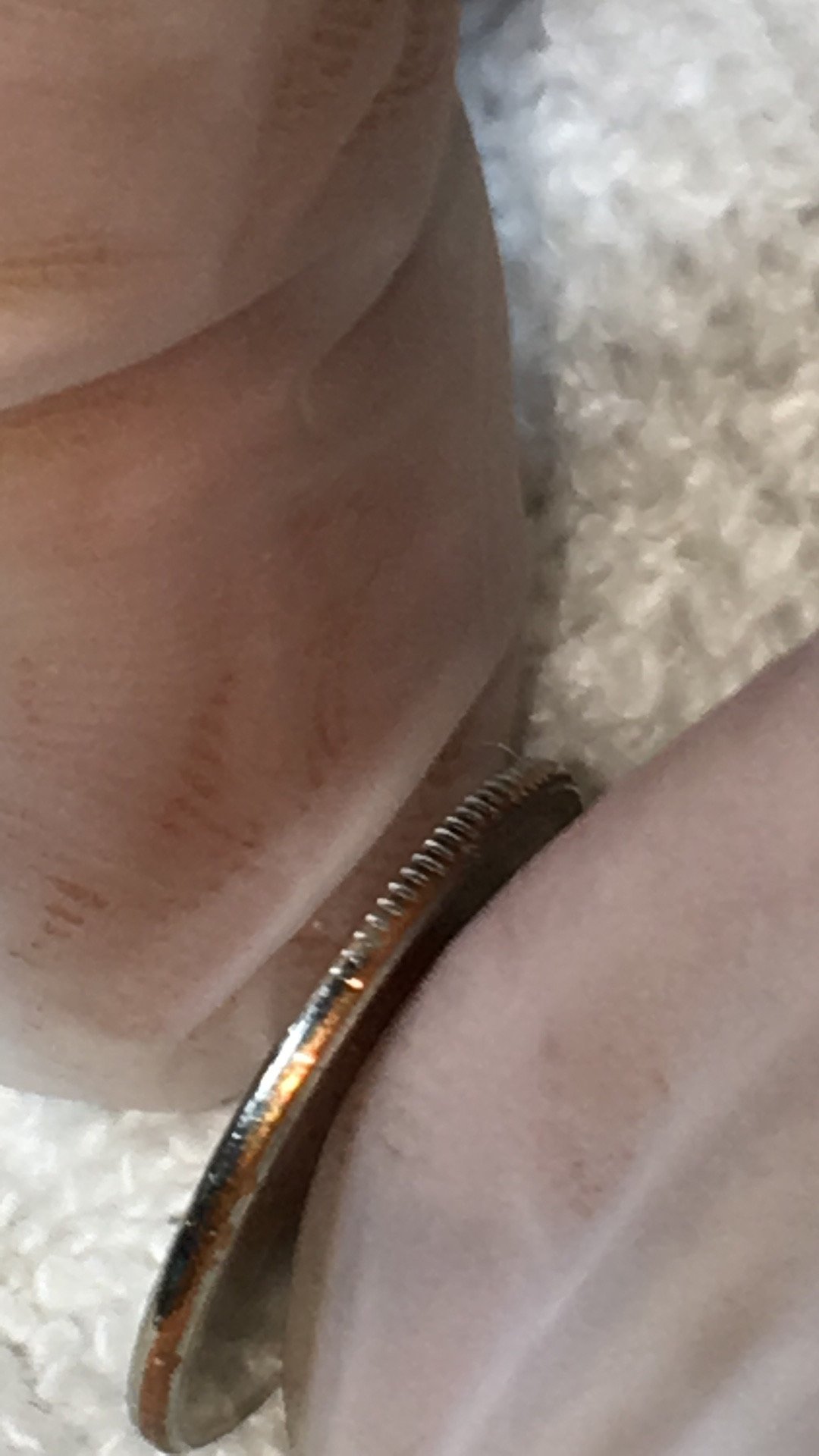

    IMG_5848.JPG IMG_5849.JPG IMG_5850.JPG

    Michael K likes this.
  20. Michael K

    Michael K Well-Known Member

    It'd either super rare. Or not. Interesting piece. I will be watching for verification.

    JayF likes this.
  21. JayF

    JayF Active Member

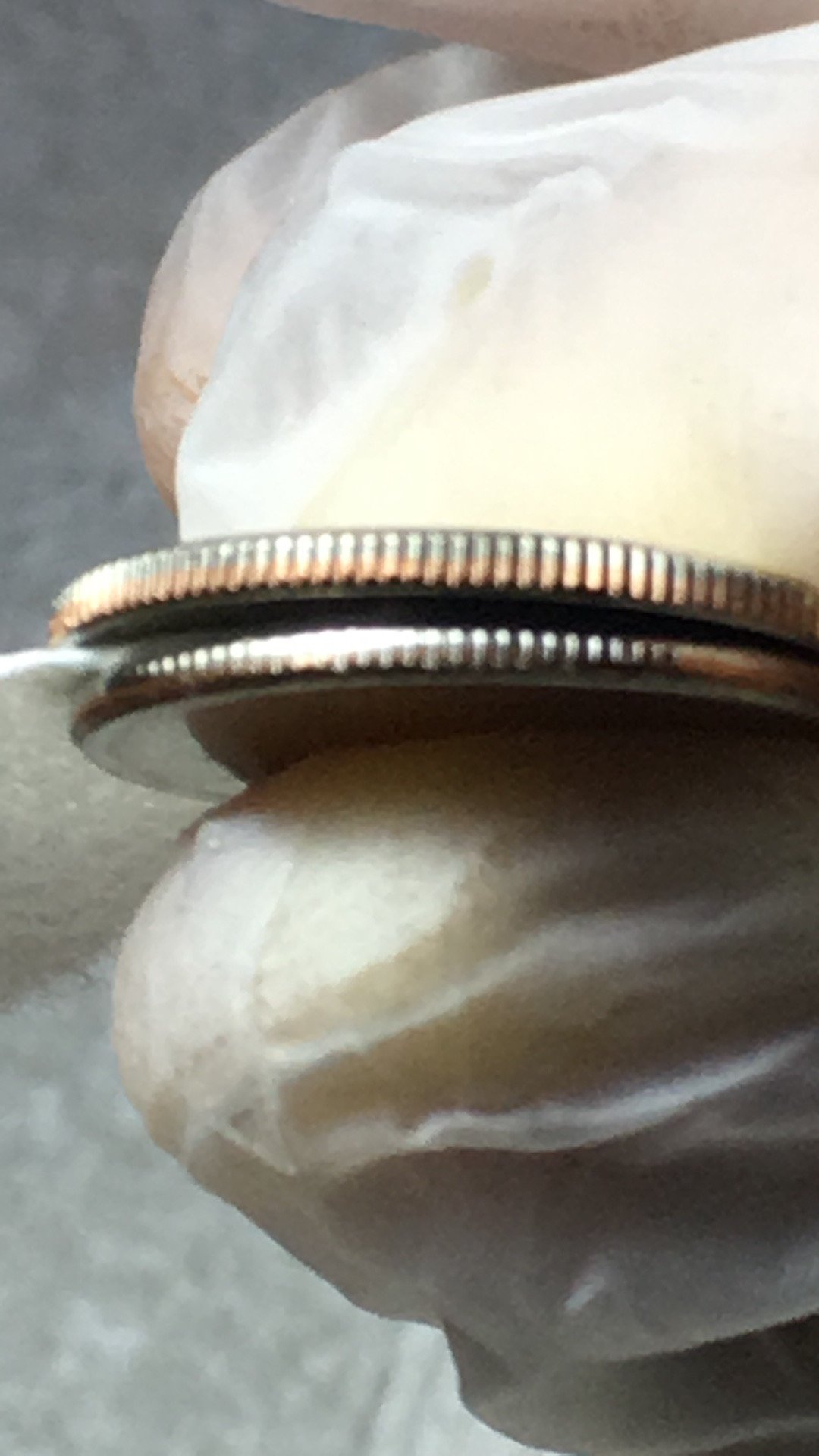

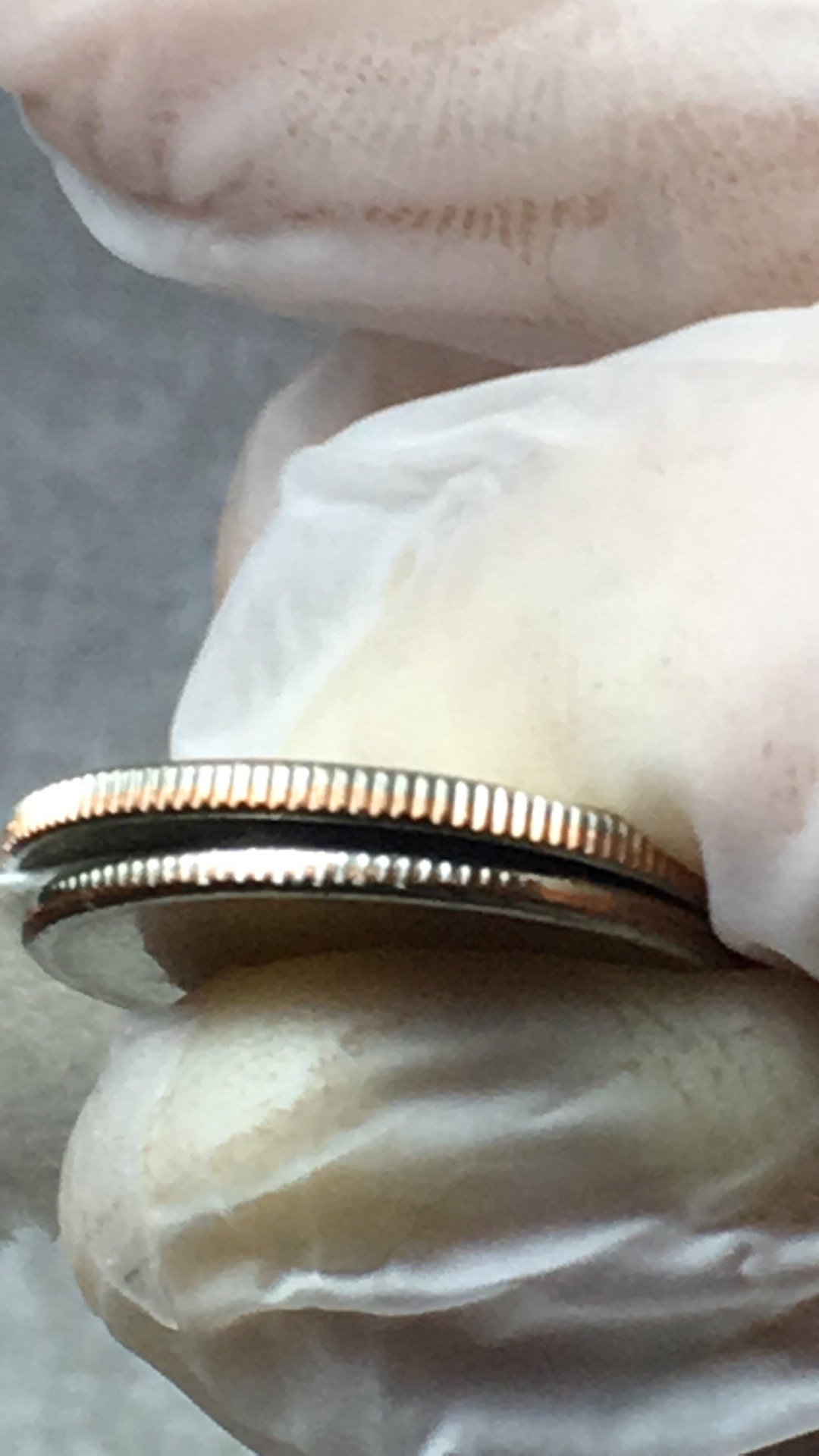

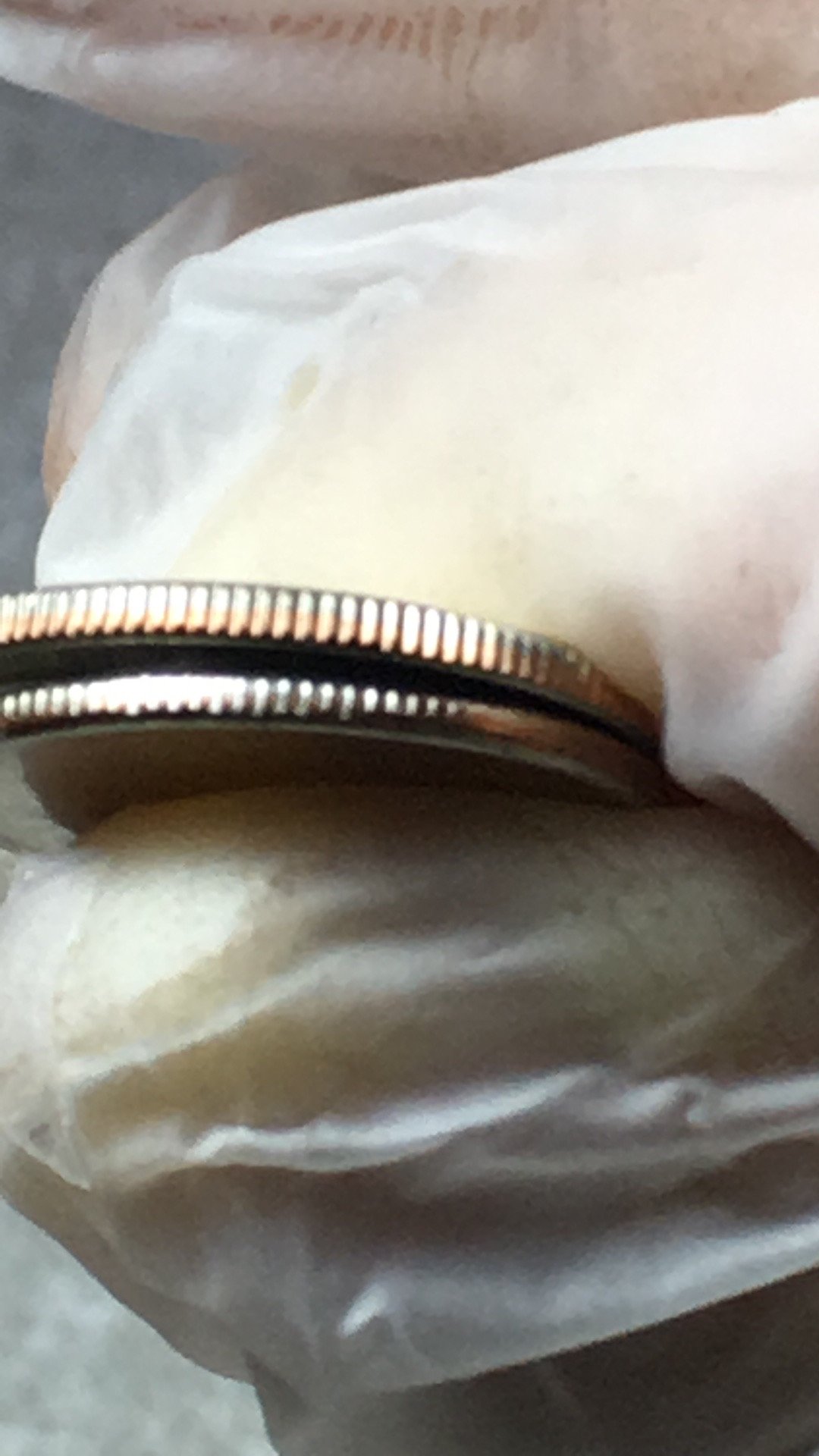

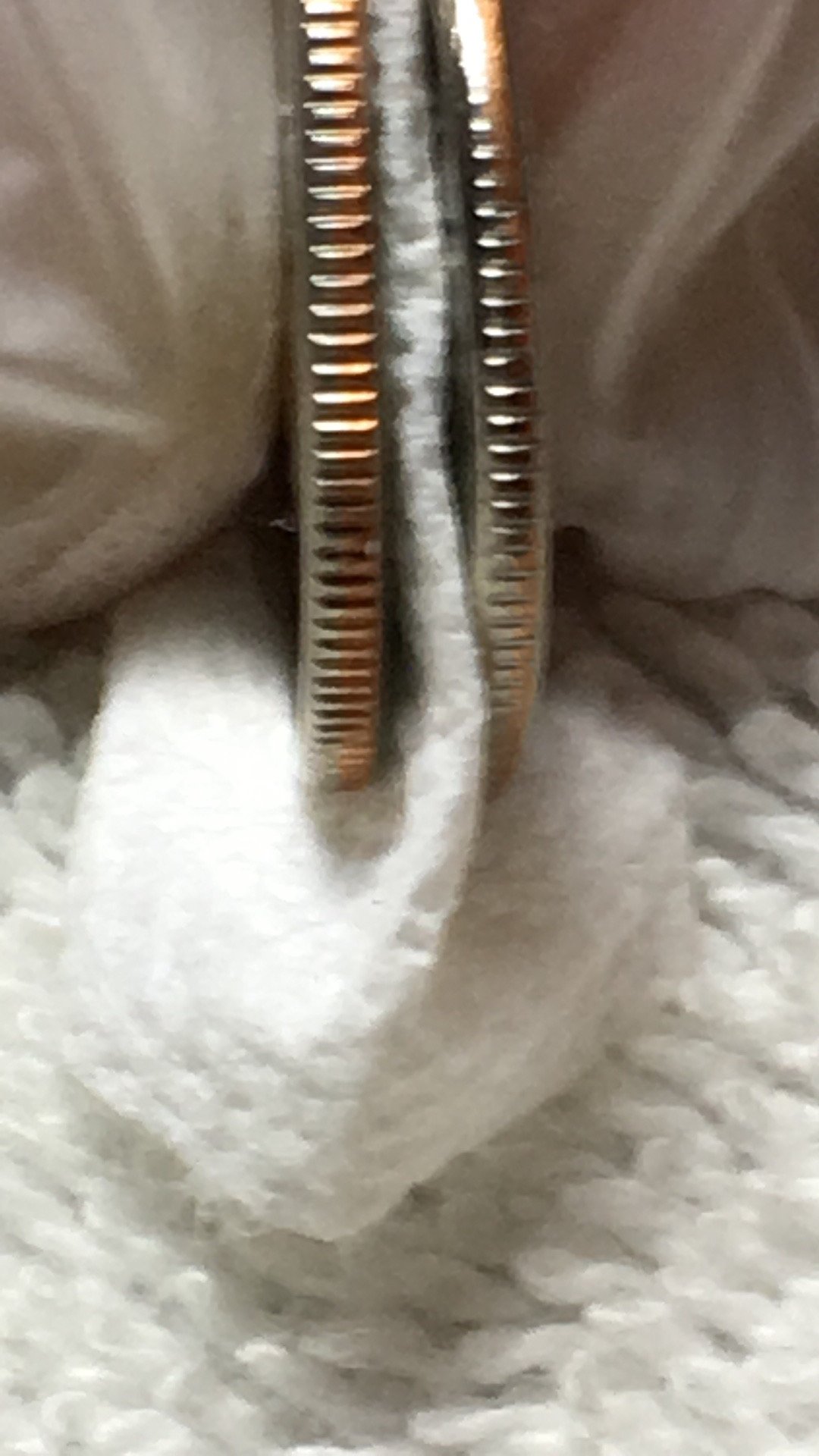

    One more set of pics that might help. Side by side comparison with a 2017 dime. Tough to get it any sharper, my phone keeps auto focusing :

    IMG_5852.JPG IMG_5853.JPG IMG_5854.JPG IMG_5855.JPG

    paddyman98 likes this.
