Featured Correct way to make 5% solution of sodium sesquicarbonate for Bronze Disease treatment.

Discussion in 'Ancient Coins' started by Theodosius, Jan 3, 2019.

  1. Carausius

    Carausius Brother, can you spare a sestertius?

    Deleted by poster!

  2. Avatar

    Guest User Guest



    to hide this ad.
  3. galba68

    galba68 Well-Known Member

    Nice post!!!

    Curtisimo and Theodosius like this.
  4. Limes

    Limes Supporter! Supporter

    Thank you, this is great to read. I just came back from the holidays to see my precious Caligula As having bronze dicease! When looking for what to do against it, all the chemical solutions and treatments found online made me dizzy. Your explanation is straight forward, for a simpel lawyer like me good to understand. So i ordered the sodium online and will look for distilled water in a store somewhere. A bit anxious though, fearing the effect the treatment may have on my coin, but i think i need to treat it while the disadvantageous effects of the corrosion are limited. I think, because the obverse is corroded, the coin had BD earlier in its lifetime above the ground. I also wanted to order verdicare, but it seems to be out of stock. Is there a trustworthy alternative, any of you CT members have experience with?

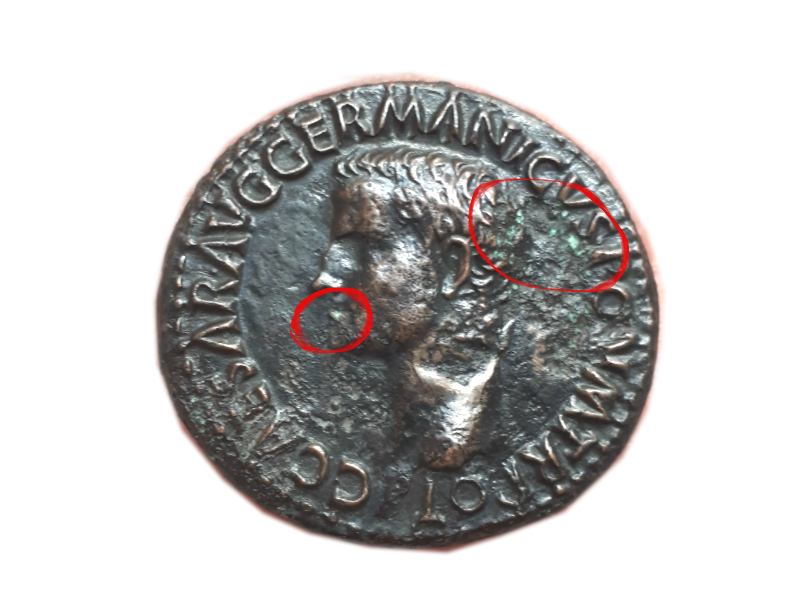

    here is a picture of the coin. Poor Caligula...:

    BD Caligula.jpg

    Curtisimo likes this.
  5. SeptimusT

    SeptimusT Well-Known Member

    Looks pretty minor right now. Start conservatively and work your way up to more aggressive means if that doesn’t work. I’d try just distilled water, changing the water every day for a week first of all.

    Justin Lee likes this.
  6. Justin Lee

    Justin Lee I learn by doing Supporter

    I agree, the sodium sesq here would probably impact the non-BD patina. As SeptimiusT suggested, start with DW treatments as it will slowly leach out or neutralize the chlorides, along withsome mechanical cleaning with a toothpick to get the green powdery stuff away as much as you can through the process. It appears surface level and should result positively from ongoing mild treatment.

    I feel for you & your Caligula! :(

  7. Theodosius

    Theodosius Fine Style Seeker Supporter

    I have been planning a follow up post, but I can say the treatment will affect the existing patina, and in a surprising way... stay tuned.

    John

    Justin Lee likes this.
  8. Justin Lee

    Justin Lee I learn by doing Supporter

    You've got me on the edge of my seat now, John! :wideyed::nailbiting: Can't wait!

  9. Theodosius

    Theodosius Fine Style Seeker Supporter

    Well, what happened was....

    (Been reading to many of @lordmarcovan s threads. :) )

  10. Kentucky

    Kentucky Supporter! Supporter

    Dang you.. just a thought, but after any kind of a treatment, dry the con out thoroughly. I think I have seen 185 degrees Fahrenheit. Please correct me if I am wrong. After that, keep it dry and protected from air (2x2 is probably enough)

  11. Theodosius

    Theodosius Fine Style Seeker Supporter

    So now for some results of the treatment I performed. I got a group of nice Greek bronzes as part of a lot. Several of these broke out in BD shortly after I received them. They all exhibited light green, fluffy patches to an alarming degree. I soaked them in individual covered cups (soy sauce to go cups) in the solution for around four months, removing the BD with bamboo skewers, nylon brushes, and sometime used dental picks for stubborn deposits. I changed the water daily at first, then weekly. The water would turn blue and bluish deposits appeared at the bottom of the cups.

    I noticed a few different effects. Some of the coins had BD under their patinas; these patinas flaked off and were lost. Some had areas where the patinas dissolved, while in other areas the patinas remained hard and intact. The fluffy green deposits sometimes turned into darker, hard, stable green deposits. Under the fluffy deposits were soft reddish areas that appeared to be bronze that was partly converted into some salt or oxide, these areas were pretty much lost as well over the treatment. It was necessary to remove any fluffy green stuff to expose the additional BD underneath or a crust would form encapsulating the BD and preventing it from being treated.

    Finally, and most surprisingly to me, all the coins developed a distinctive blue coating, that I have seen before on other bronzes, and I suspect is the result of this treatment. It is not unattractive, and I suppose it could form naturally on bronze coins exposed to sodium compounds, but I can't help but feel these are BD coins in remission or recovery. I am not sure if there is a way to avoid this blue coating developing. It seems to be thicker on the downward side of the coin. I would alternate orientations each week to expose the two sides evenly to the solution which may have caused the blue coating to be more even between the sides. I am guessing some compound was forming in the solution through the action of the sodium compounds and it was floating around and reacting with the bronze surface of the coin.

    After the extended soaking, I rinsed the coins repeatedly in distilled water and left them out on my desk for 3 months. I wanted to see if the BD returned and if any further changes occurred. So far, they all look to be stable. I think that multiple months were required for the treatment to be effective. After one month I was starting to think it would not work, but other coins came and took up my attention so it was easy to just keep treating them to see what would happen.

    Here are three of the patients. I should have taken before and during pictures, but l did not realize starting out that this would turn into a case study. :oops:

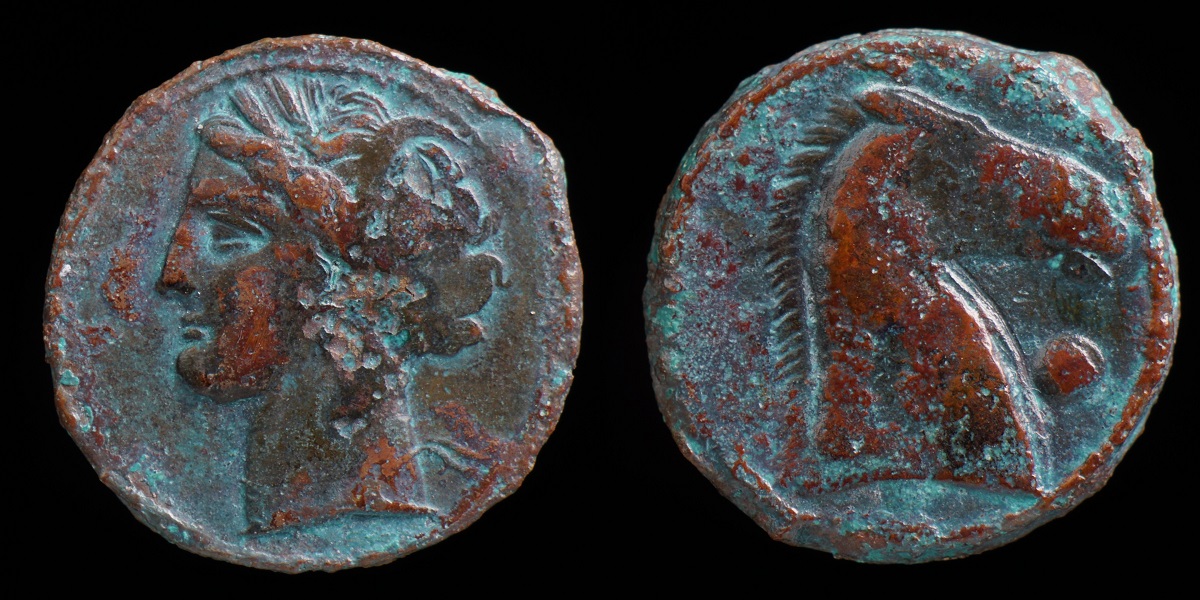

    Carthage AE 2a.jpg Zeugitana, Carthage. 300-264 BC.
    Æ 19mm 5.47gms. Sardinian mint.
    Obverse: Wreathed head of Tanit left.
    Reverse: Horse's head right; globe to right.
    References: SNG Copenhagen 164.

    A nice coin in hand, the blue coating it very obvious.

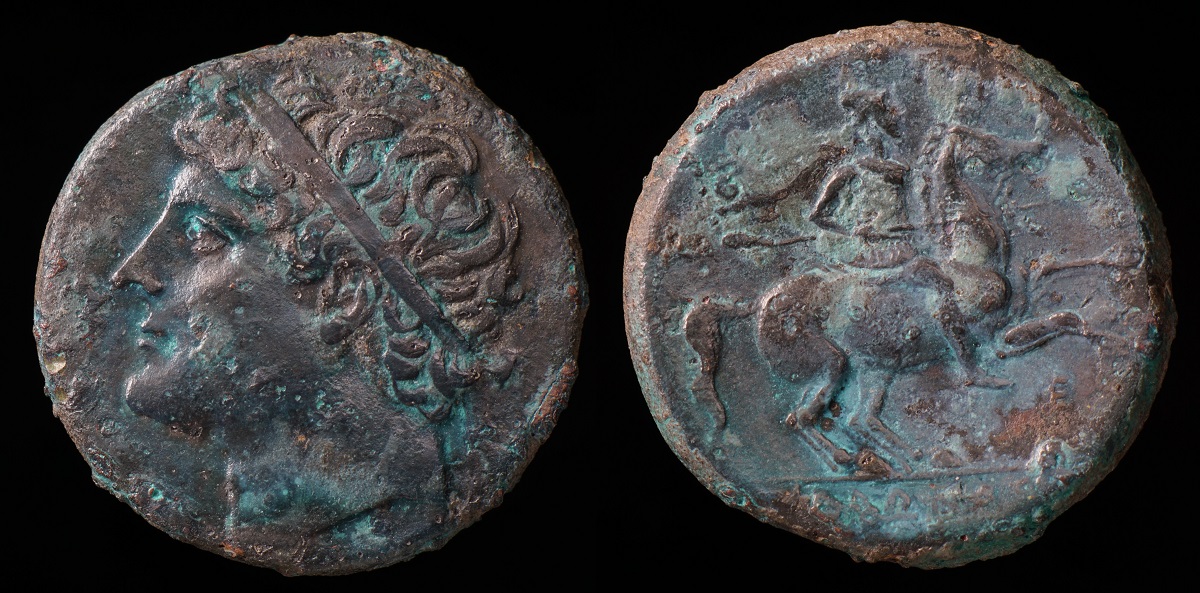

    Syracuse AE27 Hieron II 1a.jpg
    SICILY, Syracuse. Hieron II. 275-215 BC.
    Æ27, 27mm, 16.66 gms. Struck circa 230-218/5 BC.
    Obverse: Diademed head left.
    Reverse: Horseman riding right, holding couched spear in right arm; IEPΩNOΣ in exergue.

    Another case of the blues. This coin lost areas of patina around the edges and ended up with rougher surfaces.

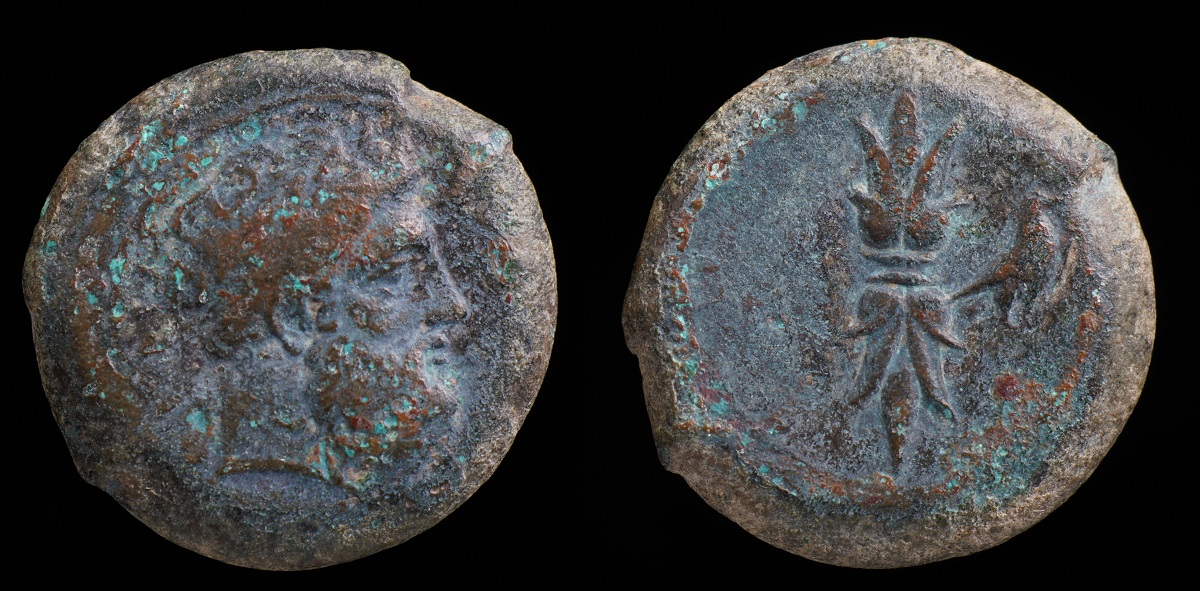

    Syracuse AE25 Timoleon 1a.jpg SICILY, Syracuse. Timoleon and the Third Democracy. 344-317 BC.
    Æ Hemidrachm, 24mm, 16.08 gms.
    Timoleontic Symmachy coinage. 1st series, circa 344-339/8 BC.
    Obverse: Laureate head of Zeus Eleutherios right.
    Reverse: Upright thunderbolt; to right, eagle standing right.

    This coin's entire patina was lost. The BD could be seen poking through small holes in the original patina. Over time the (very thin) patina flaked off. The bronze underneath is fairly smooth and the coin is still nice in hand. I believe this coin and the previous were on the way to complete destruction. I had two more small bronze coins where the BD was coming up from inside the coins. The BD was eventually stopped on them, but so much of the surface was lost that they were basically ruined as coins:

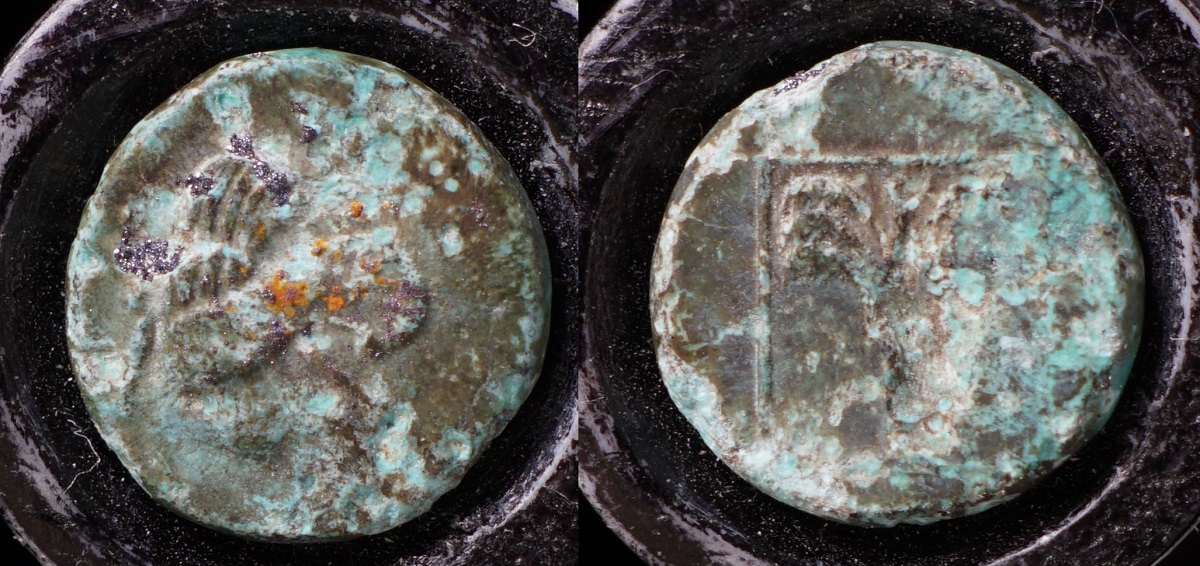

    Carthage BDa.jpg

    I did not even try to attribute these guys. The green looks light like BD, but it is hard and stable.

    Could the blue coating on these coins be removed using some other chemical treatment? Maybe, but what other affects will that have on the bronze? It certainly does not come off from brushing with nylon or soaking in distilled water. I prefer to leave these alone for now. I think I have saved them, and that is good enough.

    I think the lesson I learned is that BD can be stopped using this treatment but it takes time. The patina may or may not be affected, but you won't end up with a shiny copper coin when you are done at any rate.

    John

  12. Limes

    Limes Supporter! Supporter

    Thanks for the advice everyone.

    An update: picked the green stuff away and put the coin in DW. Will refresh it daily, for about a week. And then heat it, i guess. The mechanical picking resulted in the bronze to surface. On some small BD-spots the patina is now completely gone.

    After the treatment with DW, i would like to apply something on it, to keep it safe. Online and in links in the post (eg bij Tiff) i read several methods (wax, verdi care). Might i ask for your help in this? What applicant do you think is best to apply to the coin? I am planning to put it in a close holder, so oxygene wont effect the coin.

    Also, looking at the wizzard coin supply website, verdi care is still out of stock. Some alternatives are mentioned. Does anyone have any experience with the alternatives mentioned? Forum ancient coins mentions 'paste wax'. Is that the same, as renaissance wax?

    Thanks!

  13. Justin Lee

    Justin Lee I learn by doing Supporter

    How much time are you planning between the end of the DW treatment (when BD is no longer showing) and applying something? I'd recommend months as @Theodosius did to ensure the BD doesn't come back. Only then would I maybe apply something.

    I have both and have used both. I have no positive or negative evidence as to my decision, but I prefer to apply the Verdicare to my recovered BD coins after in remission. On my other coins, I apply Ren Wax.

    Clavdivs likes this.
  14. Limes

    Limes Supporter! Supporter

    Good question Justin Lee. I have no specific thoughts about it. The method of Theodosius sounds like a very good one. I will follow that. Thank you!

  15. Matthew1995

    Matthew1995 New Member

    Thanks for the great article! I will try this on my bronze. But I was wondering if you could tell me where you found sodium sesquicarbonate for that price? I have been looking around on Ebay, but I can't seem to find it.

  16. Theodosius

    Theodosius Fine Style Seeker Supporter

    Make sure you're spelling it right. It's kind of an odd word. I see multiple eBay sellers in the US today.

  17. desertgem

    desertgem MODERATOR Senior Errer Collecktor Moderator

  18. Matthew1995

    Matthew1995 New Member

    Thank you so much!

  19. Matthew1995

    Matthew1995 New Member

    Hello again everyone, I have one last question.
    I have received my sodium sesquicarbonate in the mail, and now I will begin treating my piece. Unfortunately, it is currently covered in renaissance wax. Could someone recommend to me a good way to remove it?

  20. Theodosius

    Theodosius Fine Style Seeker Supporter

    I would try acetone.

    Soak a few minutes, dry it on a clean microfiber, repeat several times.

  21. -jeffB

    -jeffB Greshams LEO Supporter

    I'm not familiar with Renaissance Wax, but a little Googling indicates that it's basically paraffin/polyethylene compounded with "mineral spirits" (a non-polar solvent). Given that, might xylene be a better choice than acetone for removing it?

    Kentucky likes this.
