Bust half die stages

Discussion in 'US Coins Forum' started by okbustchaser, Nov 25, 2021.

  1. okbustchaser

    okbustchaser I may be old but I still appreciate a pretty bust Supporter

    Nothing better to do tonight, so I thought I’d put together a die study on the 1817 O-105 die marriage. This was the last use of obverse die 3-s2. (Used previously to strike the O-103a--the punctuated date die marriage in the die state with the dot removed).

    In all there are four die states for this die marriage:

    (1) No Obverse or Reverse die cracks (the O-105 Prime; Probably R7 per the Auction and Mail Bid Prices Realized (AMBPR)

    Sadly, although I have seen one of the 6 or 7 known I don’t own one to show.

    (2) Obverse die cracks only the O-105; probably R6 (13-30 examples) per the AMBPR

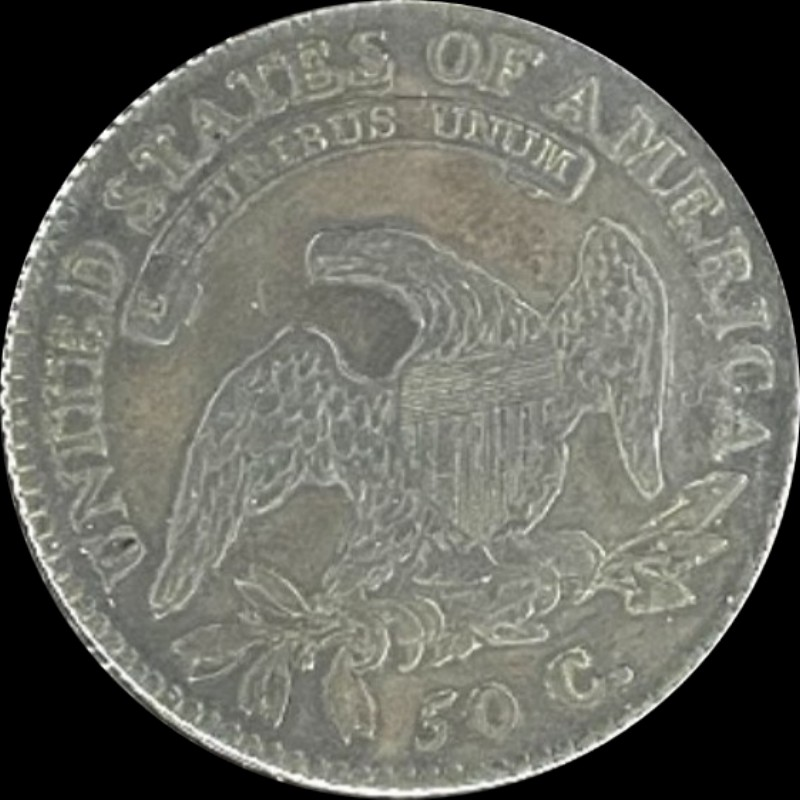

    Note the crack at star 9 No die crack at date upload_2021-11-24_22-39-6.png
    No die crack at top of OF

    (3) the O-105a...Obverse and Reverse die cracks , R4- (150 to 200 examples)

    Die crack at date just starts above 7 in date
    Die crack above OF

    (4) the O-105b...Full-blown Obverse and Reverse die cracks Probably R-4+ (76 to 125 examples)

    Crack at Star 9 extends fully across Liberty's cap; crack at date extends to rim above Star 11
    No difference from the above state.
  2. Avatar

    Guest User Guest

    to hide this ad.
  3. longshot

    longshot Enthusiast Supporter

    Nice article, thanks.
    I checked my little hoard, no 105 but I do have a 106, so a shared reverse.
  4. okbustchaser

    okbustchaser I may be old but I still appreciate a pretty bust Supporter

    Did you check to make sure it's not the 106a--the "single leaf"?

    The mint truly used these dies until they completely came apart.
    longshot likes this.
  5. longshot

    longshot Enthusiast Supporter

    No it's not.
