1993D Wide AM ? yes or no

Discussion in 'Error Coins' started by Alexander Sanchez, Nov 22, 2019.

  1. Alexander Sanchez

    Alexander Sanchez Active Member

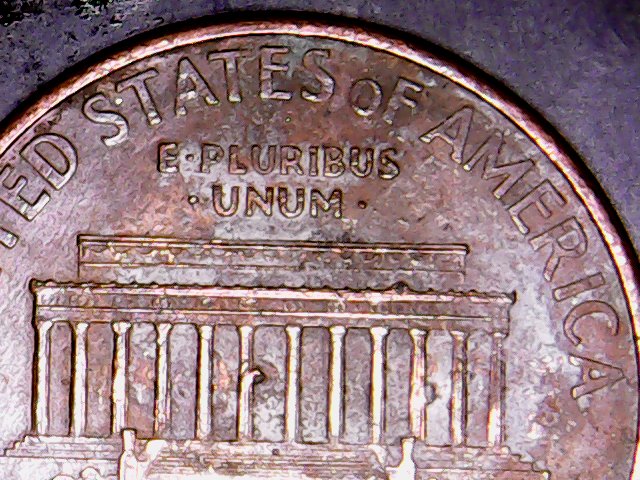

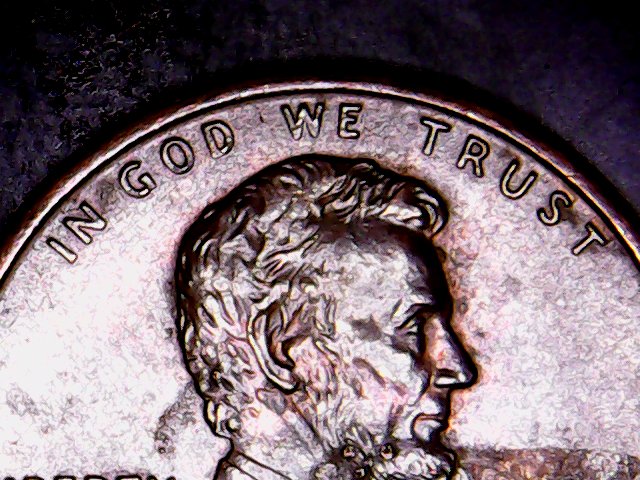

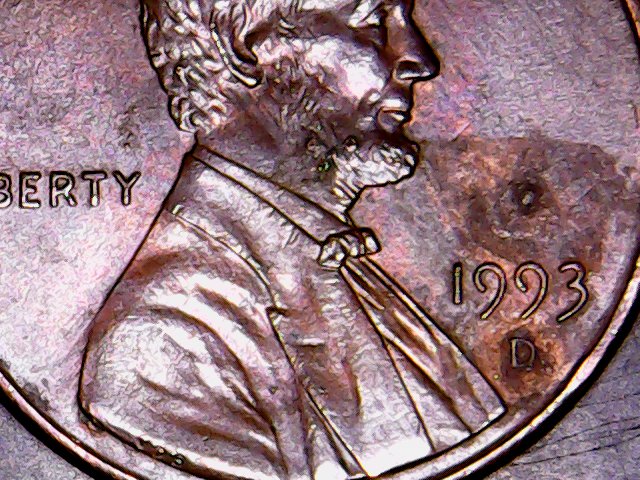

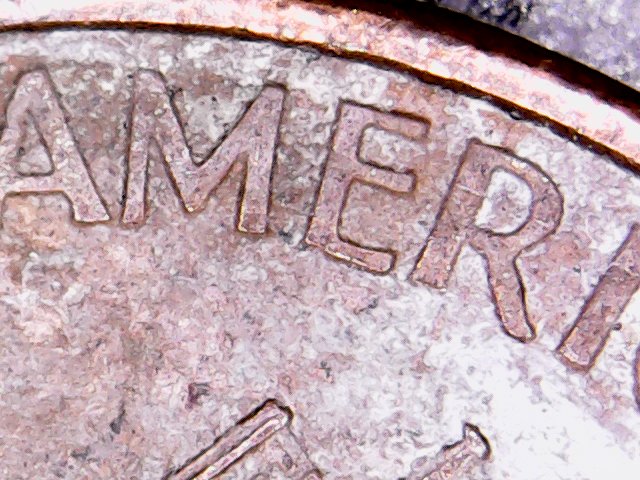

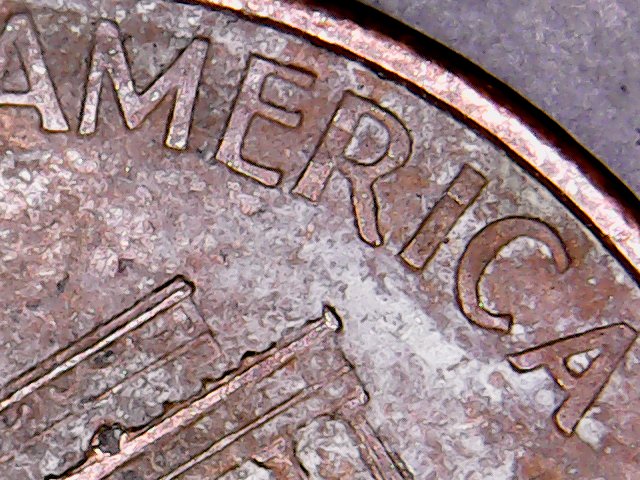

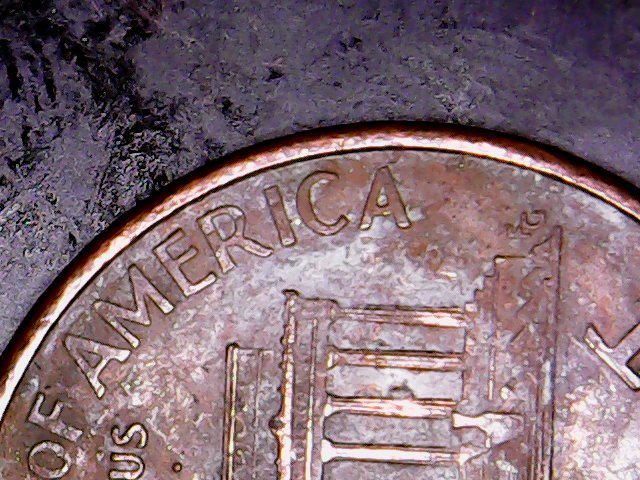

    Is this a 1993 transitional Error? looks further apart from the rest .is this a wide AM Fri Nov 22 11-33-49.jpg Fri Nov 22 11-34-02.jpg Fri Nov 22 11-34-51.jpg Fri Nov 22 11-34-56.jpg Fri Nov 22 11-35-07.jpg Fri Nov 22 11-35-11.jpg Fri Nov 22 11-35-55.jpg Fri Nov 22 11-36-46.jpg Fri Nov 22 11-36-59.jpg Fri Nov 22 11-37-03.jpg

  2. Avatar

    Guest User Guest



    to hide this ad.
  3. Pete Apple

    Pete Apple Well-Known Member

    A Wide Am shows the M midway between A and E.

    None known for 93

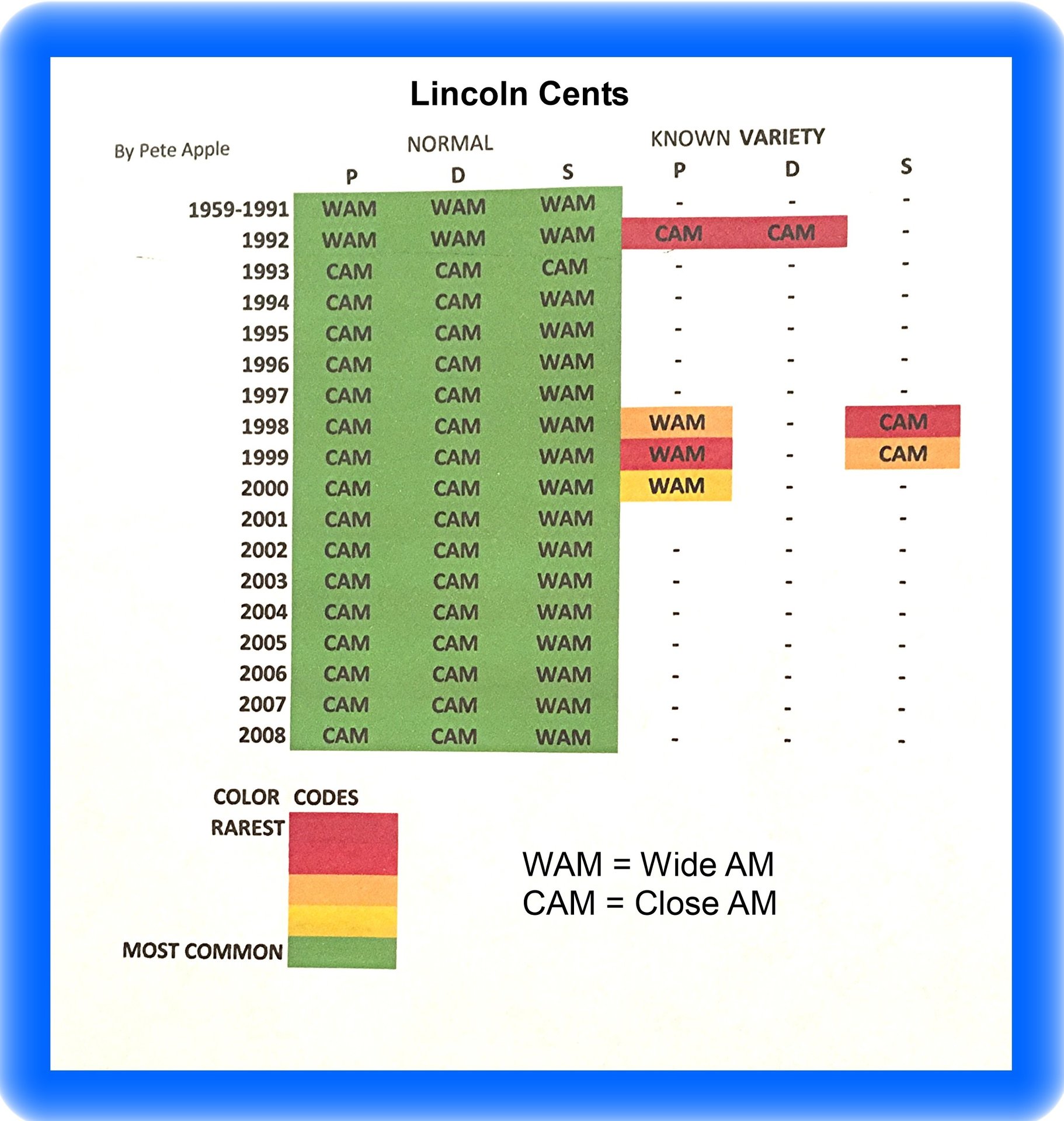

    WAM CAM by PA.5.jpg

  4. Pete Apple

    Pete Apple Well-Known Member

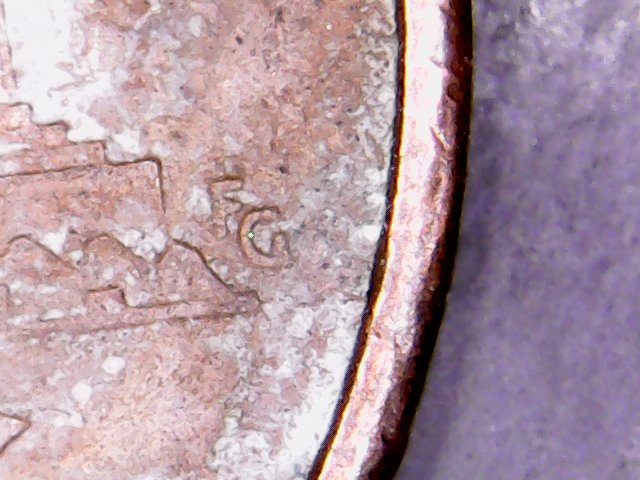

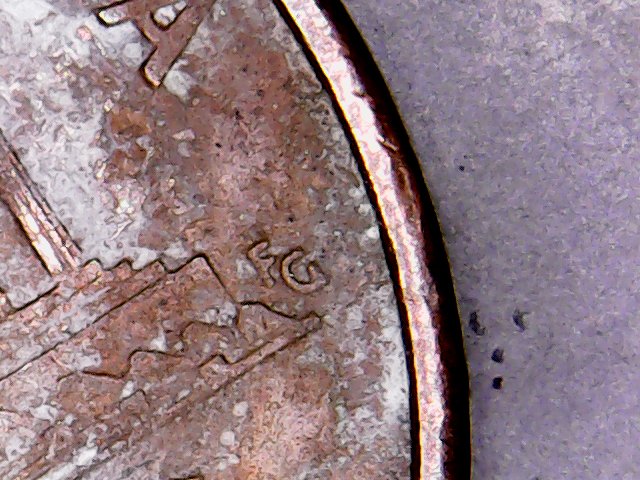

    Diagnostics for a Close AM include the M in AMERICA closer to the A than the E, the A in STATES closer to the right T than the left T, and the FG away from the Memorial. The NE in ONE on the west side vertical bar will have flared corners for the close.



    Diagnostics for a Wide AM include the M in AMERICA being midway between the A and the E, the A in STATES being midway between the 2 Ts, and the FG close to the Memorial. The NE in ONE on the west side vertical bar will not have flared corners (to the same degree as those on the Close AM).



    The appearance of how close the A is to the M varies as a function of die abrading and die deterioration. Therefore, confirmation of the attribution needs to be factored through the other two features. The distance between the A and the M is the least reliable diagnostic for WAM or CAM

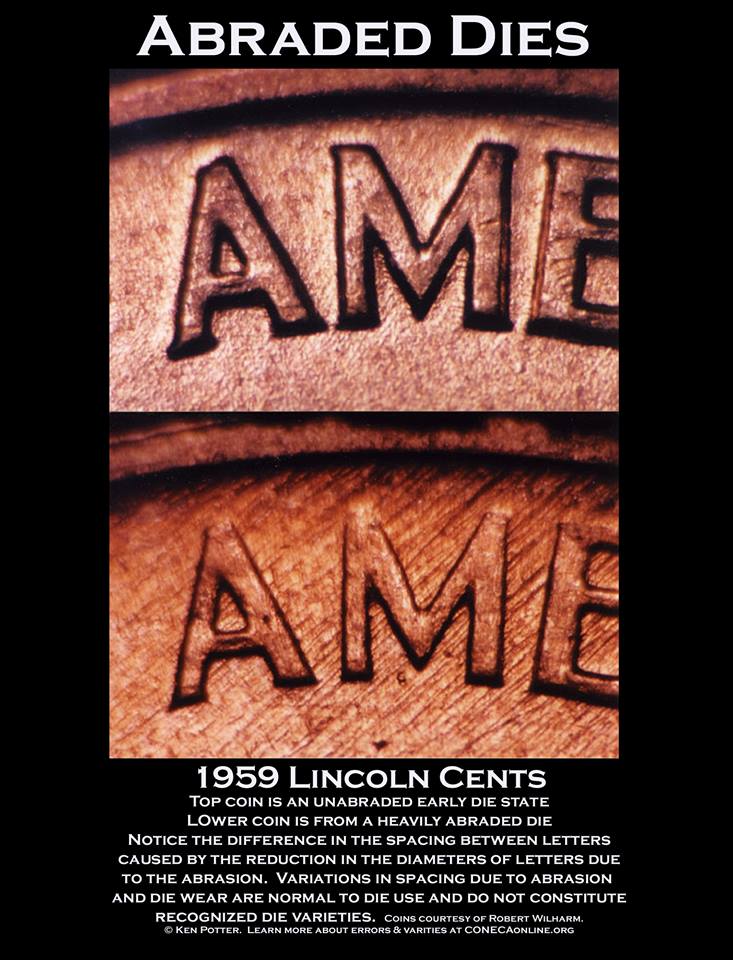

    Here is a photo example by Ken Potter showing how spacing between letters may vary as a result of abrading.

    Abraded Dies.jpg

  5. Alexander Sanchez

    Alexander Sanchez Active Member


    in easy words not wide AM.

  6. furryfrog02

    furryfrog02 Well-Known Member

    Correct. But you would do yourself a huge favor by reading and learning what @Pete Apple posted.

    Mike185 likes this.
