1990 P GW quarter Doubled Die on Georges face

Discussion in 'Error Coins' started by Dialupsux, Jan 14, 2021 at 10:00 AM.

  1. Dialupsux

    Dialupsux Active Member

    Will try to produce photos to show this, but what I see is Georges face doubled as if caused by machine doubling but there is no doubling of any lettering, which makes me think the die was doubled when producing Georges head. Feel free to prove me wrong ( and instruct me at the same time )

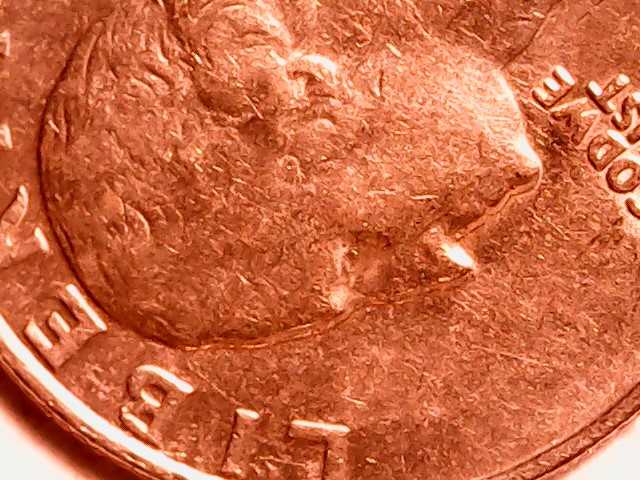

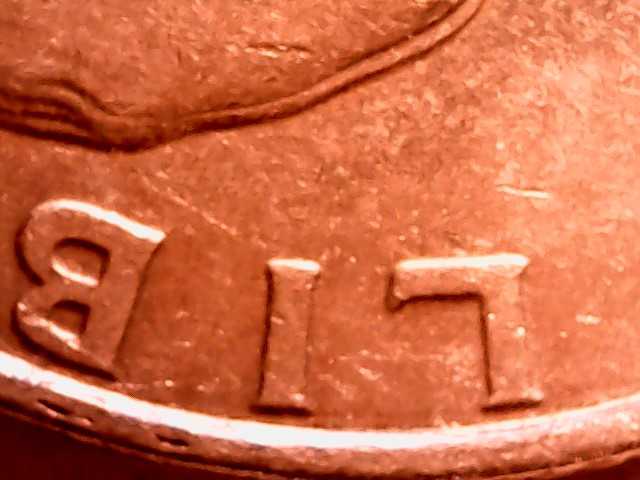

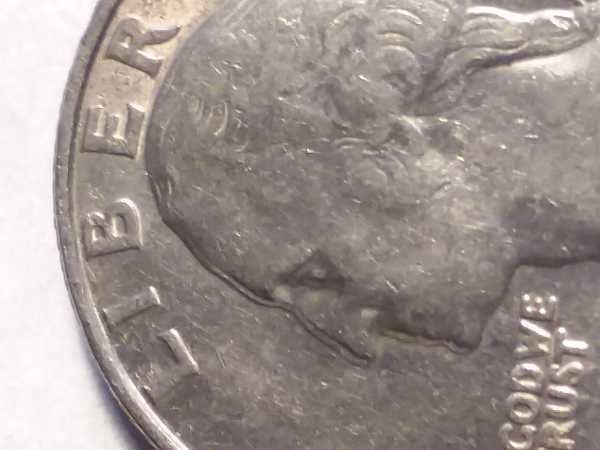

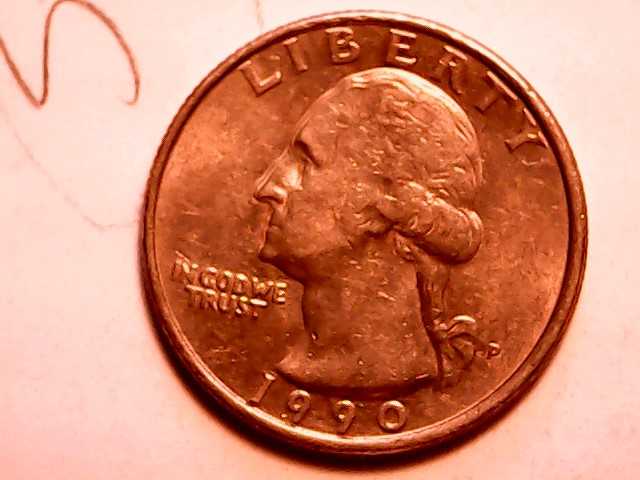

    phone.jpg med.jpg close up.jpg obv.jpg

  2. Avatar

    Guest User Guest



    to hide this ad.
  3. DarkRage666

    DarkRage666 Procrastinator

    I'd say machine doubling just because it seems flattened instead of actually doubled

    Evan Saltis likes this.
  4. Dialupsux

    Dialupsux Active Member

    Yeah but why didn't the letters get affected

  5. Collecting Nut

    Collecting Nut Borderline Hoarder

    MD can affect any or part of the letters, numbers or design. Yours is classic MD. It's flat and shelf like and profiles get this affect a lot.

    Lueds likes this.
  6. Lueds

    Lueds Member

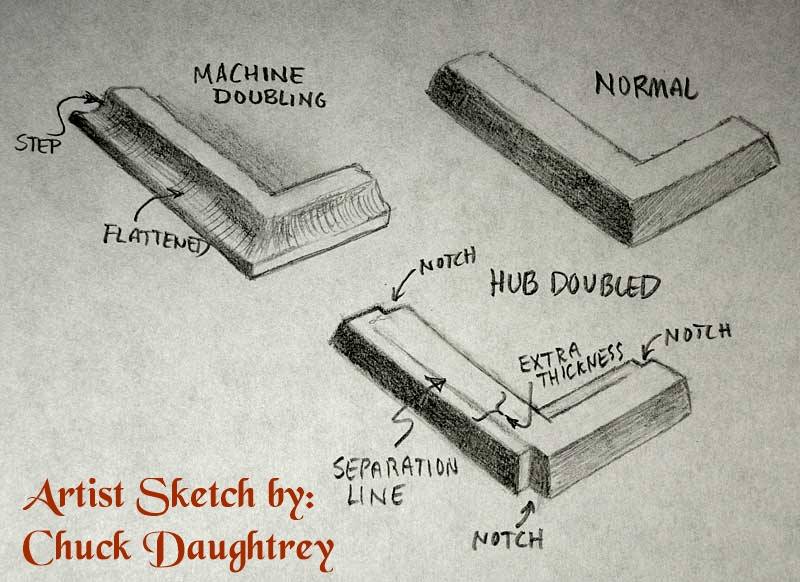

    Educational: As you asked. The coin displays typical flattened profile for MD, as already stated above. Sometimes it affects whole coin other times it could be just a part of a device, like the profile in your case


    Attached Files:

    Collecting Nut likes this.
  7. Dialupsux

    Dialupsux Active Member

    It amazes me what metal and machines can do to each other

    Don't think I've heard of Hub Doubling - is that the real deal ?

  8. Collecting Nut

    Collecting Nut Borderline Hoarder

    A doubled die (hub doubling) is caused by a misalignment or a mismatch between a working hub and a working die.

    Lueds likes this.
  9. Dialupsux

    Dialupsux Active Member

    so the hub is "printed" on the die so to speak

  10. Dialupsux

    Dialupsux Active Member

    Is the die made all at once or are the elements added separately ? such as first the head then the lettering ( I'm talking about the making of the die not the coin ) ( that didn't make sense , I assume the die is made in one stroke )

    Last edited: Jan 14, 2021 at 1:56 PM
