1988 Off Center Quarter Struck with Inverted Dies? What am I missing?

Discussion in 'Error Coins' started by Pete Apple, Oct 20, 2019.

  1. Pete Apple

    Pete Apple Well-Known Member

    During this time period, the Obverse was commonly the hammer die. However this statement: "Most off-center strikes and some uncentered broadstrikes show a collar scar on the face struck by the anvil die." (http://www.error-ref.com/inverted-dioe-installation/) seemed to me to suggest that for this coin the Obverse Die was the anvil die. This would not be expected in 1988 and would indicate an inverted die installation. What am I missing?

    As I understand it the Mint began working with inverted die installation in 1992 and the Schuler Press (horizontal striking) in 2002. Since this coin predates those events is the reason I am wondering if I am actually interpreting what I see correctly i.e. the Obverse die is the anvil die. What am I missing?

    (Additional Photos in Comments)

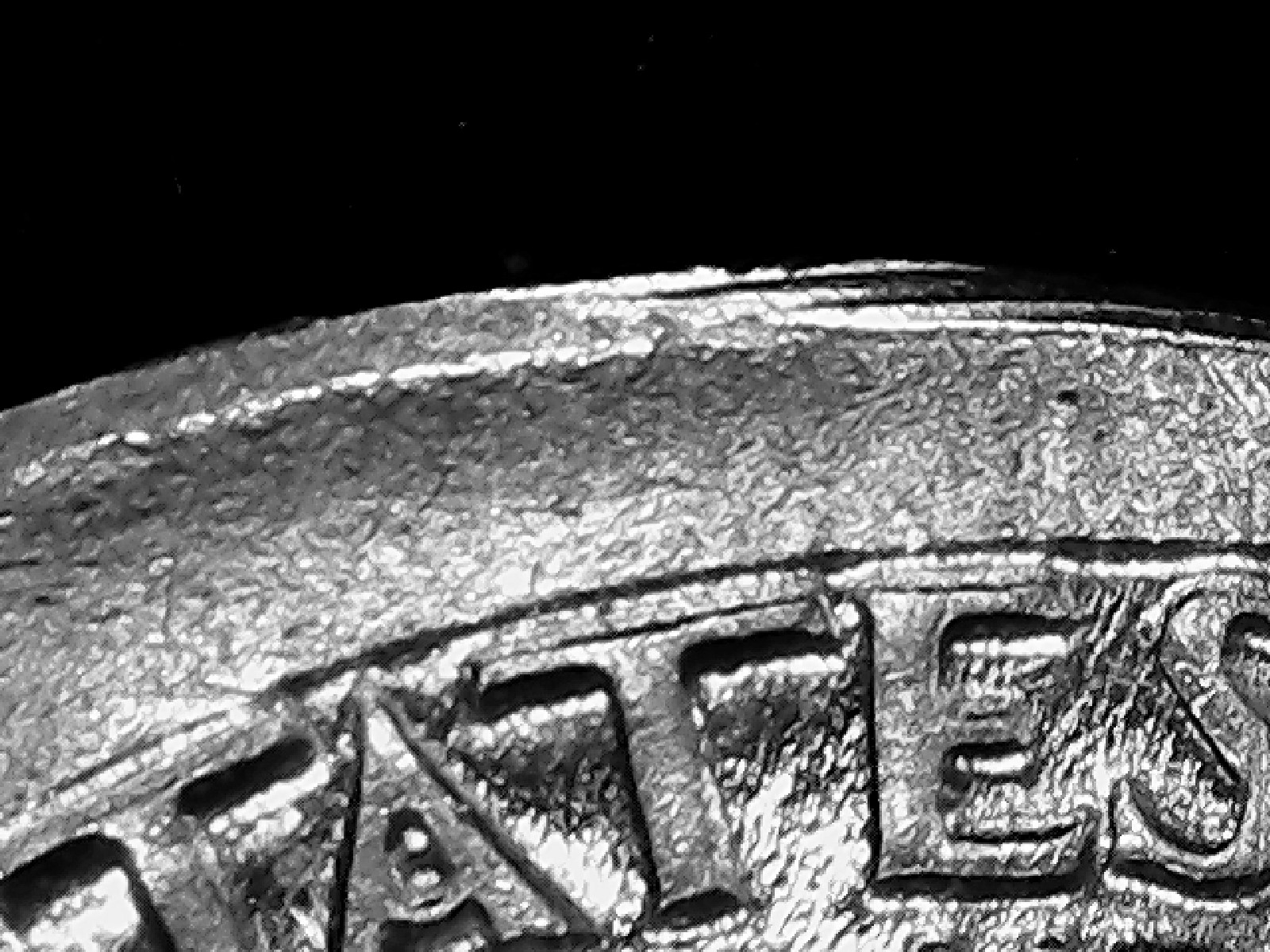

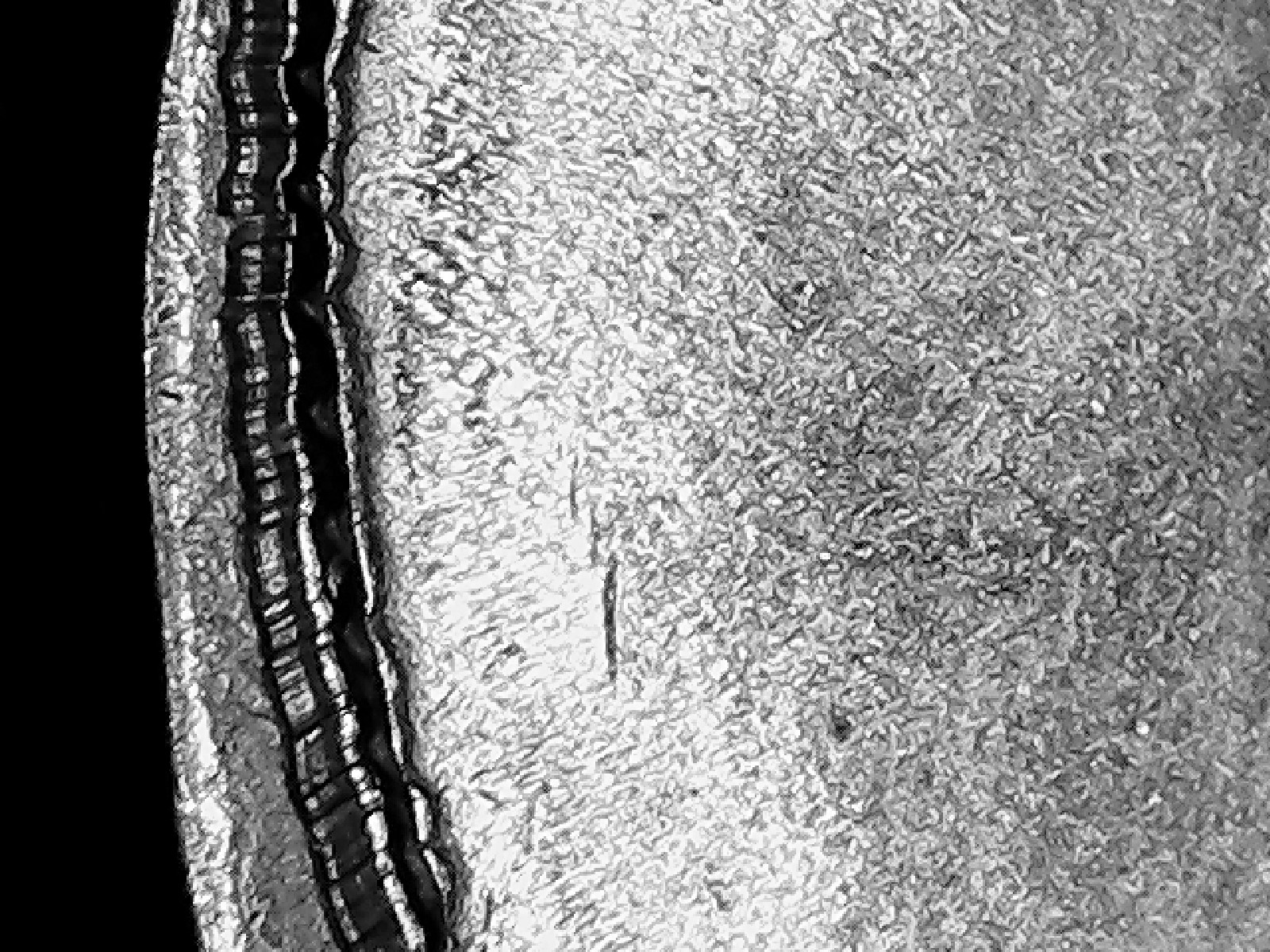

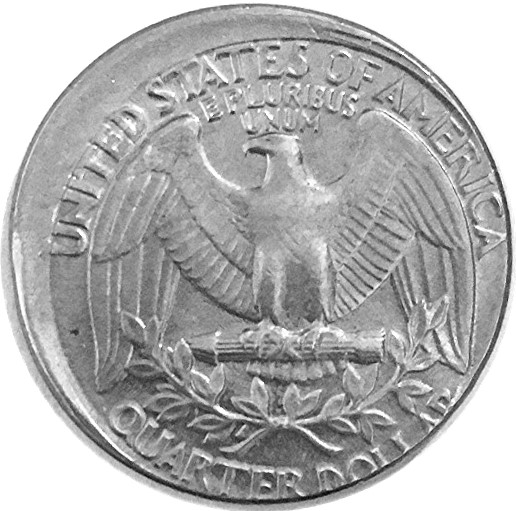

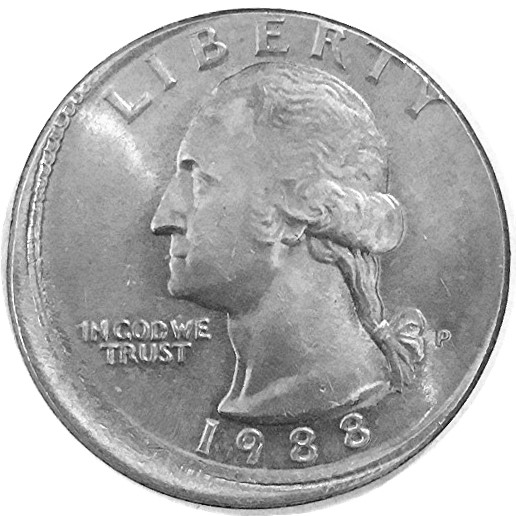

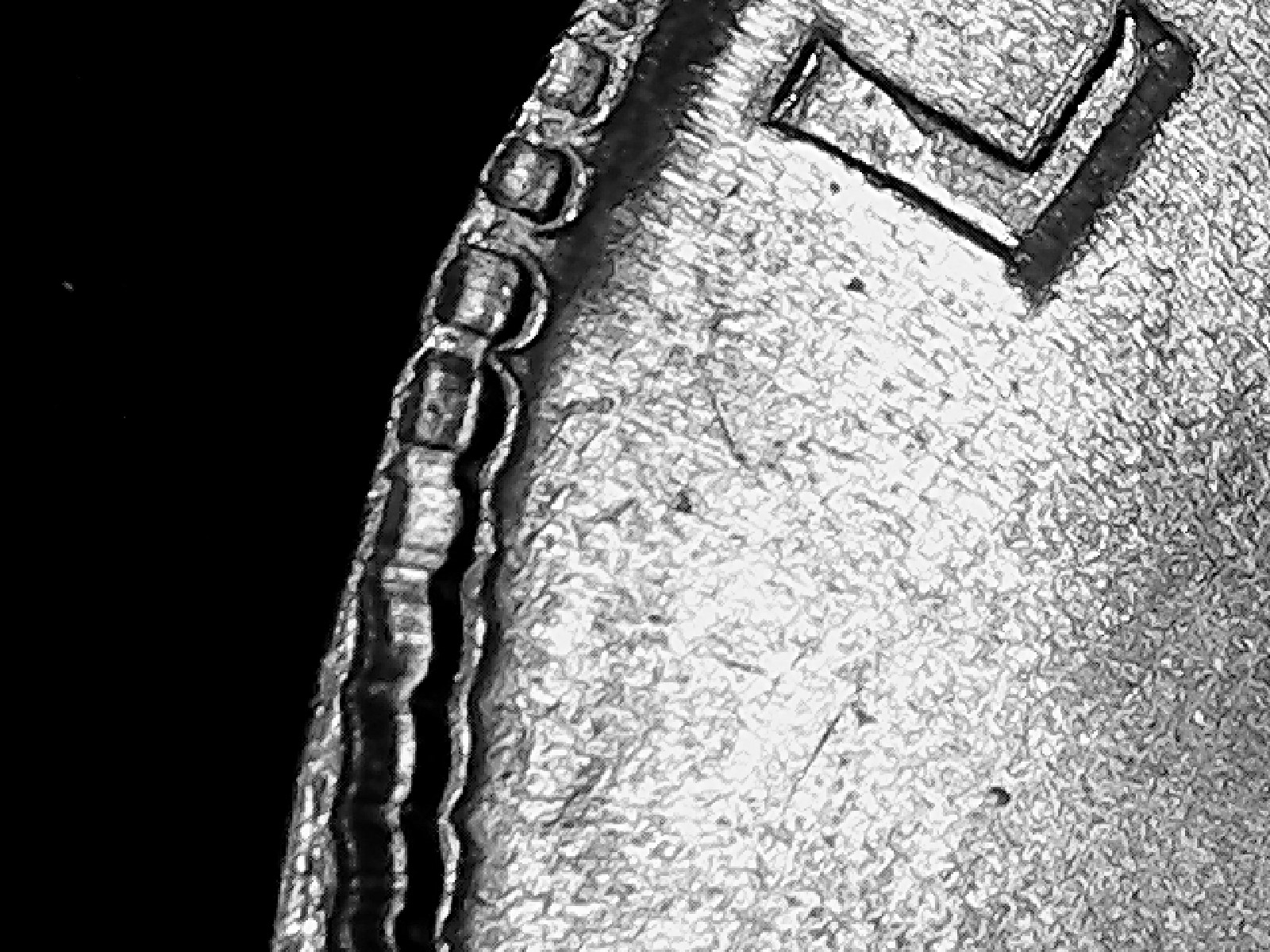

    OBV.jpg REV.1.jpg Still1395.1.jpg Still1396.1.jpg Still1397.1.jpg Still1398.1.jpg Still1399.1.jpg Still1400.1.jpg Still1401.1.jpg Still1402.1.jpg

  2. Avatar

    Guest User Guest



    to hide this ad.
  3. Pete Apple

    Pete Apple Well-Known Member

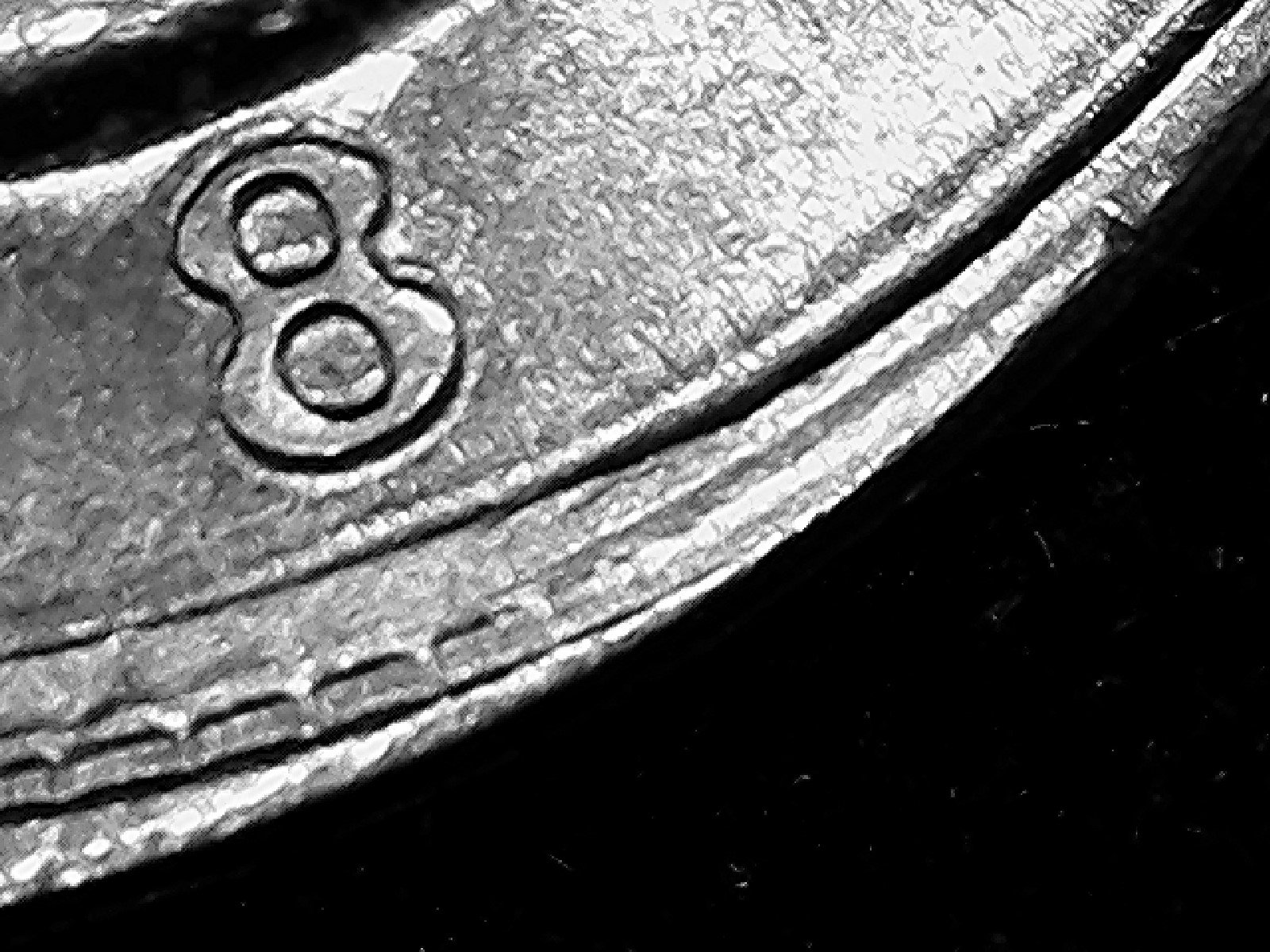

    Additional photos

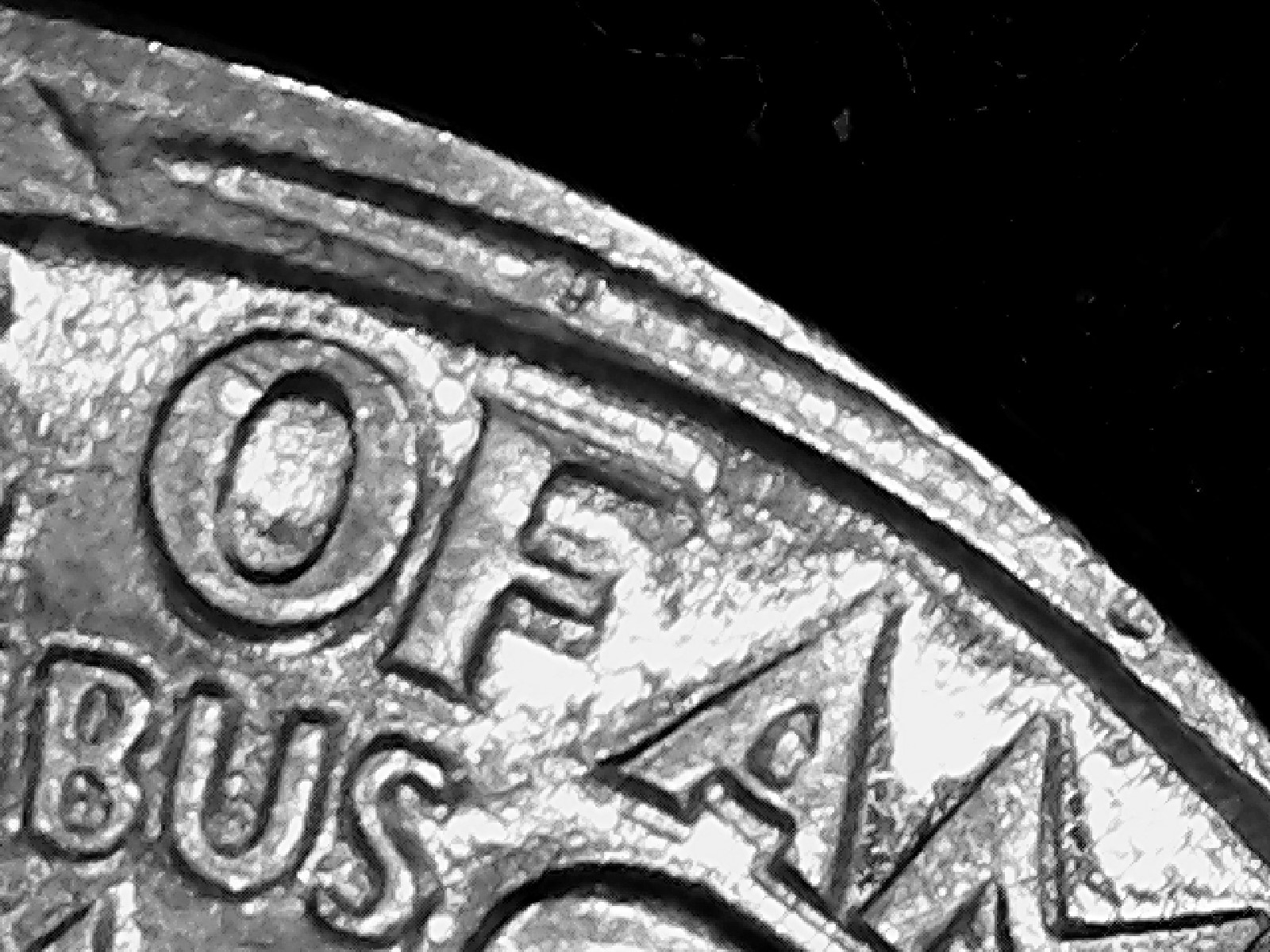

    Still1401.1.jpg Still1402.1.jpg Still1403.1.jpg

  4. Pete Apple

    Pete Apple Well-Known Member

  5. paddyman98

    paddyman98 Let me burst your bubble! Supporter

    Collar Clash.

  6. cpm9ball

    cpm9ball CANNOT RE-MEMBER

  7. Pete Apple

    Pete Apple Well-Known Member

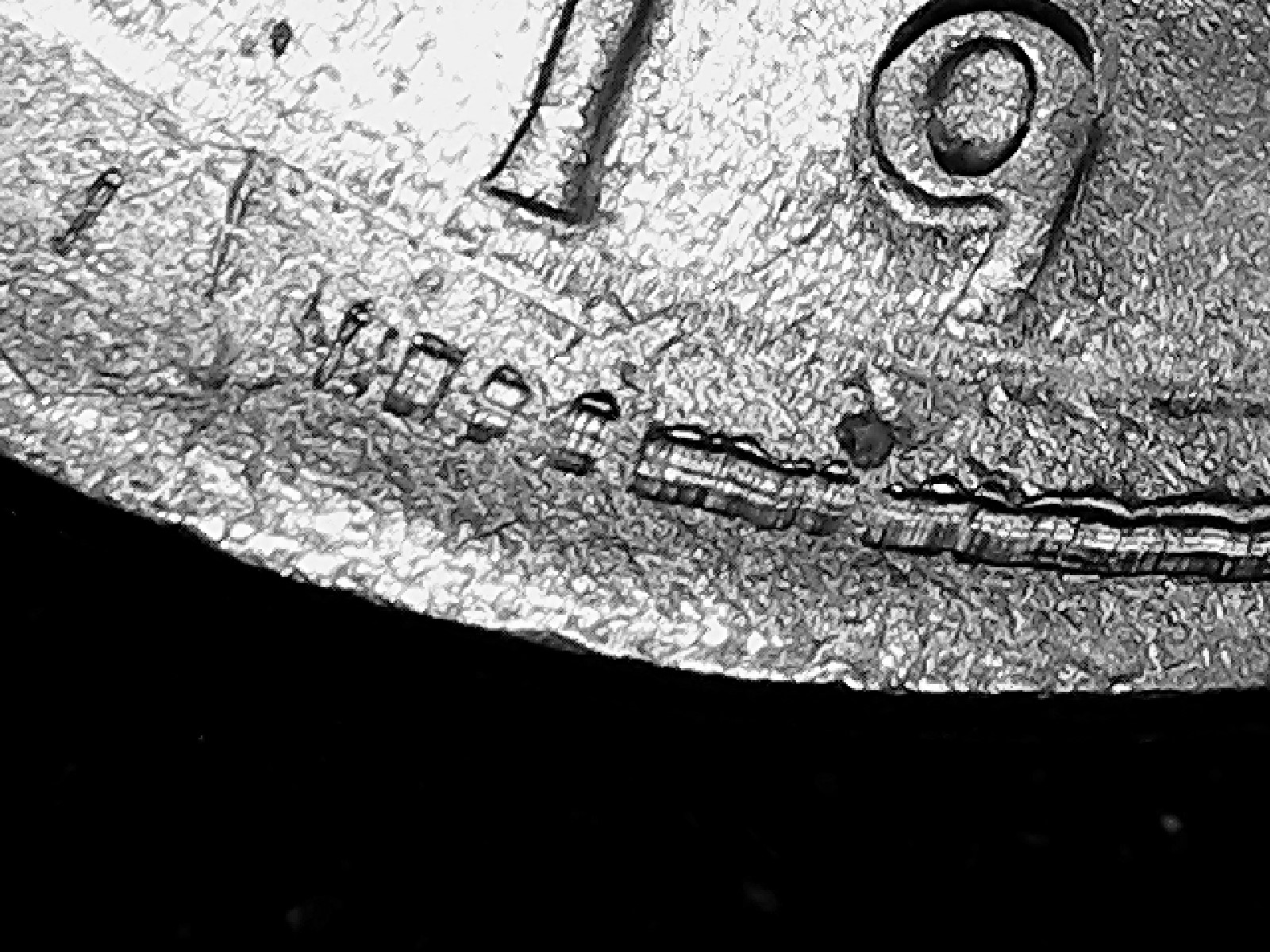

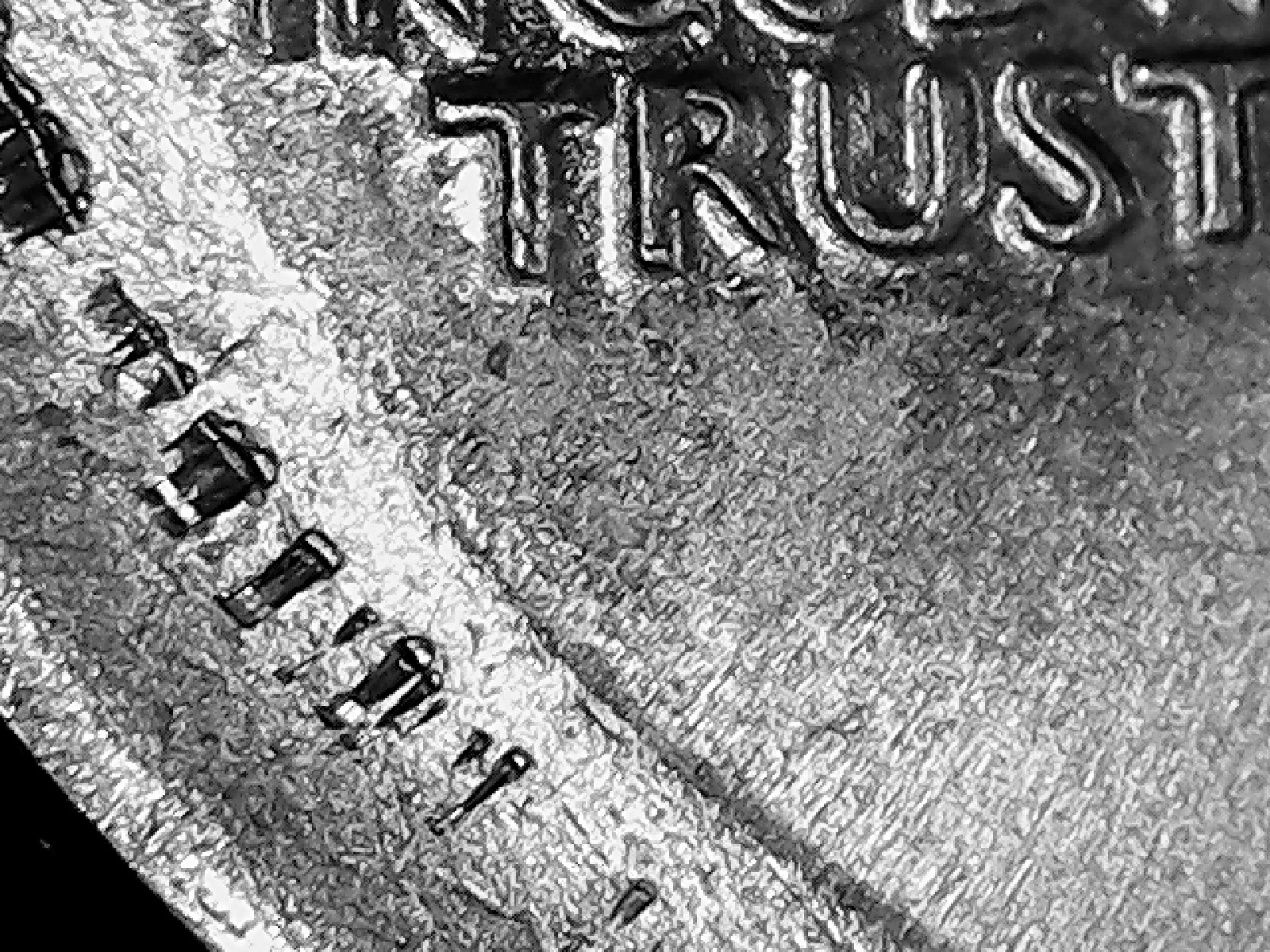

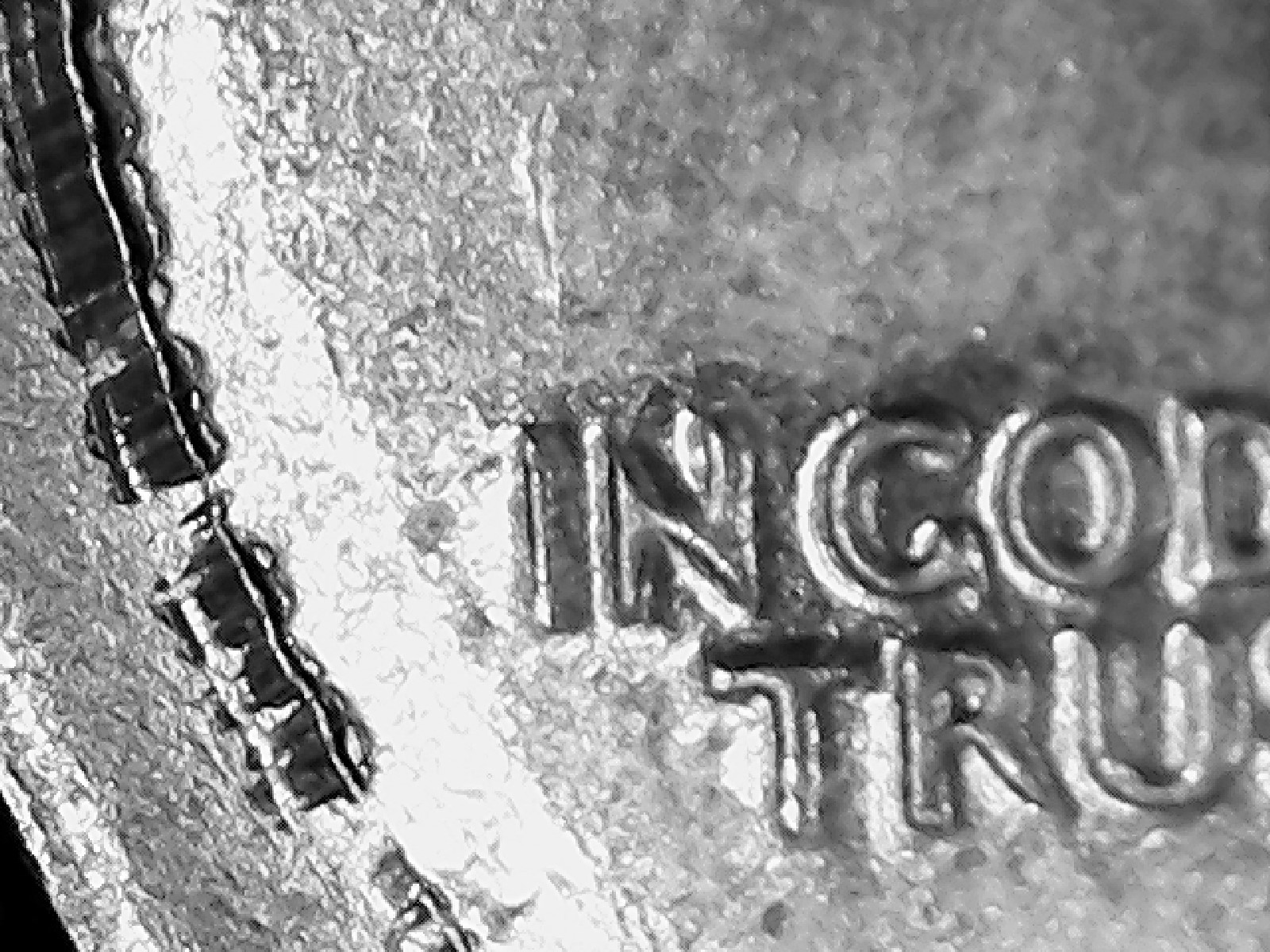

    What I do not understand is how a clash can show on an unstruck portion of a planchet? (From left of IGWT to below the Date).

  8. Pete Apple

    Pete Apple Well-Known Member

    Mike says it is a Collar Clash. As I said earlier: What I do not understand is how a clash can show on an unstruck portion of a planchet? (From left of IGWT to below the Date).

    JCro57 likes this.
  9. cpm9ball

    cpm9ball CANNOT RE-MEMBER

    Let's suppose that a collar clash occurred at some point in time before the broadstrike. Wouldn't it seem possible that the clash could show on that part of a new planchet?

    Or, am I missing your point entirely?

    Chris

  10. Pete Apple

    Pete Apple Well-Known Member

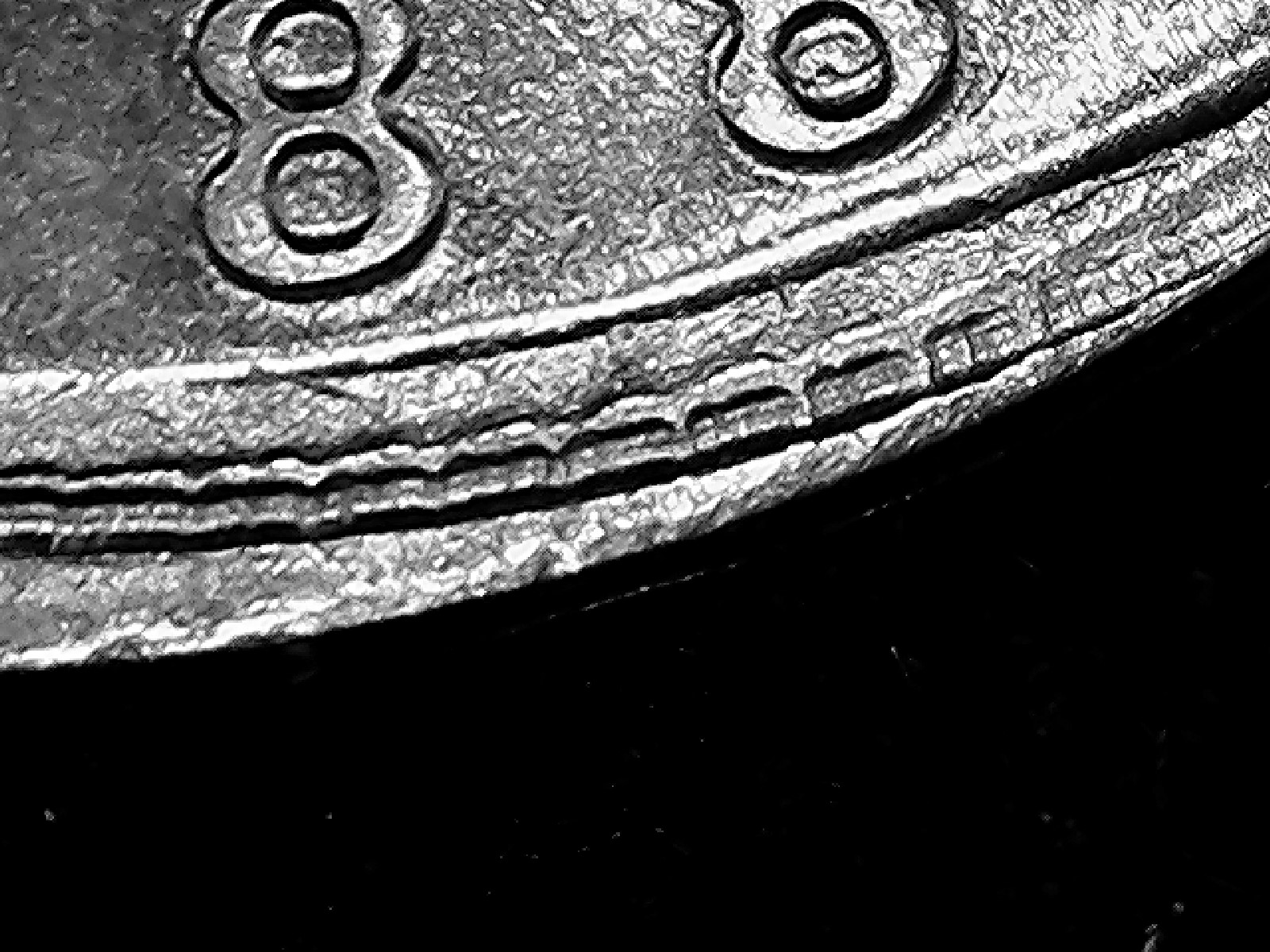

    Thanks for thinking with me! Not sure I understand what you are saying. Since the clash is a feature on the die, it seems to me that it will show on the planchet in whatever portion of the planchet the die strikes - which it does on this coin from L to just before IGWT. Since the die did not strike the portion of the planchet from outside of IGWT around to the date, how can the clash show in that area? ? It seems especially clear that below the 88 the clash is outside the design rim itself. What am I missing?

    Last edited: Oct 21, 2019
  11. cpm9ball

    cpm9ball CANNOT RE-MEMBER

    But in a normal strike, the die usually does strike the planchet outside of IGWT all the way to the position where the upset rim would normally be. Doesn't it?

    Chris

  12. Pete Apple

    Pete Apple Well-Known Member

    I am wondering if my question might be answered by something similar to this?

    http://www.error-ref.com/slide-zone-ghost-elements/

    The problem with this possibility is that I do not see evidence of a "Slide", except perhaps on a few of the reed marks.

    Last edited: Oct 21, 2019
  13. Pete Apple

    Pete Apple Well-Known Member

    I now have Mike Diamond's answer!

    Mike Diamond: “the irregularities seen on the 1988 quarter appear at the edge of the field. Here the damaged die sunk into the planchet while, at the same time, the planchet expanded radially, dragging the coin metal across the "teeth" that were gouged into the die neck.”

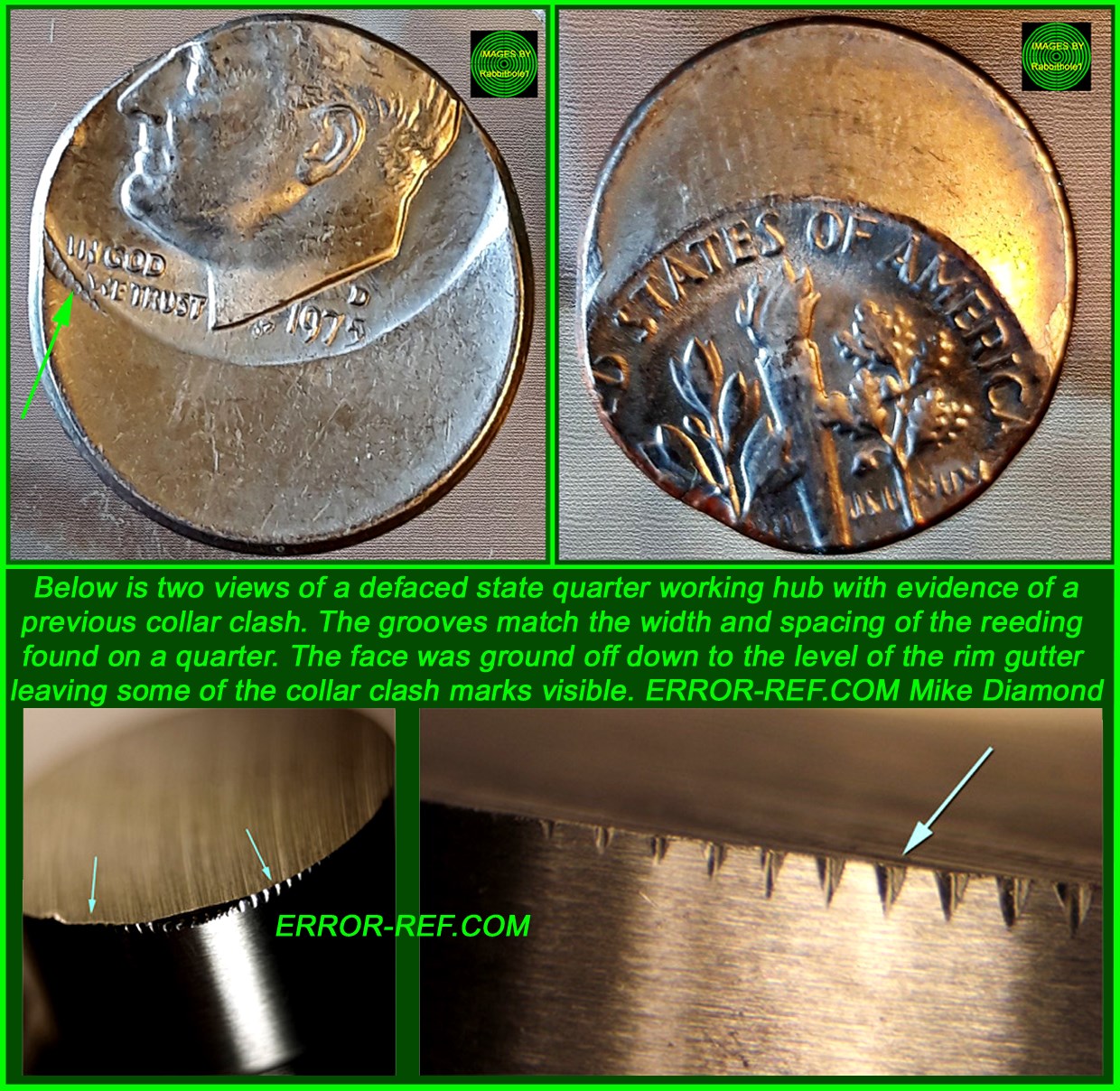

    The teeth on the die he is referencing are illustrated here:

    Collar clash on Die.jpg

  14. Collecting Nut

    Collecting Nut Borderline Hoarder

    It's a Mint error! Congrats on your find!

  15. Cheech9712

    Cheech9712 Every thing is a guess

    Great stuff Pete. Thanks

  16. Cheech9712

    Cheech9712 Every thing is a guess

    Going to let this one go. I'm lost
